1
Engine displacement
850
2
Year
2023
3
Trim
PATRIOT BOOST RMK KHAOS SLASH 155
4
Parts Catalog
SHOCK, IFS, VELOCITY
5
Parts Diagram
Parts Catalog
SUSPENSION, REAR SHOCK TRACK, VELOCITY
by
SUSPENSION, CONTROL ARMS, and SPINDLE

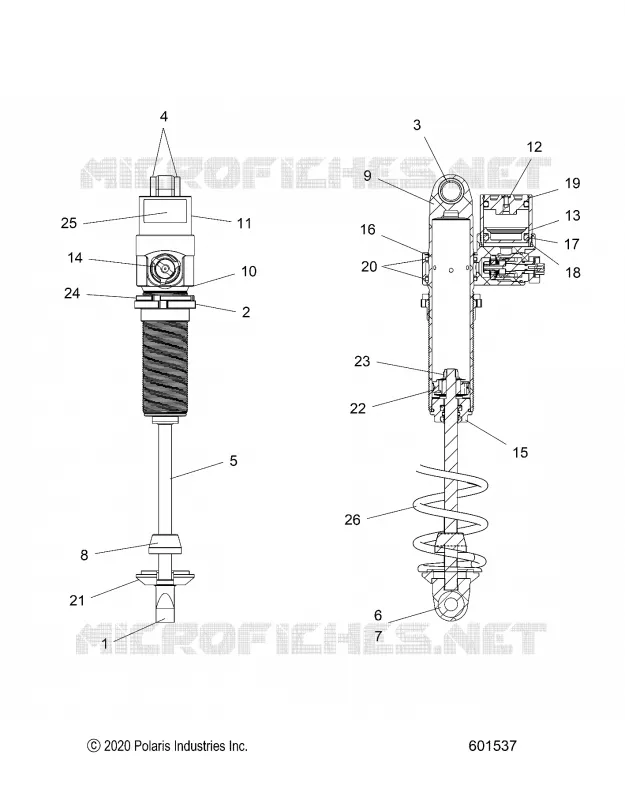

SHOCK, IFS, VELOCITY
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
14
14
14
14
15
16
17
18
19
20
21
22
23
24
25
26
-
SHOCK-IFS WE VELOCITY [INCL. 1-25]
7045529
$1 275,74 Unit Price incl. VAT
1
LOOP SHAFT BLK
1801054
$204,74 Unit Price incl. VAT
2
RETAINER SPRING
1800046
$68,24 Unit Price incl. VAT
3
SLEEVE
1800405
$62,99 Unit Price incl. VAT
4
BUSHING
1800406
$9,44 Unit Price incl. VAT
5
SHAFT-.50X8.580L
1801055
$414,74 Unit Price incl. VAT
6
BEARING END
1800040
$152,24 Unit Price incl. VAT
7
SNAP RING END BEARING
1800041
$15,74 Unit Price incl. VAT
8
BUMPER
1800462
$68,24 Unit Price incl. VAT
9
BODY
1801056
$430,49 Unit Price incl. VAT
10
BRIDGE
1801057
$577,49 Unit Price incl. VAT
11
BODY-RES.
1801058
$136,49 Unit Price incl. VAT
12
ASM-END CAP 2.0
1801006
$178,49 Unit Price incl. VAT
13
PISTON
1800798
$152,24 Unit Price incl. VAT
14
SCREW-SET #3-48
1800736
$11,54 Unit Price incl. VAT
14
KNOB-HS TRI GRIP RED
1800737
$120,74 Unit Price incl. VAT
14
ADJUSTER-HS-LS W/KNOB [ADJUSTER ASM.]
1801059
$661,49 Unit Price incl. VAT
14
O-RING 2.0X24.5MM [ADJUSTER SEAL]
1800680
$9,44 Unit Price incl. VAT
14
KNOB-LS DOUBLE GRIP BLK
1800735
$83,99 Unit Price incl. VAT
14
SCREW-4-40X.375 SS
1800738
$2,09 Unit Price incl. VAT
15
ASM-SEAL HEAD 1.75# .50 SHAFT
1801060
$257,24 Unit Price incl. VAT
16
RING-RETAINING 1.75# EXT.
1801061
$26,24 Unit Price incl. VAT
17
O-RING
1800184
$10,49 Unit Price incl. VAT
18
O-RING 2-134
1800502
$3,66 Unit Price incl. VAT
19
RETAINING RING WIRE 0.0625 X 1.750ID
1800795
$15,74 Unit Price incl. VAT
20
O-RING-BUNA 2-224
1801028
$9,44 Unit Price incl. VAT
21
RETAINER-SPRING BLK
1800900
$73,49 Unit Price incl. VAT
22
ASM-PISTON 7045529
1801183
$204,74 Unit Price incl. VAT
23
NUT CRIMP
1800031
$7,34 Unit Price incl. VAT
24
NUT-JAM BLK
1801198
$41,99 Unit Price incl. VAT
25
WRENCH-8MMX10MM OPEN END
Not Available
26
SPRG-CMP.280X10.59 100# SLS MB
7044829458
$167,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
