1
Engine displacement
850
2
Year
2020
3
Trim
SCRAMBLER 850 48"
4
Parts Catalog

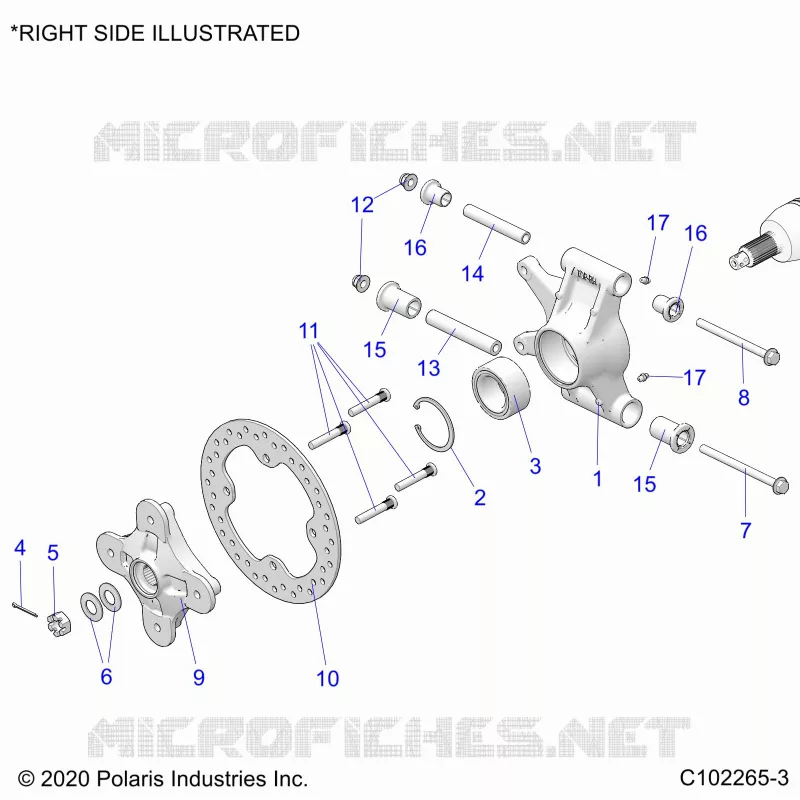

REAR SUSPENSION HUBS, CARRIER AND BRAKE DISC
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION HUB, KNUCKLE AND BRAKE DISC
by
STEERING, STEERING TIE RODS
REAR SUSPENSION HUBS, CARRIER AND BRAKE DISC
17
17
1
CARRIER BEARING LH
5136689
5143607
$121,79 Unit Price incl. VAT
1
CARRIER BEARING RH
5136690
5143608
$121,79 Unit Price incl. VAT
2
RING-RETAINING 2.875 INTERNAL
7710440
$18,89 Unit Price incl. VAT
3
BEARING-BALL SEALED 44X72X33.1
3514699
$73,49 Unit Price incl. VAT
4
PIN-COTTER 1/8X1 1/2-Y
7661404
$9,44 Unit Price incl. VAT
5
NUT-CASTLE M18X1.5X13
7547406
$9,44 Unit Price incl. VAT
6
WASHER-CONE.755X1.5X.072-.107P [RRP99C]
7555796
$14,69 Unit Price incl. VAT
7
SCR-HXFL-M10X1.5X140 8.8 ZY3
7518467
$10,49 Unit Price incl. VAT
8
BOLT FLANGE
7518675
$10,49 Unit Price incl. VAT
9
HUB WHEEL
5136946
$178,49 Unit Price incl. VAT
10
DISC BRAKE
5250205
$141,74 Unit Price incl. VAT
11
STUD WHEEL
7518671
$3,14 Unit Price incl. VAT
12
NUT-M10X1.5 HXFLG NYLON INS
7547313
$2,09 Unit Price incl. VAT
13
SHAFT A-ARM LOWER CONTROL ARM [TO 8/2/2023]
5136473
5145086
$68,24 Unit Price incl. VAT
14
SHAFT PIVOT
5137590
$16,79 Unit Price incl. VAT
15
BUSHING LOWER CONTROL ARM
5437651
$12,59 Unit Price incl. VAT
16
BUSHING-STANDARD ORV
5439874
$4,19 Unit Price incl. VAT
16
ASM-BUSHING HD W/SEAL 5.23 FLG [OPTIONAL]
1543367
$19,94 Unit Price incl. VAT
17
FITTING-LUBRICATION 1/4-28
7080424
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
