SUSPENSION, FRONT STRUT FOR RANGER 570 NORDIC PRO ZUG / TRACTOR FROM 2024

REFERENCES, TOOL KIT AND OWNERS MANUALS -R24MAA57F1/MASC1/F1/C9/F9/CK (C730444)

REAR SUSPENSION

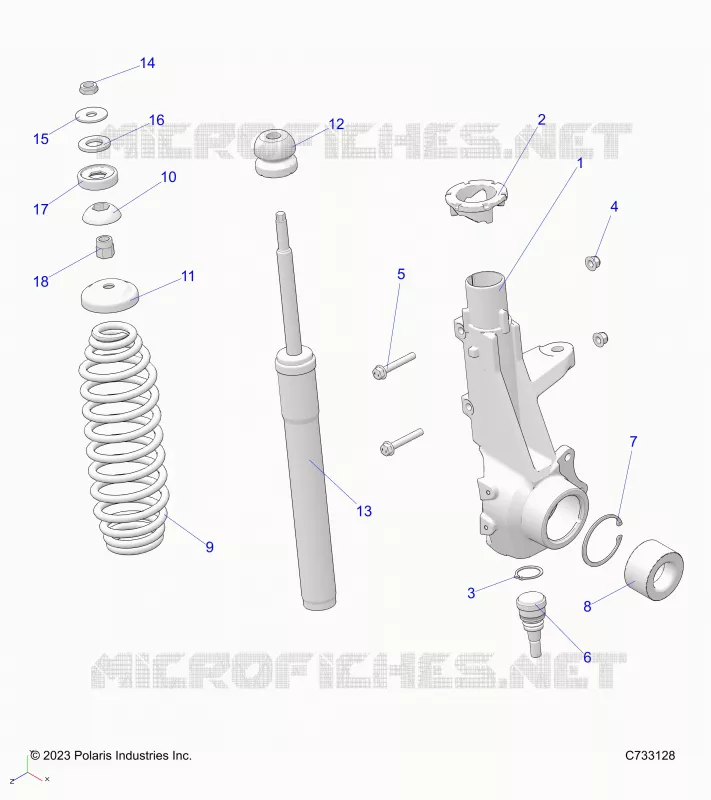

SUSPENSION, FRONT STRUT

1

SUPPORT-HUBSTRUT LH

5143795

$493,49 Unit Price incl. VAT

1

ASM-HUBSTRUT LH [INCL. 1 3 7 8 9]

1830061

$241,49 Unit Price incl. VAT

1

SUPPORT-HUBSTRUT RH

5143796

$493,49 Unit Price incl. VAT

1

ASM-HUBSTRUT RH [INCL. 1 3 7 8 9]

1830062

$241,49 Unit Price incl. VAT

2

RETAINER-SPRING ALUMN

5633698

$14,69 Unit Price incl. VAT

3

RING-RETAINER EXTERNAL 1.188

7710533

$4,19 Unit Price incl. VAT

4

SPACER-STRUT

1501212

$5,24 Unit Price incl. VAT

5

NUT- M8X1.25 FLG NYLOC-OLIVE D

7547332

$7,34 Unit Price incl. VAT

6

SCR-HXFL-M8X1.25X55 10.9 ZFB

752133255

$6,29 Unit Price incl. VAT

7

BALL-JOINT M12X1.50 TAPERED

7082538

$73,49 Unit Price incl. VAT

8

RING-RETAINING 2.500 INTERNAL

7710507

$4,19 Unit Price incl. VAT

9

BEARING-WHEEL 35X64X37MM HD

3515088

$108,14 Unit Price incl. VAT

10

SPRING-FRONT V.B [CK]

7045872689

Not Available

10

SPRING-FRONT M.BLK

7045872458

$167,99 Unit Price incl. VAT

11

PIVOT-BALL BOTTOM DELRIN

5432871

$19,94 Unit Price incl. VAT

12

RETAINER-SPRING UPPER

5144808

$62,99 Unit Price incl. VAT

13

BUMPER-MCU 17.8MM ID

5412665

$12,59 Unit Price incl. VAT

14

STRUT-FRONT

7044149

$225,74 Unit Price incl. VAT

15

NUT-1/2-20 NYLOK THIN HT-Y

7547104

$2,09 Unit Price incl. VAT

16

WSHR-.500X1.50-12GA-Y

7555749

$2,09 Unit Price incl. VAT

17

SPACER-RUBBER

5810291

$7,34 Unit Price incl. VAT

18

PIVOT-BALL TOP DELRIN

5432872

$19,94 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
