1
Engine displacement
850
2
Year
2013
3
Trim
sportsman-forest-850-a13zn8efkefn
4
Parts Catalog

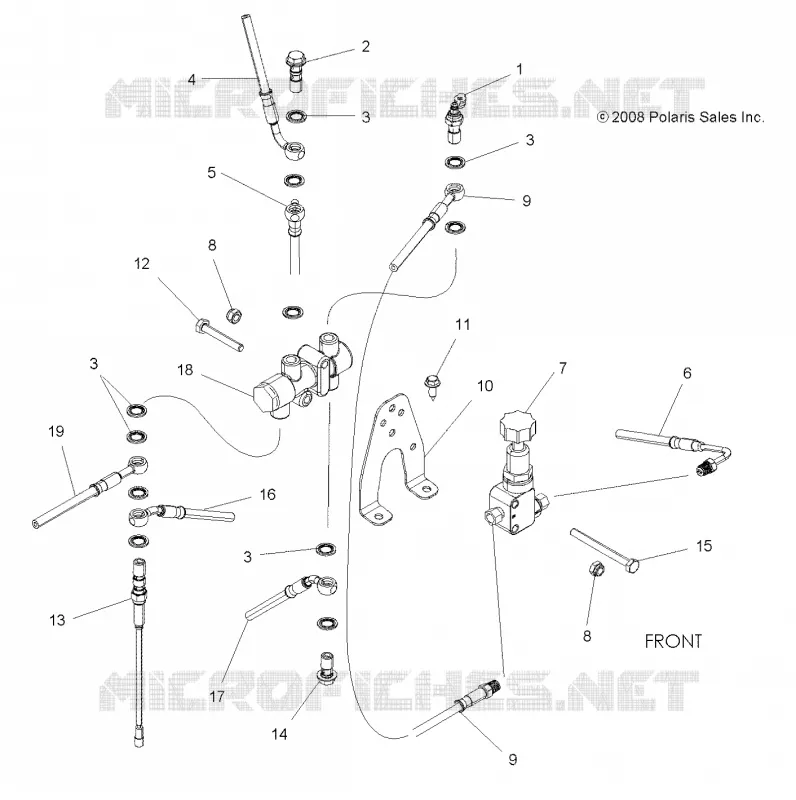

BRAKES, VALVE SYSTEM
5
Parts Diagram
Parts Catalog
REAR BRAKE CALIPER
by
CHASSIS, MAIN FRAME
BRAKES, VALVE SYSTEM
1
2
3
3
3
3
4
5
6
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Bolt Banjo w/Bleeder
1911112
$41,99 Unit Price incl. VAT
2
BOLT-DOUBLE BANJO M10X1.25
1911194
$41,99 Unit Price incl. VAT
3
SEAL-STAT-0-3/8 70EP
5413212
$9,44 Unit Price incl. VAT
4
LIne Hand to Dist.
1911452
Not Available
5
Line Brake Rear Aux.
1911659
Not Available
6
Line Brake Rear Service
1911660
Not Available
7
VALVE-REDUCING BRAKE
1911109
$278,24 Unit Price incl. VAT
8
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
9
LINE-BRAKE J/B TO P/VALVE NPT
1911200
$83,99 Unit Price incl. VAT
10
Bracket Junction Block
5252667
$73,49 Unit Price incl. VAT
11
SCR-TFHFL M6X1.0X15 CHS ZOD
7518513
$9,44 Unit Price incl. VAT
12
SCR-HH-1/4-20X1.75 GR5 ZY3
7512130
$7,34 Unit Price incl. VAT
13
Switch Double Banjo
4012484
Not Available
14
BOLT-BANJO 10MM X 1.25-6G
1910958
$14,69 Unit Price incl. VAT
15
SCR-HH-1/4-20X2.75 GR5 ZY3
7517451
$10,49 Unit Price incl. VAT
16
Line Front Left
1911454
$120,74 Unit Price incl. VAT
17
Line Foot to Dist.
1911453
Not Available
18
Block Distribution Brake Long Piston
1911185
1913923
$125,99 Unit Price incl. VAT
19
Line Front Right
1911455
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
