1
Engine displacement
500
2
Year
2006
3
Trim
PREDATOR 500 - A06GJ50AA
4
Parts Catalog
ELECTRICAL
5

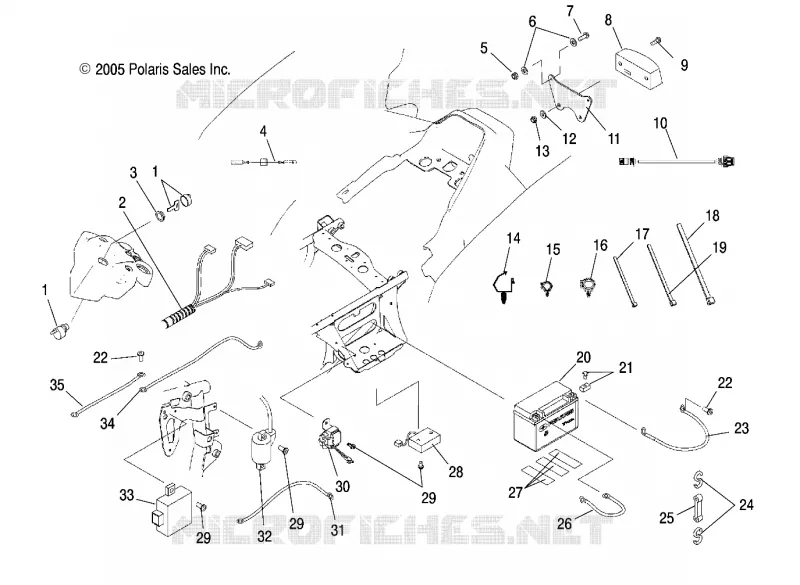

Parts Diagram
Parts Catalog
AIR INTAKE
by
FRONT SHOCK
ELECTRICAL
1
1
1
1
2
2
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
29
29
30
31
32
33
34
35
1
2
2
3
1
SWITCH IGNITION (Incl. Key)
4110264
4012163
$204,74 Unit Price incl. VAT
1
BLANK KEY SERIES 2000 2100 6700 6800 [NOTE:YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY]
4010278
4083605
$27,29 Unit Price incl. VAT
2
Harness Main
2410527
Not Available
2
Circuit Breaker 20 AMP
2410323
$125,99 Unit Price incl. VAT
2
Breaker Circuit 10 AMP
2410394
Not Available
2
LINK-FUSIBLE 0.5mm sq. X 160mm LONG (GY)
2202147
$125,99 Unit Price incl. VAT
3
NUT-IGNITION SWITCH HOBBS
5433733
$41,99 Unit Price incl. VAT
4
DIODE-100858 6 AMP SILICON
4010781
$73,49 Unit Price incl. VAT
5
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
6
WASHER
7556034
$4,19 Unit Price incl. VAT
7
SCR-#10-24-5/8-PN/TORX-M
7512027
$2,09 Unit Price incl. VAT
8
Asm. Taillight
2410572
Not Available
9
Screw
7518432
Not Available
10
Wire Taillight LED
2410596
Not Available
11
Mount Taillight
5812681
$73,49 Unit Price incl. VAT
12
WSHR-11/64X3/8X1/32-Y
7555727
$1,04 Unit Price incl. VAT
13
NUT-8-32 NYL-Y
7547004
$9,44 Unit Price incl. VAT
14
CLIP ROUTING
7670109
$4,19 Unit Price incl. VAT
15
CLIP ROSEBUD
4020139
$9,44 Unit Price incl. VAT
16
Clip Rosebud
4020149
$12,59 Unit Price incl. VAT
17
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
18
CABLE-TIE 10-102MM WEATH.-RES.
7080761
$5,24 Unit Price incl. VAT
19
CABLE-TIE 25-76MM WEATH.-RES.
7080492
$5,24 Unit Price incl. VAT
20
BATTERY-SEALED 9AH 12V YTX9-BS
4010678
$146,99 Unit Price incl. VAT
21
KIT BATTERY BOLT [INCL. BOLTS NUTS]
2202213
$6,29 Unit Price incl. VAT
22
SCR-1/4-20X3/4 TR/TX/TAP-Y
7515199
$2,09 Unit Price incl. VAT
23
Cable Ground
4011169
Not Available
24
Hook Strap Battery
7081123
$12,59 Unit Price incl. VAT
25
STRAP RUBBER [DOES NOT INCL. D-HOOK]
5410608
5419141
$16,58 Unit Price incl. VAT
26
Cable Battery/Solenoid Red
4010884
Not Available
27
PAD
5810317
Not Available
28
Rectifier Regulator
4010654
$398,99 Unit Price incl. VAT
29
SCR-10-24X3/4 PH/TX/TRI-SEMS Y
7518196
$2,09 Unit Price incl. VAT
30
Switch Magnetic
4011087
Not Available
31
CABLE-21# SOL/START RED
4010093
$89,24 Unit Price incl. VAT
32
Asm. Coil Ignition
3089266
Not Available
33
Asm. CDI System
3089613
Not Available
34
Cable Ground 13.75 Inch
4011170
$14,58 Unit Price incl. VAT
35
Cable Ground
4010926
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
