1
Engine displacement
800
2
Year
2015
3
Trim
800-switchback-assault
4
Parts Catalog
CHASSIS, CHASSIS ASM. AND OVER STRUCTURE
5
Parts Diagram
Parts Catalog
CHASSIS, BULKHEAD ASM.
by
ENGINE, THROTTLE CONTROL ASM.

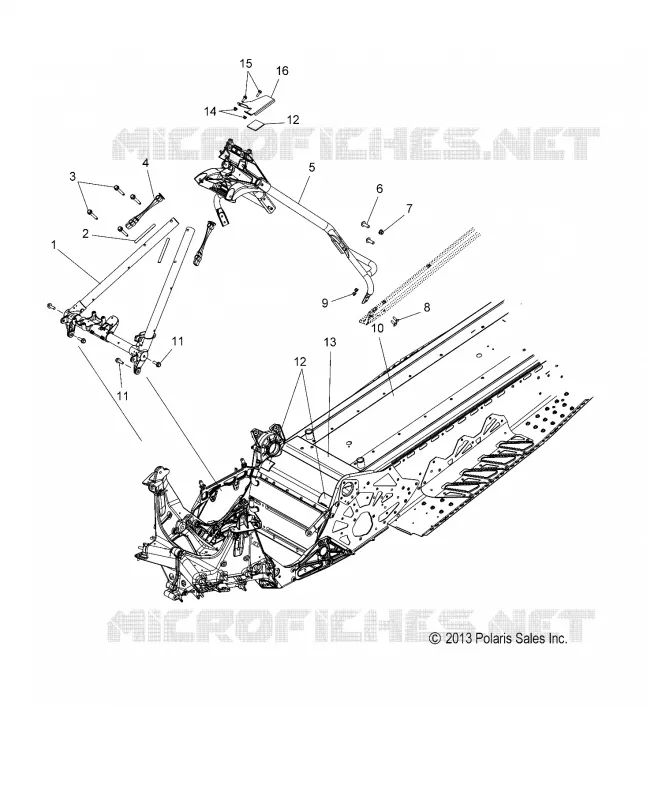

CHASSIS, CHASSIS ASM. AND OVER STRUCTURE
1
2
3
4
5
6
7
8
9
10
10
10
10
10
10
10
10
11
11
12
12
13
14
15
16
1
ASM. FRAME TUBULAR FRONT
1019548
$593,24 Unit Price incl. VAT
2
SEAL-BULB 350CM [BULK SVC]
5521697350
$73,49 Unit Price incl. VAT
3
SCR-HXFL-M8X1.25X50 DP ZODP30
7519245
$7,34 Unit Price incl. VAT
4
SPACER TUBE CAST
5632200
$26,24 Unit Price incl. VAT
5
ASM. FRAME TUBULAR REAR
1017701
$1 380,74 Unit Price incl. VAT
6
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$6,29 Unit Price incl. VAT
7
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
8
SCR-RHCAR-M6X1.0X22 8.8 ZPC
7519338
$6,29 Unit Price incl. VAT
9
NUT-HXFL-M6X1.0 8 ZC NYL
7547487
$4,19 Unit Price incl. VAT
10
KIT CHASSIS 144 INCH SVC NATURAL [INCL. BULKHEAD]
2205106309
Not Available
10
ASM. TUNNEL 144 INCH SVC MATTE BLACK [INCL. TUNNEL COOLER]
1019587458
$2 511,59 Unit Price incl. VAT
10
ASM. TUNNEL 144 INCH SVC NATURAL [INCL. TUNNEL COOLER]
1019587309
$2 511,59 Unit Price incl. VAT
10
KIT CHASSIS 144 INCH MATTE BLACK [INCL. BULKHEAD]
2205106458
Not Available
10
ASM. TUNNEL 144 INCH SVC BLK/RED [INCL. TUNNEL COOLER]
10195871375
$2 511,59 Unit Price incl. VAT
10
KIT CHASSIS 144 INCH SVC BLK/RED [INCL. BULKHEAD]
22051061375
Not Available
10
KIT CHASSIS 144 INCH SVC WHITE [INCL. BULKHEAD]
2205106599
Not Available
10
ASM. TUNNEL 144 INCH SVC WHITE [INCL. TUNNEL COOLER]
1019587599
$2 511,59 Unit Price incl. VAT
11
SCR-HXFL-M8X1.25X25 8.8 ZODP30
7519243
$7,34 Unit Price incl. VAT
12
PAD 5X5 CM
5813593
$8,39 Unit Price incl. VAT
13
PAD 7.6X41CM
5813752
$10,49 Unit Price incl. VAT
14
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
15
SCR-HXFL-M6X1.0X20 8.8 ZOD NYL
7518613
$7,34 Unit Price incl. VAT
16
BRKT. FUEL TANK
5254367
$52,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
