SPORTSMAN X2 500 EFI QUAD - A09TN50EA
4
Parts Catalog
COOLING SYSTEM
5

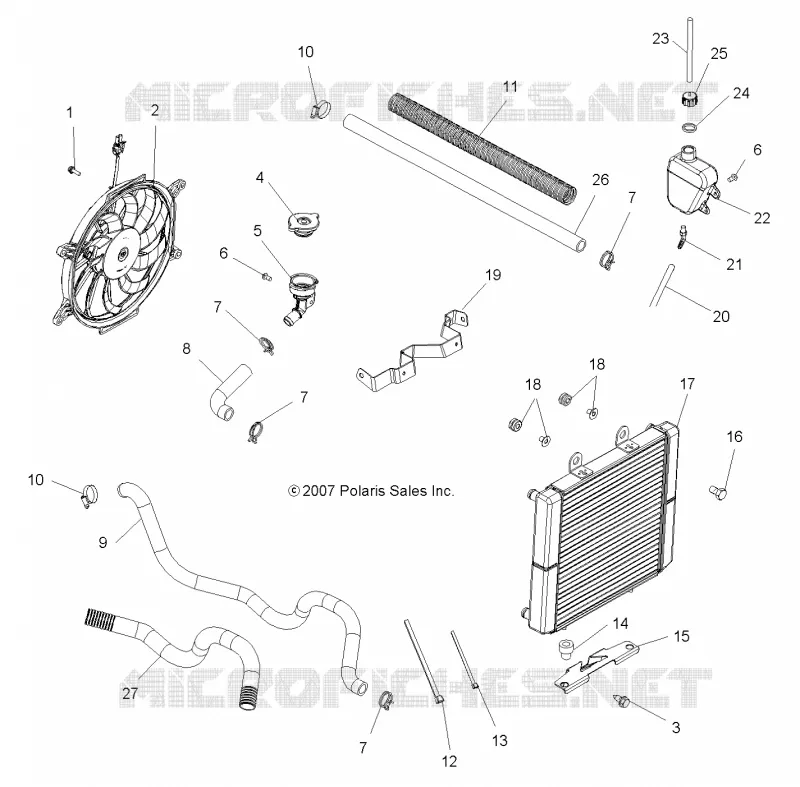

Parts Diagram
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
by
CRANKCASE
COOLING SYSTEM
1
2
3
4
5
6
6
7
7
7
7
7
7
7
7
8
8
9
9
10
10
11
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
26
27
27
1
1
2
2
3
4
5
6
6
6
6
6
7
8
9
10
10
11
12
13
14
15
15
16
17
1
2
3
4
4
5
6
7
7
8
9
9
10
11
12
13
13
14
15
15
16
17
1
Screw
7517975
$10,49 Unit Price incl. VAT
2
Asm. Fan and Motor
2410383
$303,96 Unit Price incl. VAT
3
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
4
Cap Pressure
1240044
1240508
$89,24 Unit Price incl. VAT
5
FILLER NECK RADIATOR
5412402
$52,49 Unit Price incl. VAT
6
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
7
Clamp Roto Clip
7080826
$9,44 Unit Price incl. VAT
7
SPRINGBAND-CLAMP 27/12 GREEN
7080841
$13,64 Unit Price incl. VAT
8
Hose Filler Neck [Built 2/03/09 and After]
5413677
Not Available
8
Hose Filler Neck
5412405
Not Available
9
Hose Engine Lower [Built 2/03/09 and After]
5413679
Not Available
9
Hose Engine Lower
5412860
Not Available
10
CLAMP HOSE 1.25 WORM DRIVE
7080696
$10,49 Unit Price incl. VAT
11
Guard Hose
5521550
$19,94 Unit Price incl. VAT
11
Conduit Flex [Built 2/03/09 and After]
552179351
$19,94 Unit Price incl. VAT
12
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
13
CABLE-TIE 25-76MM WEATH.-RES.
7080492
$5,24 Unit Price incl. VAT
14
BUSHING-MOUNT LOWER RADIATOR
5410584
$10,49 Unit Price incl. VAT
15
Bracket Radiator Lower
5247047067
$115,49 Unit Price incl. VAT
16
SCR-1/4-20X1 HX/WH/TAP/R GR5-Y
7515179
$4,19 Unit Price incl. VAT
17
Radiator [If built after 9/18/06]
1240305
1241477
$834,74 Unit Price incl. VAT
18
Asm. Grommet and Insert
5411975
$6,29 Unit Price incl. VAT
19
Bracket Radiator Upper
5250769
Not Available
20
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
21
FITTING-1/8-27 BARBED 90 DEG
7052065
$13,64 Unit Price incl. VAT
22
TANK-SURGE
5436936
$152,24 Unit Price incl. VAT
23
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
24
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
25
CAP OVER FLOW BOTTLE W/FITTING
5437635
$9,44 Unit Price incl. VAT
26
Hose [Built 2/03/09 and After]
5413678
Not Available
26
Hose Engine Upper
5412859
Not Available
27
Guard Hose Plastic 20 in. [If built after 9/18/06]
5521748
$18,57 Unit Price incl. VAT
27
Conduit Flex [Built 2/03/09 and After]
552179351
$19,94 Unit Price incl. VAT
