ELECTRICAL/TAILLIGHT FOR XPLORER 400 - A99CG38CA FROM 1999

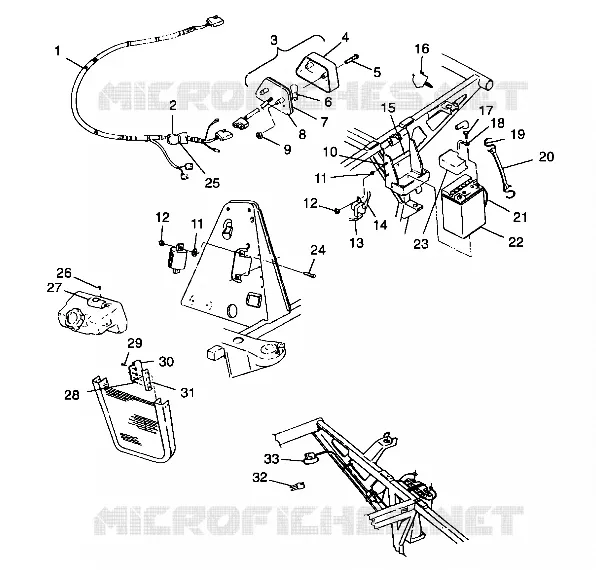

ELECTRICAL/TAILLIGHT

1

HARNESS-MAIN CONNECTOR XPL400

2460704

Not Available

2

Kit Breaker Circuit 20 AMP

2200593

$125,99 Unit Price incl. VAT

3

ASM. TAILLIGHT [INCL. LENS AND SCREW]

2432034

$104,99 Unit Price incl. VAT

4

LENS-TAILLIGHT

4032046

$62,99 Unit Price incl. VAT

5

SCREW-TAILLIGHT

4032029

$9,44 Unit Price incl. VAT

6

BULB TAILLIGHT

4030043

$12,59 Unit Price incl. VAT

7

GASKET TAILLIGHT

4032045

$7,34 Unit Price incl. VAT

8

Backing Taillight/Brakelight

4032064

$152,24 Unit Price incl. VAT

9

SPEED NUT-WASHER HEAD-1/4

7670054

$2,09 Unit Price incl. VAT

10

SCR-#10-24-5/8-PN/TORX-M

7512027

$2,09 Unit Price incl. VAT

11

WASHER-.197X.50 INT/EXT LK-Y

7571602

$9,44 Unit Price incl. VAT

12

NUT-NYLOC 10-24 Y

7541925

$1,56 Unit Price incl. VAT

13

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

14

Cable Battery/Solenoid

4010094

Not Available

15

PAD-BATTERY NOT SHOWN

5810290

$13,64 Unit Price incl. VAT

16

CLIP ROUTING

7670109

$4,19 Unit Price incl. VAT

17

BOLT BATT KIT(SHORT) (Short) (Not Shown)

2200361

Not Available

18

Cable Battery/Engine

4010095

Not Available

19

Hook Strap Battery

7010032

$3,14 Unit Price incl. VAT

20

STRAP BATTERY HOLDDOWN

5410424

$9,44 Unit Price incl. VAT

21

TUBE-BATTERY VENT 650 MM [NOT ILLUSTRATED]

5432077

$16,79 Unit Price incl. VAT

22

BATTERY 14 AMP [FROM 8/17/2020]

4140006

$136,49 Unit Price incl. VAT

23

Cover Battery

5431769

$29,39 Unit Price incl. VAT

24

BOLT

7512007

$7,34 Unit Price incl. VAT

25

CABLE-TIE DIA12-50MM WTHR-RES.

7080138

$5,24 Unit Price incl. VAT

26

SCREW

7511864

$9,44 Unit Price incl. VAT

27

BRACKET-CDI

5241416

$9,23 Unit Price incl. VAT

28

SCR-#10-24X3/4 PN/TR RD-TORX-Y (taillight) [S57C1 C9]

7512018

$6,29 Unit Price incl. VAT

29

SCREW(10)

7512017

$9,44 Unit Price incl. VAT

30

RECTIFIER/REGULATOR LR-35

4060191

Not Available

31

HEATSINK RECT.

5131818

Not Available

32

PIGTAIL POWER

2460442

$19,83 Unit Price incl. VAT

33

Plug Power

2410022

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
