Engine displacement
500
2
Year
2009
3
Trim
SPORTSMAN X2 500 EFI QUAD - A09TN50EA
4
Parts Catalog
REAR BRAKE BRAKE LINES
5

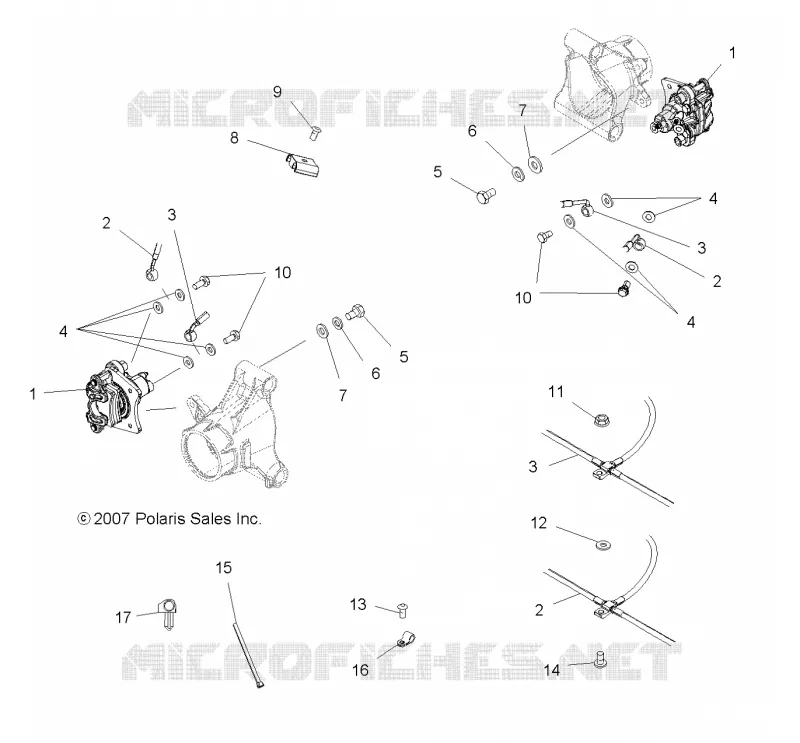

Parts Diagram
Parts Catalog
FRONT BRAKE CALIPER
by
DRIVE TRAIN, FRONT GEARCASE AND MOUNTING
REAR BRAKE BRAKE LINES
1
1
2
2
2
3
3
3
4
4
4
5
5
6
6
7
7
8
9
10
10
11
12
13
14
15
16
17
1
Asm. Caliper
1911179
Not Available
2
Line Rear
1911105
Not Available
3
Line Brake Rear Aux.
1911344
Not Available
4
SEAL-STAT-0-3/8 70EP
5413212
$9,44 Unit Price incl. VAT
5
SCREW CAP(10) [CALIPER MOUNTING]
7512365
$2,09 Unit Price incl. VAT
6
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
7
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
8
CLIP-RETAINING DUAL .250# LINE
7670126
$9,44 Unit Price incl. VAT
9
SCR-#10-24X5/8PN/TR-RDTORX-Y
7517756
$2,09 Unit Price incl. VAT
10
BOLT-BANJO 10MMX1.00-6G
1910499
$10,49 Unit Price incl. VAT
11
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
12
WASHER NYLON
7555932
$4,19 Unit Price incl. VAT
13
SCR-10-24X3/4 PH/TX/TRI-SEMS Y
7518196
$2,09 Unit Price incl. VAT
14
BOLT HEX
7512163
$7,34 Unit Price incl. VAT
15
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
16
CLAMP-HOSE .312DIA VINYL COAT
7080683
$4,19 Unit Price incl. VAT
17
CLIP-SILENCER BOX-C 98 INDY
7670102
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
