1
Engine displacement
500
2
Year
2002
3
Trim
500 SKS
4
Parts Catalog
CARBURETOR
5

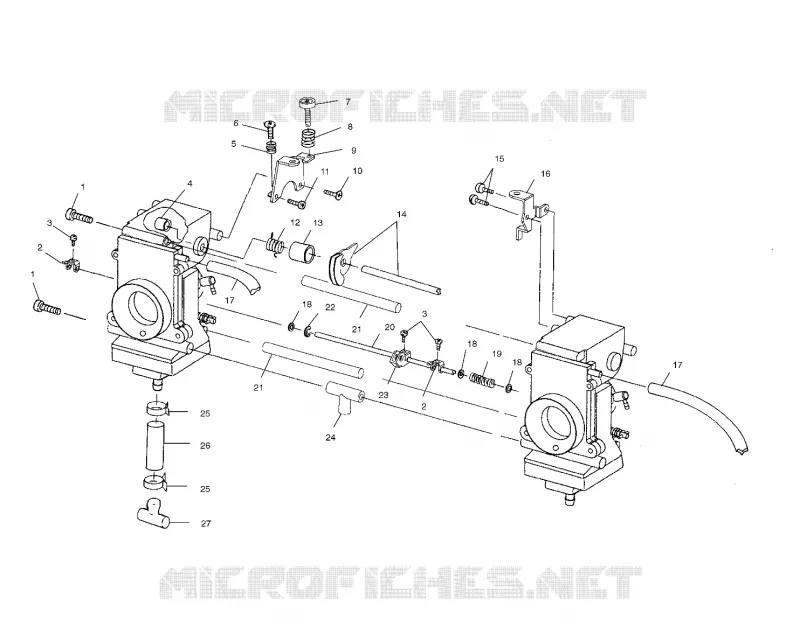

Parts Diagram
Parts Catalog
CARBURETOR
by
MAGNETO
CARBURETOR
1
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
18
18
19
20
21
21
22
23
24
25
25
26
27
1
BOLT
3130834
$52,49 Unit Price incl. VAT
2
LEVER
3130832
$47,24 Unit Price incl. VAT
3
SCREW
3130833
$7,34 Unit Price incl. VAT
4
RING
3140032
Not Available
5
SPRING
3130817
$13,64 Unit Price incl. VAT
6
SCREW
3130816
$11,54 Unit Price incl. VAT
7
ADJUSTER
3130812
$47,24 Unit Price incl. VAT
8
SPRING
3130811
Not Available
9
BRACKET
3131380
$68,24 Unit Price incl. VAT
10
SCREW
3130810
$6,29 Unit Price incl. VAT
11
SCREW
3130809
$6,29 Unit Price incl. VAT
12
SPRING
3130950
$73,49 Unit Price incl. VAT
13
RING
3130853
$15,74 Unit Price incl. VAT
14
Asm. Shaft
3131379
$139,64 Unit Price incl. VAT
15
SCREW
3130821
$13,64 Unit Price incl. VAT
16
BRACKET
3130820
$73,49 Unit Price incl. VAT
17
HOSE VENT
3130826
$19,94 Unit Price incl. VAT
18
PACKING SHAFT
3130842
$5,24 Unit Price incl. VAT
19
SPRING SHAFT
3130841
$15,74 Unit Price incl. VAT
20
SHAFT
3130840
$52,49 Unit Price incl. VAT
21
RING
3130852
$47,24 Unit Price incl. VAT
22
E-RING
3130839
$10,49 Unit Price incl. VAT
23
LEVER STARTER
3130819
$62,99 Unit Price incl. VAT
24
ASM. NIPPLE
3131374
$73,49 Unit Price incl. VAT
25
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
26
FUEL LINE ETHER RED 5/16# Substituted by 8350017-160
8350017600
Not Available
27
PLUG TRAP
5431893
$26,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
