1
Engine displacement
570
2
Year
2019
3
Trim
SPORTSMAN 570 SP TOURING
4
Parts Catalog
SWITCHES, SENSORS AND ECM
5

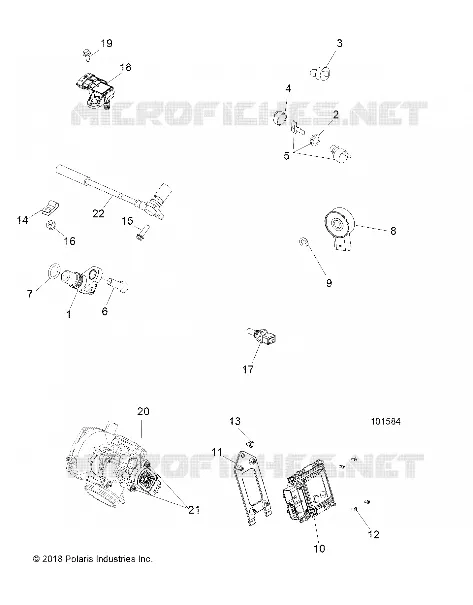

Parts Diagram
Parts Catalog
DRIVE TRAIN, REAR DRIVE SHAFT
by
ENGINE, AIR INTAKE SYSTEM
SWITCHES, SENSORS AND ECM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
SENSOR-SPEED TRANS
4013908
4082135
$204,74 Unit Price incl. VAT
2
NUT-IGNITION SWITCH HOBBS
5433733
$41,99 Unit Price incl. VAT
3
SWITCH-BRK 1/8#-27 NPTF SEALED [BRAKE LIGHTS]
4110164
2890637
$325,49 Unit Price incl. VAT
4
Cover-Key
5433534
5465307
$26,24 Unit Price incl. VAT
5
SWITCH KEY 3 POSITION [INCL. 23-25]
4012165
4083589
$202,64 Unit Price incl. VAT
6
SCREW TAPPING HEX WASHER HD 1/4-20 X 0.75
3234247
$10,49 Unit Price incl. VAT
7
O-RING
3234302
$13,64 Unit Price incl. VAT
8
SWITCH ROTARY 2 PIN RESISTIVE
7661999
$220,49 Unit Price incl. VAT
9
RING RETAINING BASIC EXTERNAL
3233834
$19,94 Unit Price incl. VAT
10
ECU BASE M17
4012838
$892,49 Unit Price incl. VAT
11
MNT-ECM REAR BLK
5438708070
$19,94 Unit Price incl. VAT
12
SCR-#10X1/2-HI/LO-PN-T25 TRX-M
7519091
$6,29 Unit Price incl. VAT
13
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
14
CLAMP-CABLE
7080367
$4,19 Unit Price incl. VAT
15
SCREW-HXFL-M6X1.0X20 8.8 ZY3
7518576
$6,29 Unit Price incl. VAT
16
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
17
SENSOR-THERMISTER
4010644
$141,74 Unit Price incl. VAT
18
SENSOR-TMAP DSS3-TF
2411528
$178,49 Unit Price incl. VAT
19
SCR-HXFL-M5X0.8X14 18-8
7516603
$19,94 Unit Price incl. VAT
20
SENSOR THROTTLE POSITION
3131705
$367,49 Unit Price incl. VAT
21
Screw
3131628
$9,44 Unit Price incl. VAT
22
SENSOR CRANK POSITION
2411719
$194,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
