1
Engine displacement
570
2
Year
2019
3
Trim
SPORTSMAN 570 SP TOURING
4
Parts Catalog

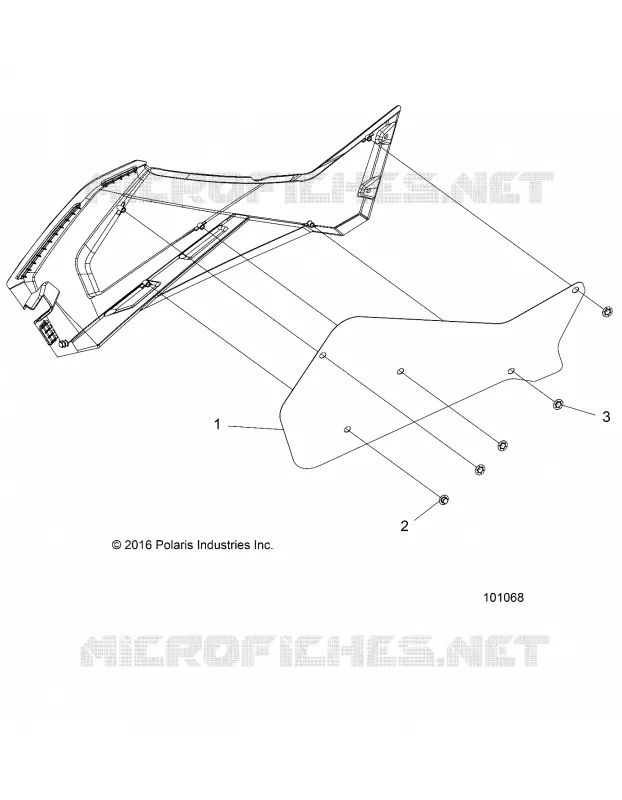

RIGHT HAND SIDE PANEL HEAT SHIELD AND HARDWARE 2 UP
5
Parts Diagram
Parts Catalog
REAR RACK AND HAND GRIPS
by
DRIVE TRAIN, FRONT GEARCASE MOUNTING
RIGHT HAND SIDE PANEL HEAT SHIELD AND HARDWARE 2 UP
1
PANEL-SIDE RH TURBO SILVER
5453645402
$482,99 Unit Price incl. VAT
1
SHIELD-HEAT SIDE PANEL SPM TRG
5263250
$73,49 Unit Price incl. VAT
2
NUT-PUSH CAP
7710850
$6,29 Unit Price incl. VAT
3
RETAINER-BOLT PUSHNUT M10
7710702
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
