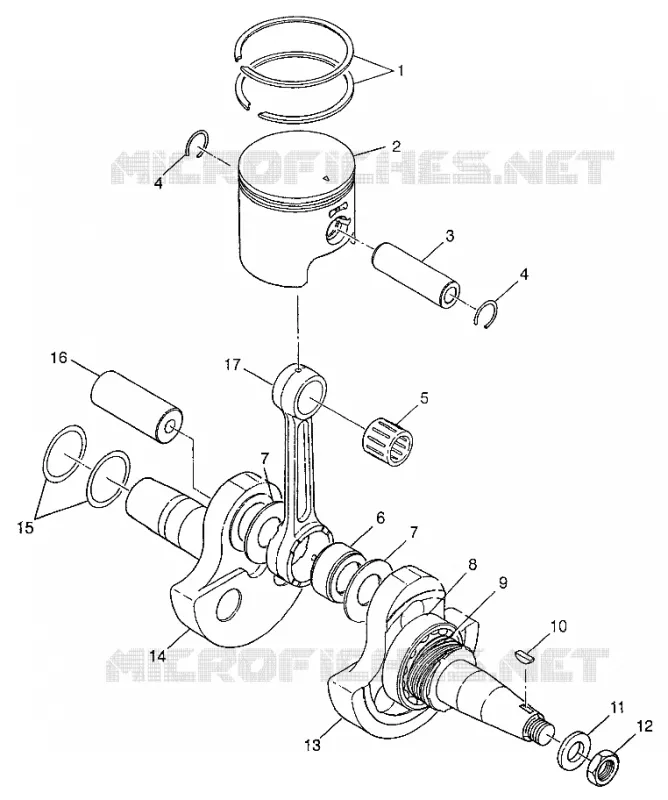

CRANKSHAFT AND PISTON XPLORER 300 W97CC28C (4939813981C012)
5
Parts Diagram
Parts Catalog
REAR BRAKE XPLORER 300 W97CC28C (4939813981C006)
by
CRANKCASE AND CYLINDER XPLORER 300 W97CC28C (4939813981C013)
CRANKSHAFT AND PISTON XPLORER 300 W97CC28C (4939813981C012)
-
1
1
2
2
2
2
2
2
2
2
2
3
4
4
5
6
7
7
8
9
10
11
12
13
13
13
13
14
15
15
15
15
16
17
-
RING PISTON (.50MM O/S) (2) (.020#/0.50mm O/S)
3084811
Not Available
1
RING PISTON (.25MM O/S) (2) (.010#/0.25mm O/S)
3084810
Not Available
1
RING PISTON STD.(2) (Std.)
3084809
Not Available
2
PISTON (.50MM O/S) Substituted by 3085896 (.020#/0.50mm O/S)
3085101
Not Available
2
PISTON (.25MM O/S) Substituted by 3085895 (.010#/0.25mm O/S)
3085100
Not Available
2
PISTON STD. Substituted by 3085894 (Std)
3085099
Not Available
3
PIN PISTON
3083858
$40,94 Unit Price incl. VAT
4
CLIP PISTON PIN
3084167
2207579
$356,99 Unit Price incl. VAT
5
BEARING SMALL END
3083626
Not Available
6
BEARING LGE.END
3083803
Not Available
7
SPACER
3083804
$36,74 Unit Price incl. VAT
8
BEARING BALL
3084580
Not Available
9
GEAR CRANKSHAFT
3083745
Not Available
10
KEY Substituted by 3081543
3080130
3081543
$26,24 Unit Price incl. VAT
11
WASHER Substituted by 3086767
3083904
Not Available
12
LOCKNUT
3083905
Not Available
13
CRANKSHAFT #1
3084804
Not Available
13
CRANKSHAFT ASM. (Incl. 5 7 8 13-15 17)
3084803
Not Available
14
CRANKSHAFT #2
3084805
Not Available
15
SPACER #1 Substituted by 3086765
3084778
Not Available
15
SPACER #2 Substituted by 3086766
3084779
Not Available
16
CRANK PIN PTO
3082796
Not Available
17
ROD CONNECTING
3082790
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
