1
Engine displacement
0
2
Year
1996
3
Trim
XLT SKS - 0960556
4
Parts Catalog

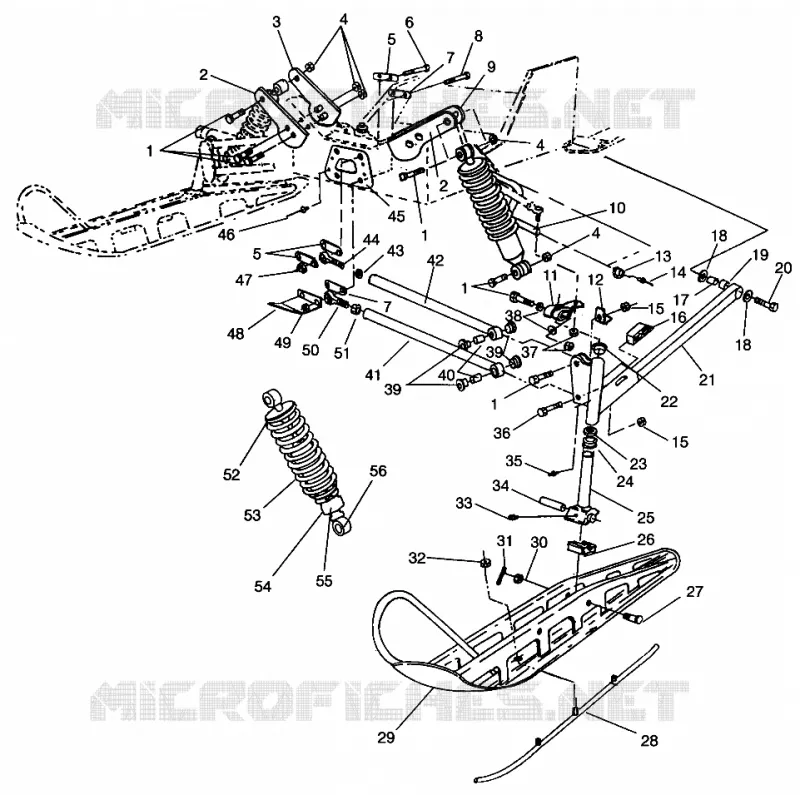

FRONT SUSPENSION AND SKI XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181B003)
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION AND SKI XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT (4931813181B001)
by
STEERING
FRONT SUSPENSION AND SKI XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181B003)
1
BOLT(10) Substituted by 7515415
7515515
$2,09 Unit Price incl. VAT
2
PLATE SHOCK MT.EXT BLK.
5211449067
Not Available
3
MT RH SHOCK EXT.BLK.
1012053067
Not Available
4
NUT NYLOC(10)
7542453
7542439
$2,09 Unit Price incl. VAT
5
STRAP-SPACER TOP
5211344
$13,64 Unit Price incl. VAT
6
BOLT(10)
7512551
Not Available
7
STRAP-SPACER BOTTOM
5211345
$19,94 Unit Price incl. VAT
8
BOLT
7512678
$36,74 Unit Price incl. VAT
9
MT LH SHOCK EXT.BLK.
1012052067
Not Available
10
BAR SWAY 9/16-41
5224678067
Not Available
11
ARM STEERING
5241244067
Not Available
12
STOP LH STEERING
5241207067
Not Available
12
STOP RH STEERING
5241208067
Not Available
13
BUSHING-SWAYBAR
5410383
Not Available
14
RIVET(50) Substituted by 7661130
7661643
7661130
$2,09 Unit Price incl. VAT
15
NUT FLEXLOC(10) Substituted by 7542411
7542452
7542411
$6,29 Unit Price incl. VAT
16
SLIDE SWAYBAR
5432048
Not Available
17
PIVOT-TRAILING ARM
5410382
Not Available
18
WASHER
7555721
$2,09 Unit Price incl. VAT
19
BUSHING
5010310
$19,94 Unit Price incl. VAT
20
BOLT(10)
7512557
$11,54 Unit Price incl. VAT
21
ARM TRLG LH. (Incl. 17 19)
1822262
Not Available
21
ARM TRLG RH (Incl. 17 19)
1822264
Not Available
22
BUSHING FLANGE
3573909
$4,19 Unit Price incl. VAT
23
BUSHING
7556509
$3,14 Unit Price incl. VAT
24
BUSHING FLANGED
3574208
$6,29 Unit Price incl. VAT
25
SPINDLE BLK.
6230073067
Not Available
26
STOP RUBBER
5521276
Not Available
27
BOLT(10)
7515541
Not Available
28
SKAG PR. CARBIDE
2870693
$99,74 Unit Price incl. VAT
29
SKI WELD BLK
1820332067
Not Available
30
NUT CASTLE(10) Substituted by 7542438
7542457
7542438
$3,14 Unit Price incl. VAT
31
PIN COTTER(10) Substituted by 7661205
7661209
7661205
$1,56 Unit Price incl. VAT
32
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
33
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
34
BUSHING [BEA]
5010158
$27,29 Unit Price incl. VAT
35
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
36
BOLT(10) Substituted by 7517583
7515491
7515433
$3,14 Unit Price incl. VAT
37
NUT FLEXLOC B(10) Substituted by 7542403
7542456
Not Available
38
WASHER(10) Substituted by 7555832
7555851
7555832
$4,19 Unit Price incl. VAT
39
BUSHING-RAD ROD PIVOT
5432074
Not Available
40
BUSHING RAD.ROD UPP/LOWER
5010356
Not Available
41
ROD RAD LOWER
1822292067
Not Available
42
ROD RAD UPPER
1822297067
Not Available
43
NUT JAM(10)
7542520
$4,19 Unit Price incl. VAT
44
ROD END RH Substituted by 7061010
7060155
Not Available
45
BRACE BLKHD/STRG BLK.
5211589067
Not Available
46
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
47
NUT LOCK (10)
7542503
$18,89 Unit Price incl. VAT
48
BRACE PAN
5223997067
Not Available
49
NUT FLEX (10)
7542703
Not Available
50
ROD END RH Substituted by 7061011
7060156
7061071
$99,74 Unit Price incl. VAT
51
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
52
RETAINER SPRING SLOTTED
5020618
$36,74 Unit Price incl. VAT
53
SPRING .306 COMP(LT) BLK.
7041405067
Not Available
54
RETAINER SPRING BODY THD. [1 PER SHOCK]
1500063
$83,99 Unit Price incl. VAT
55
RING SPRING PRELOAD ADJ. [1 PER SHOCK]
5431734
$104,99 Unit Price incl. VAT
56
SHOCK GAS IFS
7041423
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
