1
Engine displacement
340
2
Year
2001
3
Trim
INDY 340 DELUXE
4
Parts Catalog

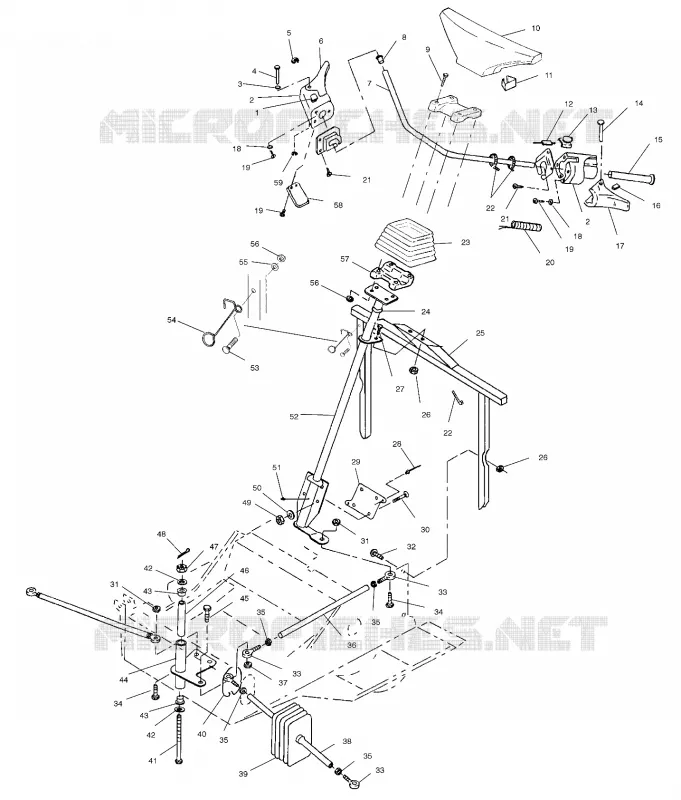

STEERING
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION AND SKI
by
REAR TORQUE ARM
STEERING
1
2
2
3
4
5
6
6
6
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
19
19
20
21
21
22
22
23
24
25
26
26
27
28
29
30
31
31
32
33
33
33
33
33
33
33
33
33
33
33
33
34
34
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
36
37
38
39
40
41
42
42
43
43
44
45
46
47
48
49
50
51
52
53
54
55
56
56
57
58
59
1
SWITCH AUX.SHUT-OFF
4110106
$141,74 Unit Price incl. VAT
2
BLOCK THROTTLE/BRAKE
5431592
$73,49 Unit Price incl. VAT
3
WASHER
7555730
$7,34 Unit Price incl. VAT
4
PIN RETAINING
7661624
$23,09 Unit Price incl. VAT
5
RING RETAINING
7710503
$7,34 Unit Price incl. VAT
6
LEVER 30 MM W/HTR.
2010147
Not Available
6
LEVER-THROTTLE
5430601
Not Available
7
HANDLEBAR BLACK (LITE)
5224841067
Not Available
8
PLUG-OVERFLOW 8X (RED)
5431096
$3,66 Unit Price incl. VAT
9
SCREW
7517238
$9,44 Unit Price incl. VAT
10
PAD HANDLEBAR
5432903
Not Available
11
CLIP-HANDLEBAR PAD
7080799
Not Available
12
SWITCH BRAKE LIGHT
4110105
Not Available
13
SWITCH DIMMER
4110104
Not Available
14
RIVET
7661617
$7,34 Unit Price incl. VAT
15
GRIP H#BAR SNOW
5432634
$52,49 Unit Price incl. VAT
16
CLIP-SPEED.(10)
7670044
$9,44 Unit Price incl. VAT
17
LEVER-BRAKE
5430602
$68,24 Unit Price incl. VAT
18
WSHR-11/64X3/8X1/32-Y
7555727
$1,04 Unit Price incl. VAT
19
SCR-6X3/8 PH TR HD GR5-Y
7511848
$7,34 Unit Price incl. VAT
20
HEATER GRIP ASM.
2460313
Not Available
21
SCR-SHSEMS-3/8-16X0.375 GR8 Z
7512465
$7,34 Unit Price incl. VAT
22
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
23
BOOT STEERING POST
5432827
Not Available
24
CABLE TIE RELEASABLE
7080804
$6,29 Unit Price incl. VAT
25
HOOP STRG BLK.
1011863067
Not Available
26
NUT FLEXLOC
7542103
$10,49 Unit Price incl. VAT
27
BOLT(10) Substituted by 7512269
7515101
Not Available
28
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
29
BRKT BOLT RETAINER
5222421
Not Available
30
SCR-RHCAR-5/16-18X0.75 GR5 ZY3
7512377
$9,44 Unit Price incl. VAT
31
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
32
BOLT CARRIAGE
7512298
$7,34 Unit Price incl. VAT
33
ROD END RH
7060167
$99,74 Unit Price incl. VAT
33
ROD END LH
7060166
$99,74 Unit Price incl. VAT
34
BOLT(10)
7515528
$15,74 Unit Price incl. VAT
35
NUT-3/8-24-(L.H.)-Y
7542424
$1,56 Unit Price incl. VAT
35
NUT-3/8-24-2B-Z
7542401
$4,19 Unit Price incl. VAT
36
ROD-DRAGLINK 9.70 STEEL BLK
5333816067
$73,07 Unit Price incl. VAT
37
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
38
ROD-TIE 17.23 BLK
5132136067
Not Available
39
BOOT TIE ROD
5411652
Not Available
40
RETAINOR-TIE ROD BOOT Substituted by 5411652
5243497
Not Available
41
BOLT(10)
7512572
$23,09 Unit Price incl. VAT
42
WASHER(10)
7555817
Not Available
43
BUSHING
5630371
$8,07 Unit Price incl. VAT
44
STEERING CTR.BLK
1820776067
$79,47 Unit Price incl. VAT
45
SCREW(10)
7515434
Not Available
46
BUSHING SPACER
5333009
$19,20 Unit Price incl. VAT
47
NUT LOCK (10)
7542503
$18,89 Unit Price incl. VAT
48
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
49
NUT FLEX-LOC(10)
7542303
$11,54 Unit Price incl. VAT
50
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
51
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
52
POST STEERING BLK
1822589067
Not Available
53
SCR-RHCAR-1/4-20X0.75 GR5 ZY3
7512193
$4,19 Unit Price incl. VAT
54
RINGMOUNT RECOIL BLK.
5224442067
$34,32 Unit Price incl. VAT
55
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
56
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
57
BLOCK HANDLEBAR BLACK
5630187067
$73,49 Unit Price incl. VAT
58
HOLDER WIRE
5432261
$47,24 Unit Price incl. VAT
59
RING RETAINING
7710401
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
