DRIVE TRAIN, MAIN GEARCASE SHIFT FORKS FOR SPORTSMAN X2 550 - A12TN55AA/AZ FROM 2012

DRIVE TRAIN, MAIN GEARCASE INTERNALS

DRIVE TRAIN, PRIMARY CLUTCH

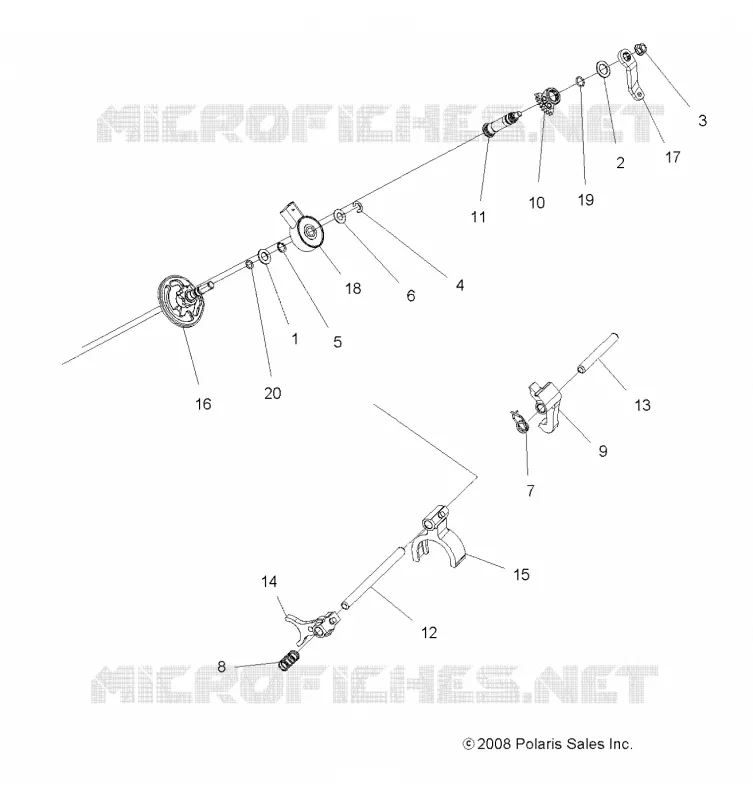

DRIVE TRAIN, MAIN GEARCASE SHIFT FORKS

-

Asm. Transmission [Incl. All]

1332847

Not Available

1

WASHER THRUST 0.5 X 0.937 X 0.063

3234636

$14,69 Unit Price incl. VAT

2

WASHER THRUST .625 X 1.000 X 0.063

3234637

$20,99 Unit Price incl. VAT

3

NUT LOCK HEX FLANGE NYLON 5/16-24

3233961

$5,24 Unit Price incl. VAT

4

RING RETAINING BASIC EXTERNAL

3233834

$19,94 Unit Price incl. VAT

5

RING RETAINING BASIC EXTERNAL SHR-50

3234639

$19,94 Unit Price incl. VAT

6

WASHER THRUST 0.446 X 0.88 X 0.025

3234642

$19,94 Unit Price incl. VAT

7

SPRING PARK PAWL TORSION

3234787

$52,49 Unit Price incl. VAT

8

SPRING COMPRESSION 0.648 O.D. X 1.33

3234687

$16,79 Unit Price incl. VAT

9

PAWL PARK

3234692

$99,74 Unit Price incl. VAT

10

GEAR SECTOR 38T

3234694

$62,99 Unit Price incl. VAT

11

SHAFT SHIFT BELLCRANK

3234712

$120,74 Unit Price incl. VAT

12

Rail Shift Shaft

3234714

$52,49 Unit Price incl. VAT

13

RAIL PARK SHAFT

3234716

$52,49 Unit Price incl. VAT

14

FORK SHIFT

3235342

$167,99 Unit Price incl. VAT

15

FORK SHIFT

3234766

$167,99 Unit Price incl. VAT

16

SUBASM. SWITCH SHAFT

3234767

$230,99 Unit Price incl. VAT

17

BELLCRANK 15T SPLINE

3234724

$52,49 Unit Price incl. VAT

18

SWITCH ROTARY 6-PIN ITW [GEAR POSITION]

3233835

$225,74 Unit Price incl. VAT

19

O-RING -014 VITON

3233828

$12,59 Unit Price incl. VAT

20

O-RING - N70 9.5 MM X 2 MM

3234730

$14,69 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
