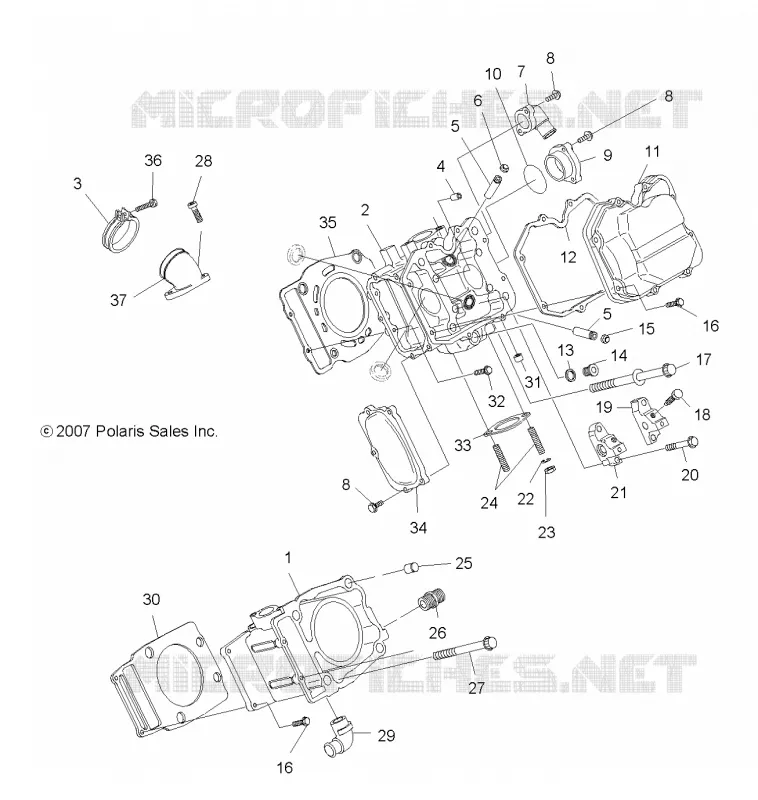

CYLINDER AND HEAD FOR SPORTSMAN TOURING 500 HO - A11DH50AX/AZ FROM 2011

CYLINDER AND HEAD

1

Asm. Cylinder [Incl. 30][Built 12/12/09 and After]

3090293

$720,29 Unit Price incl. VAT

2

HEAD CYLINDER * (Incl. 5-7 15 17-19 22)

3085527

$1 275,74 Unit Price incl. VAT

3

Asm. Band [Incl. 1]

3090209

$47,24 Unit Price incl. VAT

4

PIN STRAIGHT

3084857

Not Available

5

GUIDE VALVE

3084994

$83,99 Unit Price incl. VAT

6

Seal Exhaust Valve

3090098

$20,99 Unit Price incl. VAT

7

Adapter

3084870

$120,74 Unit Price incl. VAT

8

BOLT FLANGE(10)

3084877

Not Available

9

ADAPTER CAMSHAFT

3084866

Not Available

10

O-RING

3084867

$41,99 Unit Price incl. VAT

11

COVER ROCKER

3085073

$152,24 Unit Price incl. VAT

12

GASKET (R.COVER)

3085074

$57,74 Unit Price incl. VAT

13

GASKET

3084861

$9,44 Unit Price incl. VAT

14

PLUG

3084860

$13,64 Unit Price incl. VAT

15

Seal Exhaust Valve

3090098

$20,99 Unit Price incl. VAT

16

Bolt Flange

3084874

Not Available

17

BOLT

3084875

Not Available

18

BOLT (ROCKER SHAFT)

3085854

Not Available

19

SUPPORT VALVE ROCKER (PTO)

3084864

Not Available

20

BOLT

3084876

$9,44 Unit Price incl. VAT

21

SUPPORT VALVE ROCKER (MAG)

3084863

$173,24 Unit Price incl. VAT

22

WASHER LOCK (10)

3080530

$6,29 Unit Price incl. VAT

23

Nut

3087199

Not Available

23

NUT-FLANGE(10)

3082910

Not Available

24

STUD (10)

3085326

Not Available

24

Stud [Built 8/19/10 and After]

3090095

Not Available

25

Pin Knock

3087266

Not Available

26

Union Oil Filter

3089956

Not Available

27

BOLT FLANGE

3084873

Not Available

28

BOLT SOCKET HEAD

3081330

$7,34 Unit Price incl. VAT

29

Pipe Water [Built 12/12/09 and After]

3090290

Not Available

30

Gasket Cylinder

3089966

$73,49 Unit Price incl. VAT

31

PLUG BLIND

3084862

Not Available

32

Bolt Flange

3088035

$6,29 Unit Price incl. VAT

33

GASKET EXH.

3085075

$73,49 Unit Price incl. VAT

34

Cover Camshaft

3089242

$115,49 Unit Price incl. VAT

35

GASKET HEAD

3085371

$104,99 Unit Price incl. VAT

36

SCREW

3081497

$4,19 Unit Price incl. VAT

37

ADAPTER

3085809

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
