1
Engine displacement
1000
2
Year
2018
3
Trim
RANGER CREW XP 1000 EPS
4
Parts Catalog

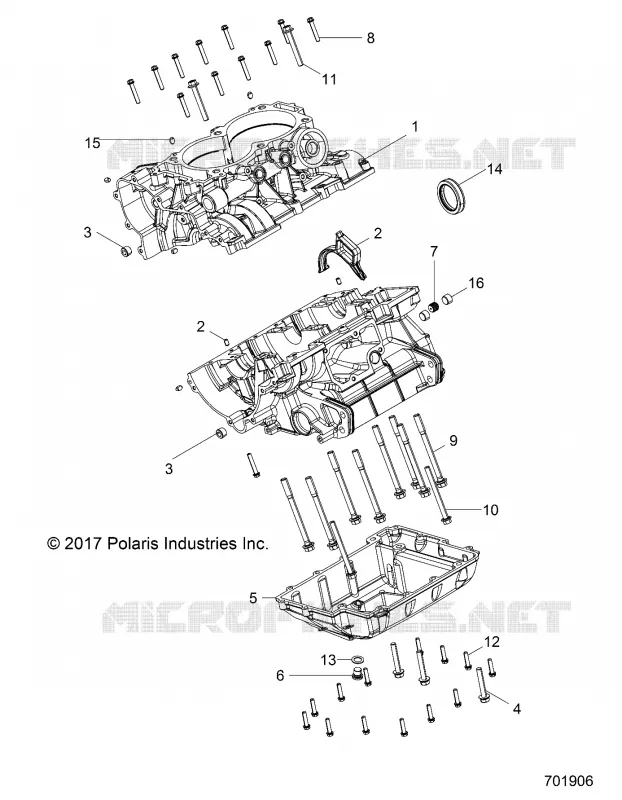

CRANKCASE
5
Parts Diagram
Parts Catalog
COOLING, WATERPUMP
by
ENGINE, CRANKSHAFT
CRANKCASE
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
KIT CRANKCASE [INCL. 2-3 7-10 15]
2207371
$2 294,24 Unit Price incl. VAT
2
DIVERTER OIL DRAIN
5452616
$47,24 Unit Price incl. VAT
3
PLUG-3/8 NPT HX/SOC W/SEALANT
7052413
$8,39 Unit Price incl. VAT
4
SCR-M8X1.25X50 HX/FL-Y
7517793
$10,49 Unit Price incl. VAT
5
COVER SUMP
5137873
5143719
$204,74 Unit Price incl. VAT
6
PLUG-SOCKET M12X1.5 DIN 908A
7052306
$31,49 Unit Price incl. VAT
7
PLUG-HEX SOCKET 1/4X18 SEALANT
7518835
$10,49 Unit Price incl. VAT
8
SCR-HXFL-M6X1.0X35 8.8 ZY3
7518578
$7,34 Unit Price incl. VAT
9
SCREW [TO 12/1/2019]
7519141
7521267
$25,19 Unit Price incl. VAT
10
SCR-HXFLG M8X1.25X90
7519154
$13,64 Unit Price incl. VAT
11
SCR-HXFLG M8X1.25X60
7519186
$10,49 Unit Price incl. VAT
12
SCREW-HXFLG M6X1.0X25 10.9
7519297
$7,34 Unit Price incl. VAT
13
WASHER-19X12X1.3 COPPER
5812232
$3,14 Unit Price incl. VAT
14
SEAL-CRANKSHAFT
3610284
$57,74 Unit Price incl. VAT
15
PIN DOWEL M6x10
5132835
$4,19 Unit Price incl. VAT
16
PLUG-HEX SCKT W/O-RING M16X1.5
7052642
$13,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.

Other Parts for RANGER CREW XP 1000 EPS

SIDE NETS

SIDE NETS

for RANGER CREW XP 1000 EPS from 2018

DRIVERS DEAT SLIDER

DRIVERS DEAT SLIDER

for RANGER CREW XP 1000 EPS from 2018

STORAGE

STORAGE

for RANGER CREW XP 1000 EPS from 2018

BARKE CALIPER MOUNTING

BARKE CALIPER MOUNTING

for RANGER CREW XP 1000 EPS from 2018

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, GEAR SELECTOR

for RANGER CREW XP 1000 EPS from 2018

DRIVE TRAIN, MAIN GEARCASE INTERNAL

DRIVE TRAIN, MAIN GEARCASE INTERNAL

for RANGER CREW XP 1000 EPS from 2018

DRIVE TRAIN, MAIN GEARCASE MOUNTING

DRIVE TRAIN, MAIN GEARCASE MOUNTING

for RANGER CREW XP 1000 EPS from 2018

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, PRIMARY CLUTCH

for RANGER CREW XP 1000 EPS from 2018

COOLING, THERMOSTAT AND BYPASS

COOLING, THERMOSTAT AND BYPASS

for RANGER CREW XP 1000 EPS from 2018

COOLING, WATERPUMP

COOLING, WATERPUMP

for RANGER CREW XP 1000 EPS from 2018

CRANKCASE

CRANKCASE

for RANGER CREW XP 1000 EPS from 2018

ENGINE, CRANKSHAFT

ENGINE, CRANKSHAFT

for RANGER CREW XP 1000 EPS from 2018

CYLINDER AND PISTON

CYLINDER AND PISTON

for RANGER CREW XP 1000 EPS from 2018

FRONT SUSPENSION CONTROL ARMS

FRONT SUSPENSION CONTROL ARMS

for RANGER CREW XP 1000 EPS from 2018

FRONT SUSPENSION SHOCK

FRONT SUSPENSION SHOCK

for RANGER CREW XP 1000 EPS from 2018

REAR SUSPENSION

REAR SUSPENSION

for RANGER CREW XP 1000 EPS from 2018

BED BOX MOUNTING & LATCH

BED BOX MOUNTING & LATCH

for RANGER CREW XP 1000 EPS from 2018

HOOD & FRONT FACSIA

HOOD & FRONT FACSIA

for RANGER CREW XP 1000 EPS from 2018

SEAT

SEAT

for RANGER CREW XP 1000 EPS from 2018

FRONT BRAKE CALIPER

FRONT BRAKE CALIPER

for RANGER CREW XP 1000 EPS from 2018

BRAKES, PEDAL AND MASTER CYLINDER MOUNTING

BRAKES, PEDAL AND MASTER CYLINDER MOUNTING

for RANGER CREW XP 1000 EPS from 2018

DRIVE TRAIN, FRONT GEARCASE INTERNALS

DRIVE TRAIN, FRONT GEARCASE INTERNALS

for RANGER CREW XP 1000 EPS from 2018

DRIVE TRAIN, FRONT HALF SHAFT

DRIVE TRAIN, FRONT HALF SHAFT

for RANGER CREW XP 1000 EPS from 2018

DRIVE TRAIN, SECONDARY CLUTCH

DRIVE TRAIN, SECONDARY CLUTCH

for RANGER CREW XP 1000 EPS from 2018

ELECTRICAL, INSTRUMENTS & CONTROLS

ELECTRICAL, INSTRUMENTS & CONTROLS

for RANGER CREW XP 1000 EPS from 2018

THROTTLE PEDAL

THROTTLE PEDAL

for RANGER CREW XP 1000 EPS from 2018

CAM CHAIN AND TENSIONER

CAM CHAIN AND TENSIONER

for RANGER CREW XP 1000 EPS from 2018

CYLINDER HEAD AND VALVES

CYLINDER HEAD AND VALVES

for RANGER CREW XP 1000 EPS from 2018

ENGINE, ENGINE MOUNTING

ENGINE, ENGINE MOUNTING

for RANGER CREW XP 1000 EPS from 2018

ENGINE, VALVE COVER

ENGINE, VALVE COVER

for RANGER CREW XP 1000 EPS from 2018

STEERING (EPS)

STEERING (EPS)

for RANGER CREW XP 1000 EPS from 2018

REAR SUSPENSION SHOCK

REAR SUSPENSION SHOCK

for RANGER CREW XP 1000 EPS from 2018

WHEELS, FRONT

WHEELS, FRONT

for RANGER CREW XP 1000 EPS from 2018

WHEELS, REAR

WHEELS, REAR

for RANGER CREW XP 1000 EPS from 2018

BED BOX

BED BOX

for RANGER CREW XP 1000 EPS from 2018

TAILGATE

TAILGATE

for RANGER CREW XP 1000 EPS from 2018

FUEL TANK

FUEL TANK

for RANGER CREW XP 1000 EPS from 2018

SEAT

SEAT

for RANGER CREW XP 1000 EPS from 2018

BRAKES, LINES AND MASTER CYLINDER

BRAKES, LINES AND MASTER CYLINDER

for RANGER CREW XP 1000 EPS from 2018

REAR BRAKE CALIPER

REAR BRAKE CALIPER

for RANGER CREW XP 1000 EPS from 2018

DRIVE TRAIN, FRONT AND REAR PROP SHAFT

DRIVE TRAIN, FRONT AND REAR PROP SHAFT

for RANGER CREW XP 1000 EPS from 2018

DRIVE TRAIN, REAR DRIVE SHAFT

DRIVE TRAIN, REAR DRIVE SHAFT

for RANGER CREW XP 1000 EPS from 2018

BATTERY

BATTERY

for RANGER CREW XP 1000 EPS from 2018

ENGINE, AIR INTAKE SYSTEM

ENGINE, AIR INTAKE SYSTEM

for RANGER CREW XP 1000 EPS from 2018

COOLING SYSTEM

COOLING SYSTEM

for RANGER CREW XP 1000 EPS from 2018

ENGINE, DIPSTICK, CAP AND OIL FILTER

ENGINE, DIPSTICK, CAP AND OIL FILTER

for RANGER CREW XP 1000 EPS from 2018

EXHAUST

EXHAUST

for RANGER CREW XP 1000 EPS from 2018

THROTTLE PEDAL

THROTTLE PEDAL

for RANGER CREW XP 1000 EPS from 2018

REFERENCES, TOOL KIT AND OWNERS MANUALS

REFERENCES, TOOL KIT AND OWNERS MANUALS

for RANGER CREW XP 1000 EPS from 2018

SUSPENSION, REAR STRUT STABILIZER

SUSPENSION, REAR STRUT STABILIZER

for RANGER CREW XP 1000 EPS from 2018

WHEELS, FRONT

WHEELS, FRONT

for RANGER CREW XP 1000 EPS from 2018

DASHBOARD

DASHBOARD

for RANGER CREW XP 1000 EPS from 2018

DECALSS

DECALSS

for RANGER CREW XP 1000 EPS from 2018

FRONT FLOOR

FRONT FLOOR

for RANGER CREW XP 1000 EPS from 2018

REAR FLOOR

REAR FLOOR

for RANGER CREW XP 1000 EPS from 2018

CHASSIS, CAB

CHASSIS, CAB

for RANGER CREW XP 1000 EPS from 2018

CHASSIS, FRAME

CHASSIS, FRAME

for RANGER CREW XP 1000 EPS from 2018

CHASSIS, FRONT BUMPER

CHASSIS, FRONT BUMPER

for RANGER CREW XP 1000 EPS from 2018

DRIVE TRAIN, CLUTCH COVER

DRIVE TRAIN, CLUTCH COVER

for RANGER CREW XP 1000 EPS from 2018

DRIVE TRAIN, FRONT GEARCASE

DRIVE TRAIN, FRONT GEARCASE

for RANGER CREW XP 1000 EPS from 2018

WIRE HARNESS

WIRE HARNESS

for RANGER CREW XP 1000 EPS from 2018

HEADLIGHT AND TAILLIGHT

HEADLIGHT AND TAILLIGHT

for RANGER CREW XP 1000 EPS from 2018

IGNITION

IGNITION

for RANGER CREW XP 1000 EPS from 2018

SENSORS AND MODULES

SENSORS AND MODULES

for RANGER CREW XP 1000 EPS from 2018

ENGINE, INTAKE & THROTTLE BODY

ENGINE, INTAKE & THROTTLE BODY

for RANGER CREW XP 1000 EPS from 2018

OIL PUMP

OIL PUMP

for RANGER CREW XP 1000 EPS from 2018

ENGINE, STATOR AND COVER

ENGINE, STATOR AND COVER

for RANGER CREW XP 1000 EPS from 2018

WHEELS, REAR

WHEELS, REAR

for RANGER CREW XP 1000 EPS from 2018

ENGINE, FUEL INJECTOR

ENGINE, FUEL INJECTOR

for RANGER CREW XP 1000 EPS from 2018

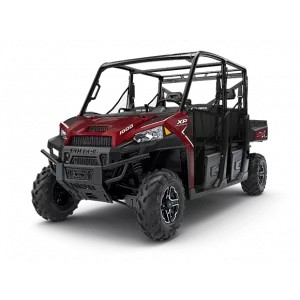

POLARIS RANGER CREW XP 1000 EPS 2018
