1
Engine displacement
570
2
Year
2016
3
Trim
SPORTSMAN TOURING 570 EFI / EPS
4
Parts Catalog
EXHAUST
5

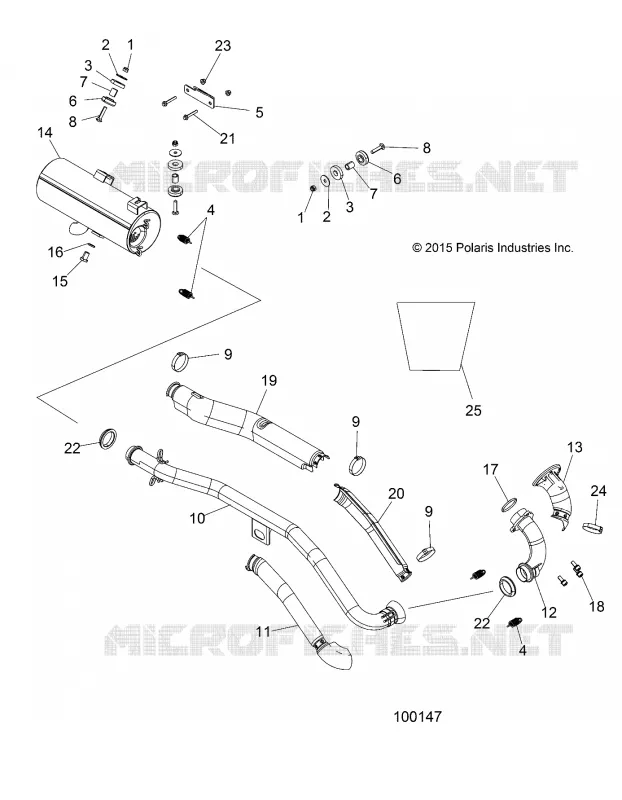

Parts Diagram
Parts Catalog
CAM CHAIN AND SPROCKET
by
STARTER DRIVE
EXHAUST
17
18
19
20
21
22
22
23
24
25
1
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
2
WASHER-.328X1.25X16GA FL-Y
7555716
$3,14 Unit Price incl. VAT
3
WSHR-15.4X38.1X7.9 RUBBER
5414945
$9,44 Unit Price incl. VAT
4
SPRING EXHAUST
7041804
$16,79 Unit Price incl. VAT
5
BRACKET SILENCER FRAME
5241663
$19,94 Unit Price incl. VAT
6
DAMPER-VIBRATION
5414946
$9,44 Unit Price incl. VAT
7
BUSHING-.459 X.625 X.75
5010192
$12,59 Unit Price incl. VAT
8
BOLT CARRIAGE
7515316
$4,19 Unit Price incl. VAT
9
CLAMP HOSE SS
7080560
$20,99 Unit Price incl. VAT
10
ASM-EXHAUST PIPE 570 EFI SS [INCL. PIPE SHIELDS CLAMPS]
1262917
1263100
$545,99 Unit Price incl. VAT
11
SHIELD-HEAT EXHAUST MID
5260801
$120,74 Unit Price incl. VAT
12
MANIFOLD
1262376
$283,49 Unit Price incl. VAT
13
SHIELD-HEAT EXHAUST HEADPIPE
5260800
$68,24 Unit Price incl. VAT
14
SILENCER EXHAUST POWDER BLACK
1262445489
$561,74 Unit Price incl. VAT
15
BOLT-1/2-20X5/8 HXHDCAP-GR5-P
7512666
$4,19 Unit Price incl. VAT
16
WASHER-CLEAN OUT .51X.75X.09
7556230
$2,09 Unit Price incl. VAT
17
GASKET-EXHAUST SEALING
5253989
$52,49 Unit Price incl. VAT
18
SCR-M8X1.25X20 HXSOC-CSSPL-SEM
7517555
$15,74 Unit Price incl. VAT
19
SHIELD-HEAT EXHAUST REAR
5260802
5265059
$136,49 Unit Price incl. VAT
20
SHIELD-HEAT EXHAUST MID INNER
5260808
$125,99 Unit Price incl. VAT
21
SCREW HXFL-5/16-18X0.75 GR5 ZY3
7518341
$9,44 Unit Price incl. VAT
22
SEAL EXHAUST
5256385
$52,49 Unit Price incl. VAT
23
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
24
CLAMP-45.0DX7W 304SS OETIKER
7082132
$9,44 Unit Price incl. VAT
25
FOIL FRAME SUPPORT
5814363
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
