1
Engine displacement
500
2
Year
2001
3
Trim
worker-500-a01ch50eb
4
Parts Catalog

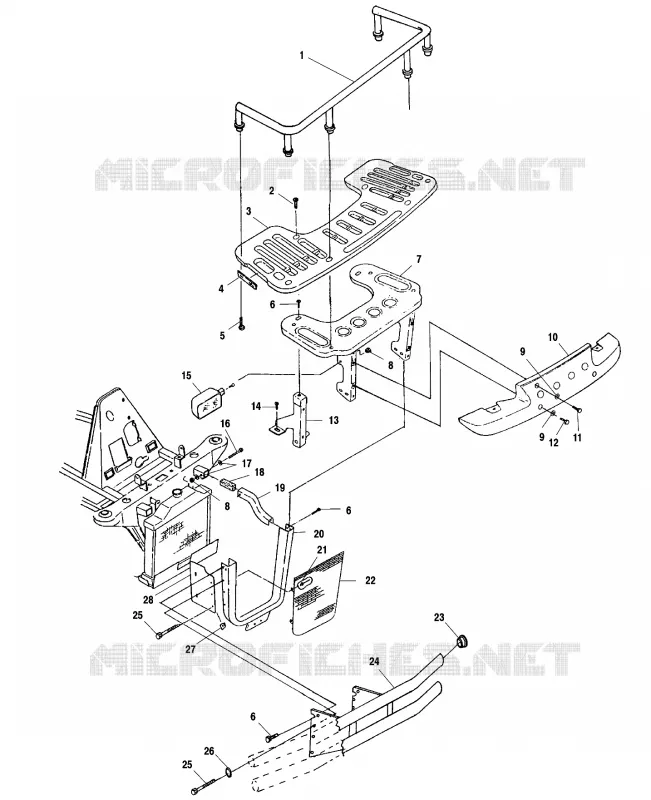

FRONT RACK BUMPER MOUNTING
5
Parts Diagram
Parts Catalog
by
DECALS
FRONT RACK BUMPER MOUNTING
1
Extender Front Rack Low
1040526067
Not Available
2
SCR-1/4-20X1.00 TR/TX-M
7517685
$3,14 Unit Price incl. VAT
3
Asm. Front Rack [Incl. Warning Decal]
2670180
Not Available
4
REFLECTOR AMBER
2670071
Not Available
5
Screw Flange
7517208
$3,66 Unit Price incl. VAT
6
SCR-5/16-18X3/4 TFM HW T/R-Y
7515399
$2,09 Unit Price incl. VAT
7
Kit Front Rack Mount
2200775
Not Available
8
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
9
WASHER
7555954
$9,44 Unit Price incl. VAT
10
Bumper
5432155070
$262,49 Unit Price incl. VAT
11
SCREW
7515391
$9,44 Unit Price incl. VAT
12
Screw
7515390
Not Available
13
SUPPORT FRT. RACK RH BLK
1013211067
Not Available
13
SUPPORT FRT.RACK LH BLK
1013210067
$94,49 Unit Price incl. VAT
14
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
15
Headlight LH
2431014
Not Available
15
Headlight RH
2431015
Not Available
15
Bulb Replacement 27W
4030059
Not Available
16
SCR-HH-5/16-18X3.75 GR5 ZY3
7515382
$4,19 Unit Price incl. VAT
17
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
18
Plug Frame
5810467
Not Available
19
EXTENSION FRAME RH BLK
5244624067
Not Available
19
EXTENSION FRAME LH BLK
5244623067
Not Available
20
GUARD BRUSH BLK
5241583067
Not Available
21
RIVET
7621330
$2,09 Unit Price incl. VAT
22
GRILL BRUSHGUARD BLK.
5240591067
Not Available
23
Cap End Bumper (AC)(AD)
5433305
$10,49 Unit Price incl. VAT
24
BUMPER-FRONT RSE BLK
5243377067
Not Available
25
Screw
7512097
$7,34 Unit Price incl. VAT
26
WASHER
7556034
$4,19 Unit Price incl. VAT
27
NUT U-TYPE
7670094
$10,49 Unit Price incl. VAT
28
Shield Side Radiator RH
5433924
$62,99 Unit Price incl. VAT
28
Shield Side Radiator LH
5433923
$62,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
