1
Engine displacement
1200
2
Year
1999
3
Trim
GENESIS FICHT - B995094
4
Parts Catalog
REVERSE
5

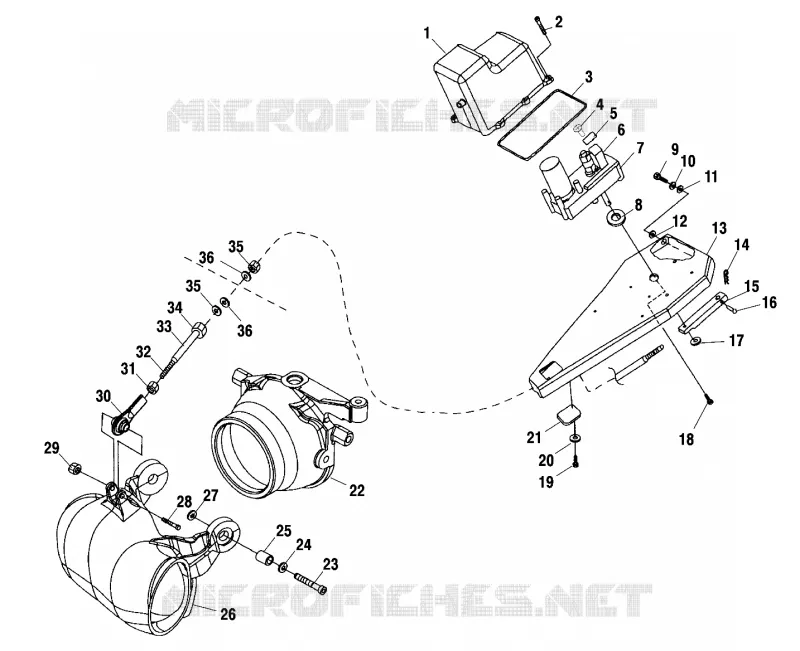

Parts Diagram
Parts Catalog
PROPULSION
by
EXHAUST SYSTEM
REVERSE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35
36
36
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35
36
36
1
2
3
4
5
6
7
1
2
3
4
5
6
7
1
2
3
4
5
6
7
1
2
3
4
5
6
7
1
2
3
4
5
6
7
1
COVER-MOTOR REVERSE
5433506
$31,80 Unit Price incl. VAT
2
SCREW(10)
7512052
Not Available
3
O-RING-COVER REVERSE
5411767
Not Available
4
SCR MACH 4-40X1.5(10)
7517768
Not Available
5
PLATE SWITCH REV W/BUSHING
5244294
Not Available
6
SWITCH ASM REV LIMIT
2410185
Not Available
7
MOTOR GEAR SPIREX ASM.
2410147
Not Available
8
SEAL OIL
3610042
Not Available
9
SCREW (10)
7517644
Not Available
10
WASHER LOCK(10)
7552613
Not Available
11
WASHER RUBBER(10)
7555870
$0,62 Unit Price incl. VAT
12
WASHER-.25X.75X.125 RBR
5811440
$3,35 Unit Price incl. VAT
13
BRKT MOTOR REV.
5243585
Not Available
14
PIN COTTER(10)
7661010
$1,56 Unit Price incl. VAT
15
LINKAGE REVERSE
5132362
Not Available
16
PIN ROLL .187X.75-SS
7661083
Not Available
17
WASHER FLAT S.S.(10)
7555837
$2,09 Unit Price incl. VAT
18
SCREW(10)
7511872
$4,08 Unit Price incl. VAT
19
SCREW(10)
7512056
Not Available
20
WASHER LOCK(10)
7552615
Not Available
21
PLATE CABLE
5240257
Not Available
22
NOZZLE STAT 0X4 1 SIPHON Substituted by 1350008
5131774
Not Available
23
BOLT S.S.(10)
7515368
$2,61 Unit Price incl. VAT
24
WASHER
7555874
$4,19 Unit Price incl. VAT
25
COLLAR
5020683
$10,70 Unit Price incl. VAT
26
GATE REVERSE DIRECTIONAL Substituted by 5434049
5631036
Not Available
27
WASHER(10)
7555866
$9,02 Unit Price incl. VAT
28
SCREW1/4-20X1.75HX(10)
7517749
Not Available
29
NUT NYLOK S.S.(10)
7542133
Not Available
30
ROD END 1/4-28X.375
7061062
$45,14 Unit Price incl. VAT
31
NUT S.S.(10)
7542150
Not Available
32
SEAL ROD
5411818
$4,82 Unit Price incl. VAT
33
CABLE REV SPIREX
7080828
Not Available
34
SEAL ROD
5411819
Not Available
35
NUT
7547001
$3,14 Unit Price incl. VAT
36
WASHER
1860103
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
