1
Engine displacement
900
2
Year
2017
3
Trim
RANGER HST
4
Parts Catalog

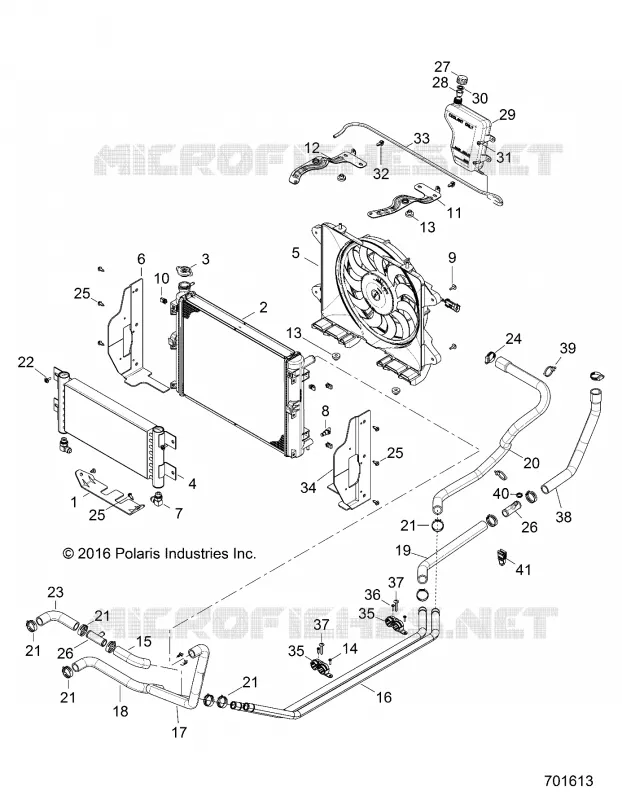

ENGINE, COOLING SYSTEM
5
Parts Diagram
Parts Catalog
ENGINE, CONNECTING ROD AND PISTON SET
by
ENGINE, OIL DIPSTICK AND GUARD
ENGINE, COOLING SYSTEM
7
8
22
10
11
12
13
13
14
15
16
17
18
19
20
21
21
21
21
21
22
23
24
25
25
25
25
26
26
27
28
29
30
31
32
33
34
35
35
36
37
37
38
39
40
41
1
SHROUD RADIATOR CENTER BLACK
5439647070
Not Available
2
RADIATOR CORE
1240690
$1 454,24 Unit Price incl. VAT
3
CAP
1240692
1240694
$73,49 Unit Price incl. VAT
4
COOLER OIL
1240723
$687,74 Unit Price incl. VAT
5
ASM. FAN SHROUD
2412474
$624,74 Unit Price incl. VAT
6
SHROUD RADIATOR FRONT RH BLACK
5439646070
$68,24 Unit Price incl. VAT
7
FITTING
3120080
$41,99 Unit Price incl. VAT
8
VALVE RADIATOR CORE DRAIN
7052557
$52,49 Unit Price incl. VAT
9
BOLT-M6X20MM
7519584
$17,84 Unit Price incl. VAT
10
CLIP-#U# M6.0X1.0
7547366
$9,44 Unit Price incl. VAT
11
MOUNT RADIATOR LH BLACK
5256596329
$89,24 Unit Price incl. VAT
12
MOUNT RADIATOR RH BLACK
5256597329
$89,24 Unit Price incl. VAT
13
GROMMET-FLANGED .36X.56X1.06
7052028
$11,54 Unit Price incl. VAT
14
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
15
HOSE LOWER TUBE [2P]
5414414
$68,24 Unit Price incl. VAT
16
TUBE COOLANT 1#
5137818
$68,24 Unit Price incl. VAT
17
HOSE UPPER RADIATOR
5414293
$83,99 Unit Price incl. VAT
18
HOSE LOWER RADIATOR [1P]
5414294
$31,49 Unit Price incl. VAT
19
HOSE ENGINE INNER
5415076
$68,24 Unit Price incl. VAT
20
HOSE ENGINE OUT
5415454
$68,24 Unit Price incl. VAT
21
SPRINGBAND-CLAMP 35/12 BLK
7080844
$19,94 Unit Price incl. VAT
22
BOLT-M6X20MM
7519584
$17,84 Unit Price incl. VAT
23
HOSE LOWER RADIATOR [2P]
5414415
$68,24 Unit Price incl. VAT
24
CLAMP-HOSE(WORM DR)25-40MM
7081192
$14,69 Unit Price incl. VAT
25
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
26
CONNECTOR-TEE 1X1X0.5
7052530
$10,49 Unit Price incl. VAT
27
CAP-OVER FLOW BOTTLE DRILLED
5430743
$10,49 Unit Price incl. VAT
28
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
$10,49 Unit Price incl. VAT
29
TANK-SURGE
5439202
$178,49 Unit Price incl. VAT
30
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
31
SCR-#14X1 HI/LO-PH-PN TRX-M
7518158
$9,44 Unit Price incl. VAT
32
CLIP-SILENCER BOX-C 98 INDY
7670102
$4,19 Unit Price incl. VAT
33
FUEL LINE-95 CENTIMETERS
845000395
8450003-1525
$136,49 Unit Price incl. VAT
34
SHROUD RADIATOR FRONT LH BLACK
5439294070
Not Available
35
BRACKET-COOLANT TUBE
5451221
$16,79 Unit Price incl. VAT
36
SCREW-#10X3/4-HI/LO-PN-T25 TRX-M
7512026
$2,09 Unit Price incl. VAT
37
SCR-TXTH-M6X1.0X50 8.8 ZPB
7519001
$7,34 Unit Price incl. VAT
38
HOSE ENGINE BYPASS
5415078
$68,24 Unit Price incl. VAT
39
CLIP-ROUTING
7081496
$9,44 Unit Price incl. VAT
40
CLAMP HOSE SPRING 20MM
7081719
$10,49 Unit Price incl. VAT
41
CLIP-EDGE 1-3MM 6-45MM SERT.
7081808
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
