1
Engine displacement
500
2
Year
2008
3
Trim
SPORTSMAN 500 EFI SCANDINAVIAN - A08MH50SS/SQ
4
Parts Catalog
REAR SUSPENSION
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION STRUT
by
TORSION BAR
REAR SUSPENSION
1
2
3
4
5
6
7
8
8
8
8
8
9
10
11
11
12
13
14
15
16
17
17
18
18
19
19
20
20
21
21
22
22
23
24
24
25
26
27
27
1
CARRIER-BEARING WHEEL (MACH)
5135563
$121,79 Unit Price incl. VAT
2
Bushing
5631142
5632291
$41,99 Unit Price incl. VAT
3
Bushing Control Lower
5434550
5438902
$8,39 Unit Price incl. VAT
4
WASHER FLAT
7555740
$3,14 Unit Price incl. VAT
5
WASHER LOCK
7552614
$3,14 Unit Price incl. VAT
6
Screw
7517873
$4,19 Unit Price incl. VAT
7
SCREW
7515415
$2,09 Unit Price incl. VAT
8
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
9
SHOCK REAR
7043100
$167,99 Unit Price incl. VAT
10
Cam Adjusting Spring
5630551
$68,24 Unit Price incl. VAT
11
Bushing A-Arm Short
5434548
5439270
$4,19 Unit Price incl. VAT
12
Spring Compression Rear Black [AC](If built before 9/06/04)
7043091067
$167,99 Unit Price incl. VAT
13
RETAINER-SPRING STEEL
5251753
$19,94 Unit Price incl. VAT
14
BOLT Substituted by 7515491
7515433
$3,14 Unit Price incl. VAT
15
Bracket A-Arm Pivot (If built after 5/05/03)
5247345
Not Available
16
SCR-3/8-16X3/4 HX FLNG-GR5-Y
7517632
$10,49 Unit Price incl. VAT
17
Shaft A-Arm. Short
5020826
$23,09 Unit Price incl. VAT
18
Arm Control Upper Black LH
1014320067
$178,49 Unit Price incl. VAT
18
Arm Control Upper Black RH
1014321067
$178,49 Unit Price incl. VAT
19
Bushing A-Arm Long
5434551
5436973
$9,44 Unit Price incl. VAT
20
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
21
SCREW
7512492
$2,09 Unit Price incl. VAT
22
Arm Control Lower Black LH
1015888067
$225,74 Unit Price incl. VAT
22
Arm Control Lower Black RH
1015889067
$225,74 Unit Price incl. VAT
23
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
24
SHIELD CV REAR RH MATTE BLACK
5435009070
$47,24 Unit Price incl. VAT
24
SHIELD CV REAR LH MATTE BLACK
5435008070
$47,24 Unit Price incl. VAT
25
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
26
Shaft A-Arm
5133806
$52,49 Unit Price incl. VAT
27
SCR-3/8-24X3 3/4 HX CP GR5-Y
7515472
$4,19 Unit Price incl. VAT

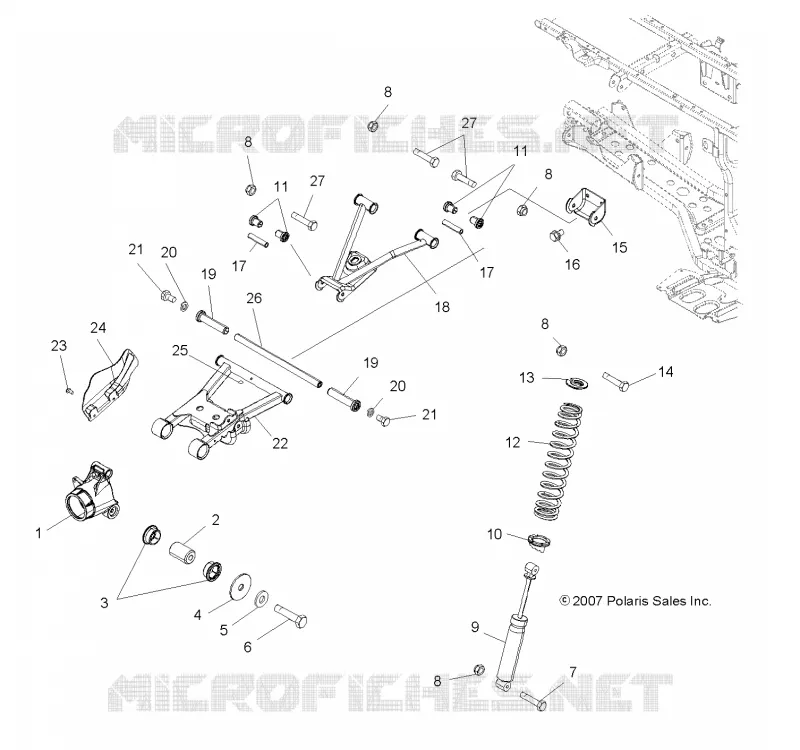

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
