1
Engine displacement
500
2
Year
2011
3
Trim
SCRAMBLER 500 4X4 INTL - A11NG50FA
4
Parts Catalog
ENGINE, OIL SYSTEM AND OIL TANK
5
Parts Diagram
Parts Catalog
EXHAUST
by
SHORT BLOCK

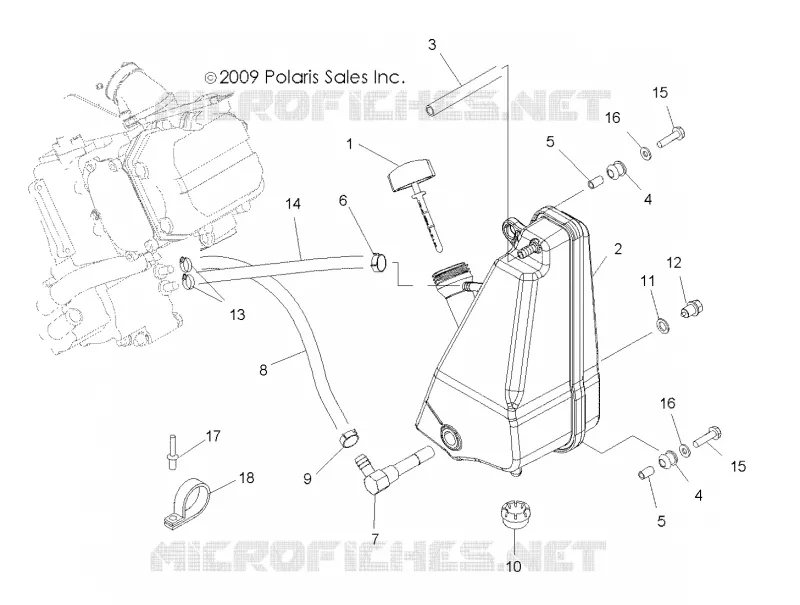

ENGINE, OIL SYSTEM AND OIL TANK
1
2
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
15
16
16
17
18
1
Dipstick
5434308
Not Available
2
Tank Oil
1261653
$509,24 Unit Price incl. VAT
3
Hose Breather Split
5413851
Not Available
4
GROMMET MTG RESERVOIR (10)
5410828
$7,34 Unit Price incl. VAT
5
Bushing
5333204
$41,99 Unit Price incl. VAT
6
Clamp Hose Spring .69 Inch
7080699
$3,14 Unit Price incl. VAT
7
Screen Oil Filter 90 Degree
7052326
$83,99 Unit Price incl. VAT
8
Hose Formed
5412227
$68,24 Unit Price incl. VAT
9
CLAMP-HOSE SPRING .81
7081026
$14,69 Unit Price incl. VAT
10
GROMMET
5412507
$12,59 Unit Price incl. VAT
11
WASHER
5850135
$5,76 Unit Price incl. VAT
12
PLUG MAG.12 M.
7051524
$62,99 Unit Price incl. VAT
13
CLAMP-HOSE .875-SS
7080474
$13,64 Unit Price incl. VAT
14
LINE BREATHER 3/8 ID.
8450073600
$136,49 Unit Price incl. VAT
15
SCR-1/4-20X1 1/4-TRIRD HX WH-Y
7512242
$4,19 Unit Price incl. VAT
16
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
17
RIVET-POP 3/16(.126-.250)-ST-B
7621432
$2,09 Unit Price incl. VAT
18
CLAMP-HOSE .625 DIA VNL COATED
7080880
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
