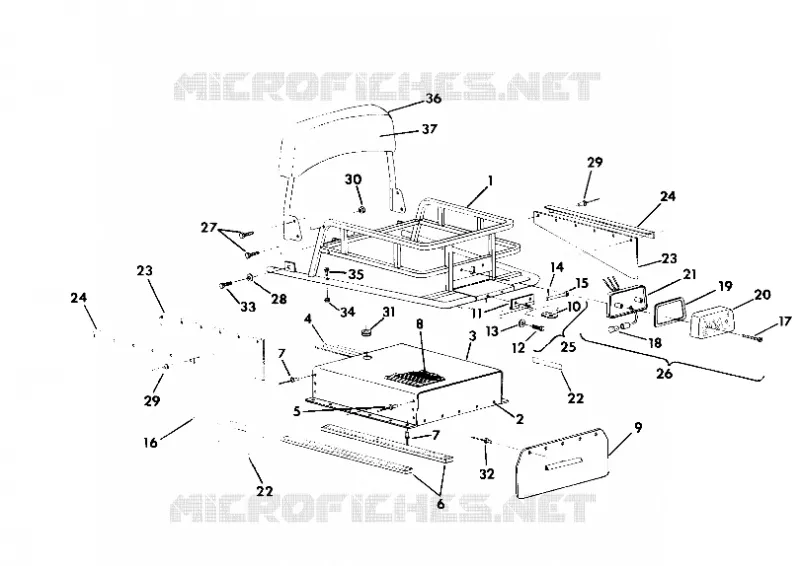

RACK/TUNNEL EXTENSION WIDETRAK (4921302130014A)
5
Parts Diagram
Parts Catalog
CONSOLE WIDETRAK (4921302130013A)
by
FRONT SUSPENSION AND SKI WIDETRAK (4921302130015A)
RACK/TUNNEL EXTENSION WIDETRAK (4921302130014A)
1
1
2
2
3
3
4
4
5
5
6
6
7
7
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
22
22
23
23
23
23
24
24
24
24
25
25
26
26
27
27
28
28
29
29
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
1
1
2
2
3
3
4
4
5
5
6
6
7
7
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
22
22
23
23
23
23
24
24
24
24
25
25
26
26
27
27
28
28
29
29
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
1
RACK BLK (W#TRAK)
1011758067
Not Available
2
PANEL TUNNEL BACK
5222325
Not Available
3
TUNNEL EXT.
5222324
Not Available
4
BRACKET HARNESS PROTECTOR
5222323
$47,24 Unit Price incl. VAT
5
RIVET (MONOBOLT) Substituted by 7661637
7661620
7661637
$2,09 Unit Price incl. VAT
6
STRIP WEAR EXT.
5222448
Not Available
7
RIVET CH. Q
7621429
$2,09 Unit Price incl. VAT
8
PROTECTOR BED
5410560
Not Available
9
FLAP SNOW(WIDETRAK)
5410553
$188,99 Unit Price incl. VAT
10
HITCH WELD BLK. Substituted by 2871178
1011624067
Not Available
11
HITCH WELD BLK.(U.S.)
1011518067
1011518-458
$54,59 Unit Price incl. VAT
12
SCREW(10) Substituted by 7512490
7512402
Not Available
13
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
7552603
$1,56 Unit Price incl. VAT
14
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
15
PIN CLEVIS
7662209
$17,84 Unit Price incl. VAT
16
DECAL REV/LOW RANGE [No Longer Available]
7072291
Not Available
17
SCREW-TAILLIGHT
4032029
$9,44 Unit Price incl. VAT
18
BULB TAILLIGHT
4030043
$12,59 Unit Price incl. VAT
19
GASKET TAILLIGHT
4032045
$7,34 Unit Price incl. VAT
20
LENS-TAILLIGHT
4032046
$62,99 Unit Price incl. VAT
21
BASE&SOCKET T/L
4032047
Not Available
22
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
23
SNOW FLAP-SIDE
5810222
Not Available
24
BRKT SNOW-FLAP
5220497067
Not Available
25
KIT HITCH [INCL. 8-13]
2870708
Not Available
26
TAILLIGHT ASM. (Incl. 17-21)
2432035
Not Available
27
SCREW PAN HD PHILLIPS(10) Substituted by 7515355
7515341
Not Available
28
WASHER(10)
5210697
Not Available
29
RIVET-POP3/16(.251-.375)AL-B
7621462
$2,09 Unit Price incl. VAT
30
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
31
GROMMET
5410437
$5,24 Unit Price incl. VAT
32
RIVET(50)
7621464
Not Available
33
BOLT(10)
7515481
$4,71 Unit Price incl. VAT
34
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
35
SCREW(10)
7512222
$4,19 Unit Price incl. VAT
36
BACKREST ASM.
2681465
Not Available
37
COVER BACKREST
2681265
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
