1
Engine displacement
1000
2
Year
2022
3
Trim
RANGER CREW XP 1000 WATERFOWL EVAP
4
Parts Catalog

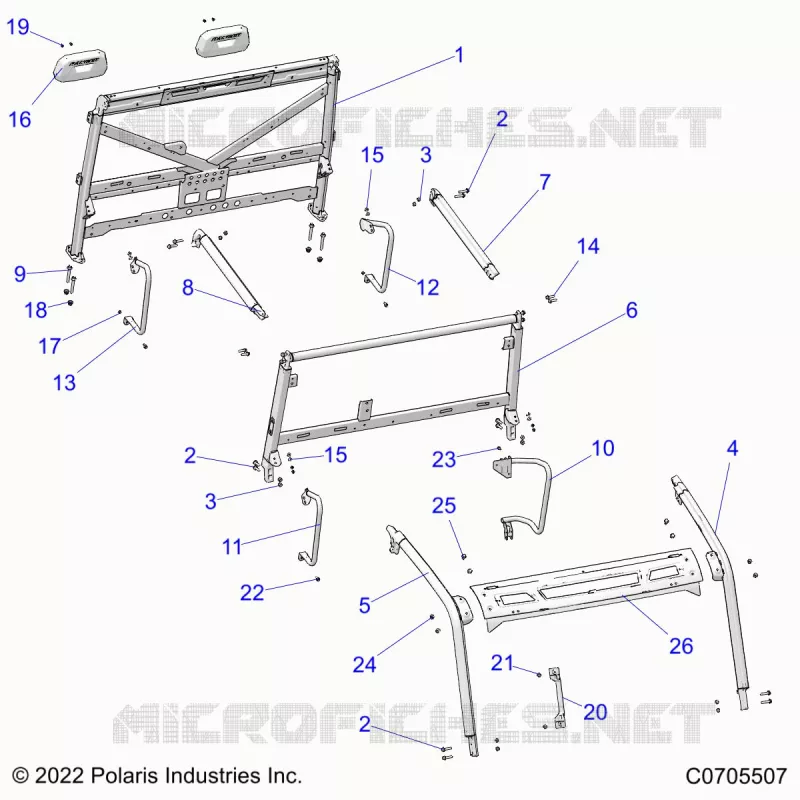

CHASSIS, CAB FRAME
5
Parts Diagram
Parts Catalog
BRAKES, REAR CALIPER
by
CHASSIS, MAIN FRAME AND SKID PLATES
CHASSIS, CAB FRAME
1
2
2
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
1
WELD-CAB FRAME REAR M. BLK
1022909458
$1 910,99 Unit Price incl. VAT
2
SCR-HXFL-M10X1.5X45 10.9 RIE
7519906
$9,44 Unit Price incl. VAT
3
NUT-HEX-M10X1.5 10 ZB3 NYL
7547746
$5,24 Unit Price incl. VAT
4
WELD-CAB FRAME FRT LH BLK
1023336458
$608,99 Unit Price incl. VAT
5
WELD-CAB FRAME FRT RH BLK
1023337458
$608,99 Unit Price incl. VAT
6
WELD-CAB FRAME CTR M.BLK
1026748458
1029220-458
$782,24 Unit Price incl. VAT
7
WELD-CAB FRAME REAR LH BLK
1023338458
$188,99 Unit Price incl. VAT
8
WELD-CAB FRAME REAR RH BLK
1023339458
$188,99 Unit Price incl. VAT
9
SCR-SHXFL-M12X1.75X90 10.9 ZPC
7518705
$16,79 Unit Price incl. VAT
10
WELD-BOLSTER SEAT M.BLK
1024839458
$167,99 Unit Price incl. VAT
11
WELD-BOLSTER FRONT RH M.BLK
1024888458
$104,99 Unit Price incl. VAT
12
WELD-BOLSTER LH M.BLK
1024803458
$125,99 Unit Price incl. VAT
13
WELD-BOLSTER RH M.BLK
1024804458
$125,99 Unit Price incl. VAT
14
SCREW-M10X1.50X35 HX/FL-Y/D
7518334
$9,44 Unit Price incl. VAT
15
SCR-TXTH-M6X1.0X25 ZFB
7519650
$7,34 Unit Price incl. VAT
16
HEADREST BLACK
5439110070
$120,74 Unit Price incl. VAT
17
NUT-HEX-M8X1.25 8 ZPB.
7547076
$4,19 Unit Price incl. VAT
18
NUT-HXFL M12X1.75 8 ZOD NYL
7547441
$9,44 Unit Price incl. VAT
19
RIVET-POP 3/16 (.376-.500) AL-LFB
7621460
$2,09 Unit Price incl. VAT
20
HANDLE-GRAB ROPS BLK
5450844070
$62,99 Unit Price incl. VAT
21
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
$4,19 Unit Price incl. VAT
22
SCREW-HXFL-M8X1.25X20 8.8 ZOD P3
7519133
$3,14 Unit Price incl. VAT
23
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
24
NUT-HXFL-M10X1.5 8 ZB3 NYL
7520117
$12,59 Unit Price incl. VAT
25
SCR-HXFL-M10X1.5X20 10.9 RIE P
7519905
$4,19 Unit Price incl. VAT
26
K-PLATE WSHLD MNT UPR RGR CREW [INCL. DECALS]
2209718
$388,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
