Parts Catalog
CRANKCASE
5
Parts Diagram
Parts Catalog
by
BUMPER / RACKSS
CRANKCASE
1
2
3
3
4
5
6
7
22
9
10
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
1
Protector A
0450166
Not Available
2
Filter
0450164
$15,00 Unit Price incl. VAT
3
PIN DOWEL
0450142
$7,34 Unit Price incl. VAT
4
Gasket Crankcase Cover LH
0450141
$57,74 Unit Price incl. VAT
5
Cover Clutch
0451671
Not Available
6
Screw Socket Hex
0450148
$7,34 Unit Price incl. VAT
7
Bracket Oil Seal
0450157
Not Available
8
Bolt Socket Hex
0450158
$10,49 Unit Price incl. VAT
9
Gasket Generator
0450159
$14,69 Unit Price incl. VAT
10
Bolt Socket
0450138
Not Available
11
Plug Rubber
0450170
$10,49 Unit Price incl. VAT
12
Asm. Crankcase
0454187
Not Available
13
Pin Dowel
0450137
$3,98 Unit Price incl. VAT
14
Breather Crankcase Upper
0452127
$13,64 Unit Price incl. VAT
15
Bearing Needle
0450254
$40,94 Unit Price incl. VAT
16
Shaft Primary Drive
0452130
Not Available
17
BEARING
0450199
$54,59 Unit Price incl. VAT
18
Bolt Hex Washer Face
0450298
$4,19 Unit Price incl. VAT
19
Bolt Hex Washer Face
0450684
$9,44 Unit Price incl. VAT
20
Mount Engine Rear
0452131
Not Available
21
Bushing Rubber
0450132
Not Available
22
Bolt Socket Hex
0450158
$10,49 Unit Price incl. VAT
23
WASHER PLAIN
0450041
$9,44 Unit Price incl. VAT
24
Circlip External
0450198
$9,44 Unit Price incl. VAT
25
Seal Oil
0450200
$20,99 Unit Price incl. VAT
26
Bearing Needle
0452139
$34,64 Unit Price incl. VAT
27
BUSHING RUBBER
0451139
$13,64 Unit Price incl. VAT
28
Breather Crankcase Lower
0452125
$20,99 Unit Price incl. VAT
30
BALL STEEL
0452134
$10,49 Unit Price incl. VAT
31
SPRING DETENT
0452135
$2,51 Unit Price incl. VAT
32
WASHER FLAT
0452136
$7,34 Unit Price incl. VAT
33
Bolt Hex
0452137
$13,64 Unit Price incl. VAT
34
Bolt Hex Washer Face
0452126
$9,44 Unit Price incl. VAT
35
O-RING GEAR POSITION SENSOR
0452129
$3,14 Unit Price incl. VAT
36
SENSOR GEAR POSITION
0452128
0455508
$62,99 Unit Price incl. VAT
37
Bolt Hex Flange
0452138
$6,29 Unit Price incl. VAT
38
Ring Snap Internal
0450162
$10,49 Unit Price incl. VAT
39
BOLT DRAIN PLUG
0452132
$9,44 Unit Price incl. VAT
40
WASHER FLAT
0452133
$7,34 Unit Price incl. VAT
41
Bolt Flat Head Phillips
0450167
$9,44 Unit Price incl. VAT
42
Grommet
0450168
Not Available
43
Gaurd Clutch Cover
0451672
Not Available
44
Nut Hex Flange
0450150
$2,09 Unit Price incl. VAT
45
Protector B
0450152
Not Available
46
Bolt Socket Hex
0450151
Not Available
47
Bracket Carburetor Tube
0450160
0455052
$9,44 Unit Price incl. VAT
48
Shaft Pin
0450147
Not Available

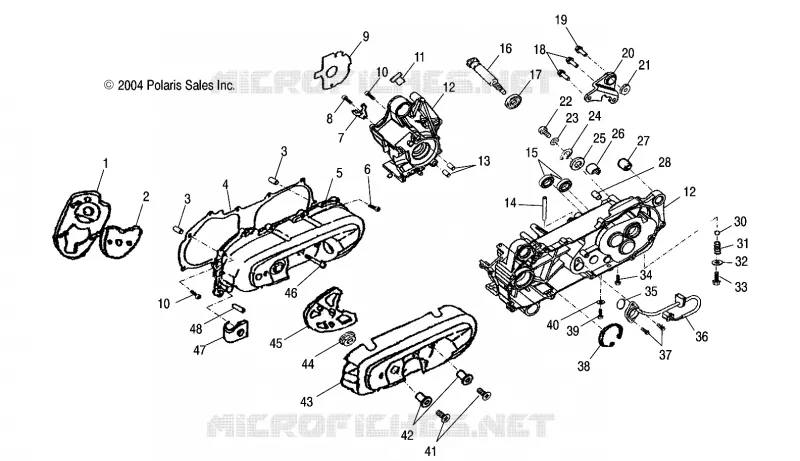

Find the detailed CRANKCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
