Parts Catalog

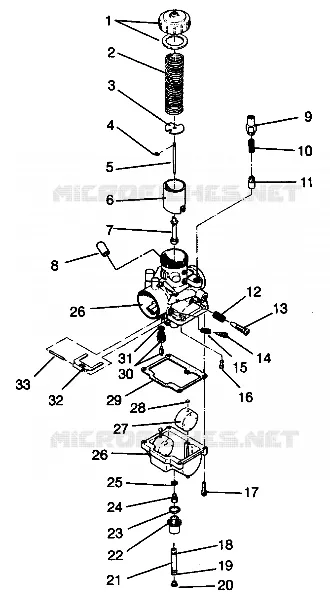

CARBURETOR LITE 0943433 AND LITE DELUXE 0943431 (4924992499037A)
5
Parts Diagram
Parts Catalog
PISTON CRANKSHAFT STARLITE 0943427 (4924992499036A)
by
MAGNETO ASSEMBLY STARLITE 0943427 (4924992499042A)
CARBURETOR LITE 0943433 AND LITE DELUXE 0943431 (4924992499037A)
1
TOP MIX CHAMBER (Incl. 3)
3130060
Not Available
2
SPRING THROTTLE
3130354
$62,99 Unit Price incl. VAT
3
PLATE THROTTLE
3130002
$47,24 Unit Price incl. VAT
4
E RING(10) Substituted by 3130508
3130003
3130508
$12,59 Unit Price incl. VAT
5
JET NEEDLE Substituted by 3130155
3130356
3130155
$52,49 Unit Price incl. VAT
6
VALVE THROTTLE 2.5 (2.5AL)
3130468
$73,49 Unit Price incl. VAT
7
NEEDLE JET O-6 (169)
3130469
$68,24 Unit Price incl. VAT
8
CAP
3130479
$31,49 Unit Price incl. VAT
9
CAP PLUNGER
3130359
$31,49 Unit Price incl. VAT
10
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
11
ASM. PLUNGER
3130328
$68,24 Unit Price incl. VAT
12
SPRING THROTTLE ADJUSTER
3130010
$18,89 Unit Price incl. VAT
13
SCREW THROTTLE STOP
3130324
$36,74 Unit Price incl. VAT
14
SCREW AIR
3130011
$36,74 Unit Price incl. VAT
15
SPRING AIR ADJUST
3130012
$18,89 Unit Price incl. VAT
16
JET PILOT #35(10)
3130066
$18,89 Unit Price incl. VAT
17
ASM. SCREW AND WASHER
3130025
$6,29 Unit Price incl. VAT
18
CLAMP
7080236
$3,14 Unit Price incl. VAT
19
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
20
TRAP-PLUG Substituted by 5431893
5431820
5431893
$26,24 Unit Price incl. VAT
21
FUELLINE 600CM 5/16 ID.
8450057600
Not Available
22
FITTING SEDIMENT Substituted by 3130573
5020476
$18,68 Unit Price incl. VAT
23
O-RING
3130239
Not Available
24
JET MAIN #145 Substituted by 3130112
3130351
Not Available
25
WASHER
3130014
$3,14 Unit Price incl. VAT
26
CARBURETOR (LITE) Substituted by 3130688 (Incl. 1-16 21-32)
3130467
Not Available
27
FLOAT ASM
3130021
$83,99 Unit Price incl. VAT
28
CAP
3130237
$8,39 Unit Price incl. VAT
29
GASKET FLOAT CHAMBER
3130020
$31,49 Unit Price incl. VAT
30
VALVE NEEDLE Substituted by 3131146
3130016
3131146
$99,74 Unit Price incl. VAT
31
PACKING NEEDLE VALVE
3130017
$7,34 Unit Price incl. VAT
32
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
33
PIN FLOAT
3130043
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
