1
Engine displacement
500
2
Year
2004
3
Trim
500 WIDETRAK LX
4
Parts Catalog
STEERING
5

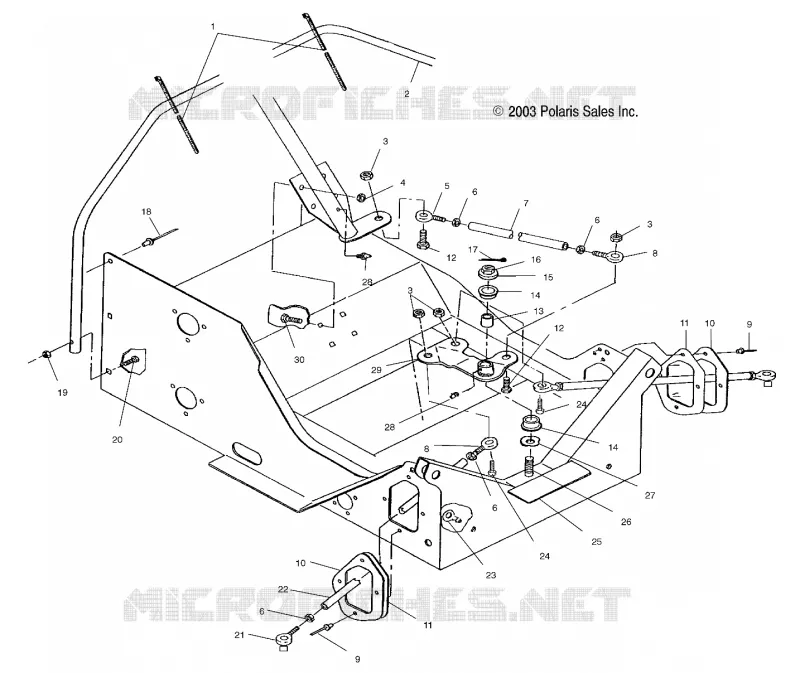

Parts Diagram
Parts Catalog
SKI
by
STEERING HANDLEBAR
STEERING
1
2
3
3
3
4
5
6
6
6
6
6
6
6
6
7
8
8
9
9
10
10
11
11
12
12
13
14
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
28
29
30
1
CABLE TIE RELEASABLE
7080804
$6,29 Unit Price incl. VAT
2
HOOP STEERING BLK
1012729067
$204,74 Unit Price incl. VAT
3
Nut
7542403
Not Available
4
NUT FLEX-LOC(10)
7542303
$11,54 Unit Price incl. VAT
5
ROD END RH
7060167
$99,74 Unit Price incl. VAT
6
NUT-3/8-24-(L.H.)-Y
7542424
$1,56 Unit Price incl. VAT
6
NUT-3/8-24-2B-Z
7542401
$4,19 Unit Price incl. VAT
7
ROD DRAG LINK
5334113067
$83,99 Unit Price incl. VAT
8
ROD END LH
7060166
$99,74 Unit Price incl. VAT
9
RIVET-POP 5/32(.251-.375)-ST-B
7621323
$2,09 Unit Price incl. VAT
10
PLATE BOOT SEAL
5222942067
$19,94 Unit Price incl. VAT
11
BOOT TIE ROD
5410761
$26,24 Unit Price incl. VAT
12
BOLT(10)
7515528
$15,74 Unit Price incl. VAT
13
BUSHING
5010463
$16,79 Unit Price incl. VAT
14
BUSHING
3563907
$7,34 Unit Price incl. VAT
15
WASHER
7555721
$2,09 Unit Price incl. VAT
16
NUT FLEX (10)
7542703
Not Available
17
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
18
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
19
NUT FLEXLOC
7542103
$10,49 Unit Price incl. VAT
20
BOLT-CARRIAGE(10)
7512275
$7,34 Unit Price incl. VAT
21
ROD END RH
7060174
$99,74 Unit Price incl. VAT
22
TIE ROD
5020878
$73,49 Unit Price incl. VAT
23
CLIP ROSEBUD
4020139
$9,44 Unit Price incl. VAT
24
BOLT
7515540
$9,44 Unit Price incl. VAT
25
BLOCK-STEERING CAST
5630563
$62,99 Unit Price incl. VAT
26
SCREW
7512682
Not Available
27
WASHER-WAVE 7/8X1X.010
7555735
$7,34 Unit Price incl. VAT
28
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
29
STRG.ASM CTR.
1822217
$115,49 Unit Price incl. VAT
30
SCR-RHCAR-5/16-18X0.75GR5ZY3
7517428
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
