Engine displacement
500
2
Year
2004
3
Trim
a04ch50aa-sportsman-500-a04ch50aaacaeag
4
Parts Catalog
FRAME
5

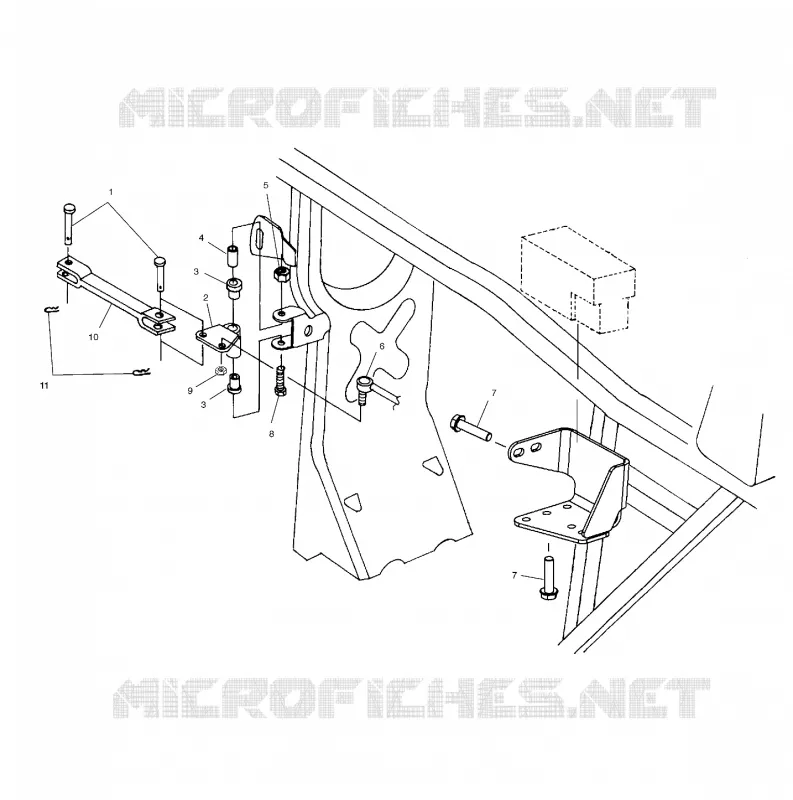

Parts Diagram
Parts Catalog
CONTROLS-THROTTLE ASM/CABLE
by
REAR CALIPER
FRAME
1
2
3
3
4
5
9
7
7
8
9
10
11
1
1
2
3
4
5
9
7
8
9
1
PIN CLEVIS
7661013
$10,49 Unit Price incl. VAT
2
PIVOT SHIFT BLK
1040494067
Not Available
3
BUSHING-PEDAL PIVOT
5431107
$16,79 Unit Price incl. VAT
4
TUBE PIVOT (INTERNAL)
5020850
$57,74 Unit Price incl. VAT
5
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
8
SCREW(10)
7512144
Not Available
10
ARM SHIFT (MACH)
5131277
Not Available
11
PIN COTTER(10)
7661103
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
