1
Engine displacement
600
2
Year
2003
3
Trim
600 / 700 / 800 PRO X
4
Parts Catalog

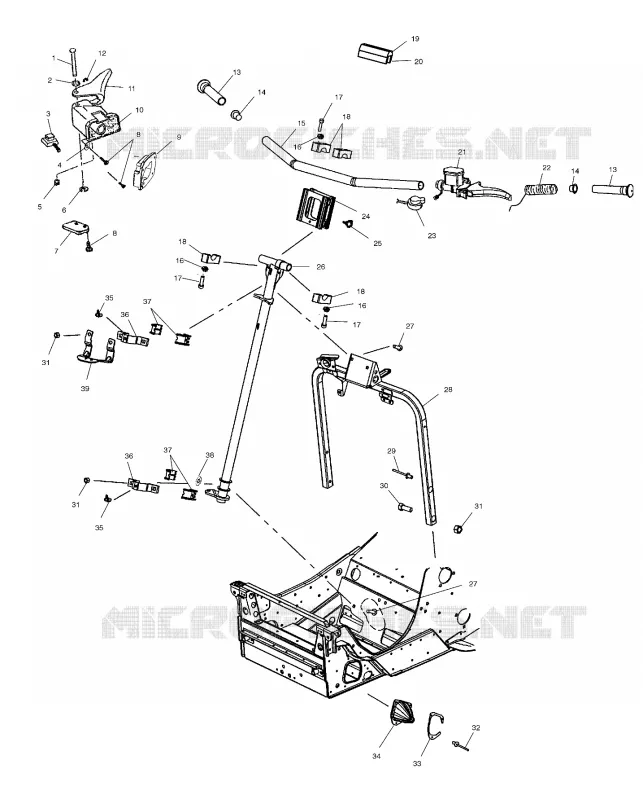

STEERING HANDLEBAR
5
Parts Diagram
Parts Catalog
STEERING
by
COOLING SYSTEM (600)
STEERING HANDLEBAR
1
2
3
4
5
6
10
8
8
9
10
10
11
11
12
13
13
14
14
15
16
16
16
17
17
17
18
18
18
19
20
21
22
23
24
25
26
27
27
28
29
30
31
31
31
32
33
34
34
35
35
36
36
37
37
38
39
1
PIN RETAINING
7661624
$23,09 Unit Price incl. VAT
2
WASHER
7555730
$7,34 Unit Price incl. VAT
3
SWITCH AUX.SHUT-OFF
4110106
$141,74 Unit Price incl. VAT
4
WSHR-11/64X3/8X1/32-Y
7555727
$1,04 Unit Price incl. VAT
5
SCR-SHSEMS-3/8-16X0.375 GR8 Z
7512465
$7,34 Unit Price incl. VAT
6
RING RETAINING
7710401
$7,34 Unit Price incl. VAT
7
HOLDER WIRE
5432261
$47,24 Unit Price incl. VAT
8
SCR-6X3/8 PH TR HD GR5-Y
7511848
$7,34 Unit Price incl. VAT
9
ADAPTOR BLOCK
5430604
$26,24 Unit Price incl. VAT
10
HOLDER WIRE
5432261
$47,24 Unit Price incl. VAT
10
BLOCK THROTTLE/BRAKE
5431592
$73,49 Unit Price incl. VAT
11
LEVER THROTTLE LEVER ONLY
5432970
$52,49 Unit Price incl. VAT
11
LEVER ASM HTR HI/LO 35.5MM
2010171
$157,49 Unit Price incl. VAT
12
RING RETAINING
7710503
$7,34 Unit Price incl. VAT
13
GRIP H#BAR SNOW
5432634
$52,49 Unit Price incl. VAT
14
PLUG-OVERFLOW 8X (RED)
5431096
$3,66 Unit Price incl. VAT
15
Handlebar
5246007067
Not Available
16
WASHER(10) Substituted by 7558402
7555770
7558402
$1,56 Unit Price incl. VAT
17
SCR-HH-5/16-18X1.75 GR5 ZY3
7512329
$7,34 Unit Price incl. VAT
18
CLAMP HANDLEBAR RETAINER
5631311
$18,89 Unit Price incl. VAT
19
Cover Handlebar
2682949
2688210
$157,49 Unit Price incl. VAT
20
PAD HANDLEBAR
5812322
$83,99 Unit Price incl. VAT
21
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
22
GRIP-HEATER ASM HI/LOW
2460311
$115,49 Unit Price incl. VAT
23
Switch Dimmer
4110107
$115,49 Unit Price incl. VAT
24
Block Riser
5133287
Not Available
25
CLIP ROSEBUD
4020139
$9,44 Unit Price incl. VAT
26
Post Steering
1821348067
$211,56 Unit Price incl. VAT
27
BOLT CARRIAGE
7512331
$7,34 Unit Price incl. VAT
28
Hoop Steering
1014120067
Not Available
29
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
30
SCR-RHCAR-5/16-18X0.75 GR5 ZY3
7512377
$9,44 Unit Price incl. VAT
31
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
32
RIVET
7621433
$2,09 Unit Price incl. VAT
33
PLATE TIE ROD BOOT
5244470
Not Available
34
BOOT TIE ROD L.H.
5433532
Not Available
34
BOOT TIE ROD R.H.
5433533
Not Available
35
FITTING ZERK 90 DEGREE
7080510
$10,49 Unit Price incl. VAT
36
BRACKET STEERING POST
5132967
$68,24 Unit Price incl. VAT
37
Bushing Steering Post
5434775
$11,54 Unit Price incl. VAT
38
NUT-5/16-PAL-Y
7547030
$9,44 Unit Price incl. VAT
39
Bracket Console Support
5247077
$38,42 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
