1
Engine displacement
600
2
Year
2003
3
Trim
600 / 700 / 800 PRO X
4
Parts Catalog

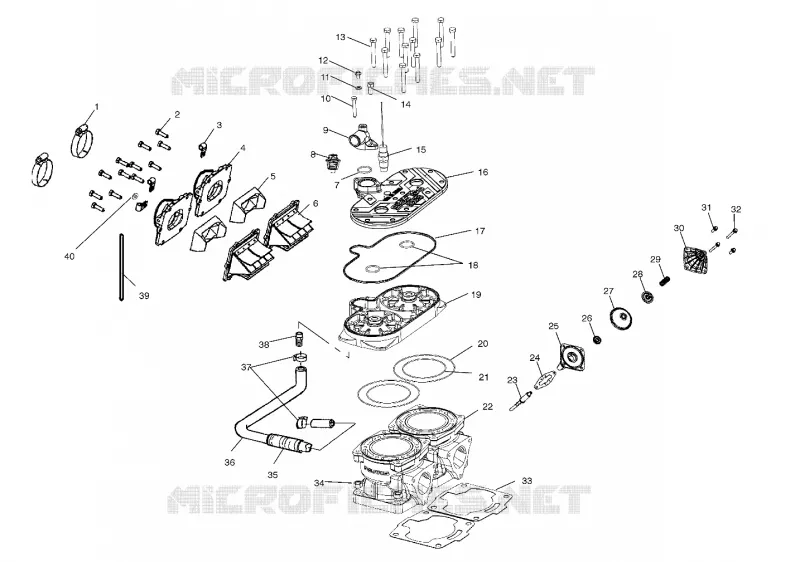

CYLINDER (800)
5
Parts Diagram
Parts Catalog
CYLINDER (700)
by
WATER PUMP/OIL PUMP (600)
CYLINDER (800)
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
CLAMP HOSE
7080681
$17,84 Unit Price incl. VAT
2
SCR-M6X1.0X22.0 HX/FL-Y/D
7517398
$6,29 Unit Price incl. VAT
3
CLAMP-HOSE .312DIA VINYL COAT
7080683
$4,19 Unit Price incl. VAT
4
Adapter Carb
1253485
Not Available
5
STUFFER-REED BLOCK NOK
5433151
Not Available
6
VALVE REED
1201825
Not Available
7
O-RING
5411521
$36,74 Unit Price incl. VAT
8
THERMOSTAT-120°F W/O BYPASS
7052258
7052433
$89,24 Unit Price incl. VAT
9
COVER-THERMOSTAT M6 BLEED LG
5630992
Not Available
10
SCR-M6X1.0X45 HX-FL-Y/D
7517950
$10,49 Unit Price incl. VAT
11
WASHER-FLAT 6.15X12X1MM-AL
7555998
$2,09 Unit Price incl. VAT
12
SCREW
7517679
$25,19 Unit Price incl. VAT
13
SCREW M8X1.25X60(10)
7517534
$8,39 Unit Price incl. VAT
14
SCREW-M6X1.0X20-HX/FL-Y/D
7516822
$4,19 Unit Price incl. VAT
15
SENSOR-THERMISTER ESX8477A Substituted by 4010614
4010398
$73,49 Unit Price incl. VAT
16
Cover Head
5631202366
$185,84 Unit Price incl. VAT
17
SEAL RUBBER MLDD HEAD
5411294
Not Available
18
O-RING(10)
5410917
$1,56 Unit Price incl. VAT
19
Head Cylinder
3021324
Not Available
20
O-Ring
5412232
$11,54 Unit Price incl. VAT
21
O-RING-3.625X3.765X.07 HI-TMP
5411675
$41,99 Unit Price incl. VAT
22
Cylinder
3021339
Not Available
23
Valve Guillotine
5133775
2202838
$283,49 Unit Price incl. VAT
24
Gasket
5812350
5815584
$11,54 Unit Price incl. VAT
25
Asm. Base
1202216
Not Available
26
WASHER-BELLOWS EXH VALVE DOM
5132950
5135163
$8,39 Unit Price incl. VAT
27
Bellows Exhaust Valve
5412147
5414495
$89,24 Unit Price incl. VAT
28
Cap/Nut
5631381
5631687
$52,49 Unit Price incl. VAT
29
Spring
704178611
Not Available
30
Housing Bellows
5434599
1202640
$27,29 Unit Price incl. VAT
31
SCR-M6X1.0X16.0 HX/FL-Y/D
7516820
$10,49 Unit Price incl. VAT
32
SCR-M6X1.0X50.0 HX/FL-Y/D
7517932
$7,34 Unit Price incl. VAT
33
Gasket Cylinder Base
5812363
Not Available
34
NUT-M10X1.25-HX/FL
7547013
$3,14 Unit Price incl. VAT
35
CONDUIT FLEX(.75#ID)
552139896
$9,23 Unit Price incl. VAT
36
HOSE BYPASS
5411536
Not Available
37
Clamp
7081030
$11,54 Unit Price incl. VAT
38
FITTING
7052222
$41,99 Unit Price incl. VAT
39
RETAINER SS.
7080654
$29,39 Unit Price incl. VAT
40
WASHER(10)
7555836
$6,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
