1
Engine displacement
500
2
Year
2011
3
Trim
SCRAMBLER 500 4X4 INTL - A11NG50FA
4
Parts Catalog

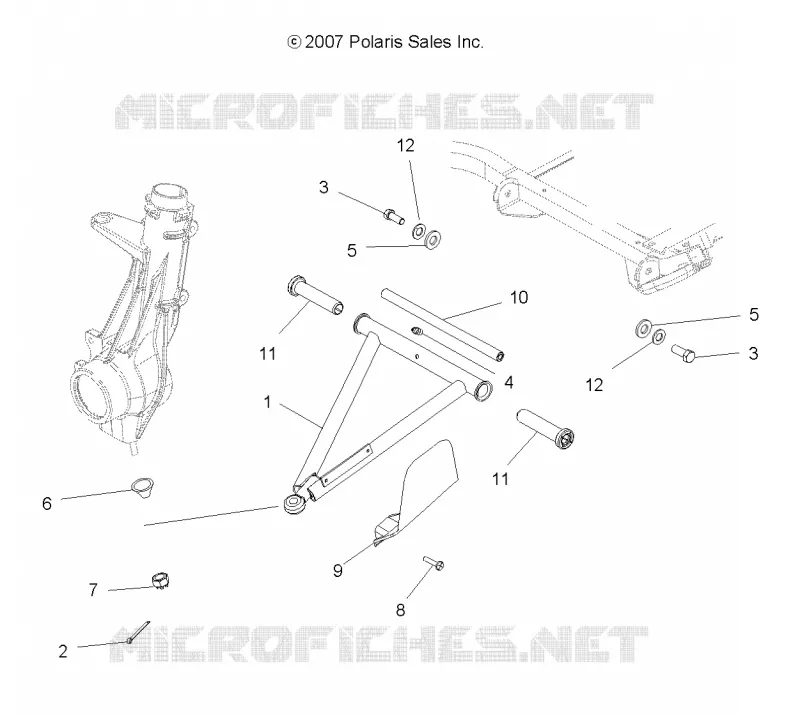

SUSPENSION, A-ARM AND STRUT MOUNTING
5
Parts Diagram
Parts Catalog
STEERING POST
by
WHEELS, FRONT
SUSPENSION, A-ARM AND STRUT MOUNTING
1
1
2
3
3
4
5
5
6
7
8
9
9
10
11
11
12
12
1
Kit A-Frame LH [Incl. 6 22 23 25 26]
2202284067
$241,49 Unit Price incl. VAT
1
Kit A-Frame RH [Incl. 6 22 23 25 26]
2202285067
$241,49 Unit Price incl. VAT
2
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
3
SCREW
7512492
$2,09 Unit Price incl. VAT
4
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
5
Washer .105
7555832
$4,19 Unit Price incl. VAT
6
BOOT-BALLJOINT GREASELESS STRT
5412658
$9,44 Unit Price incl. VAT
7
NUT-3/8-24 HX CA GR5-Y
7542438
$3,14 Unit Price incl. VAT
8
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
9
Shield CV Joint LH
5431150070
$47,24 Unit Price incl. VAT
9
Shield CV Joint RH
5431149070
$47,24 Unit Price incl. VAT
10
Shaft A-Arm
5133806
$52,49 Unit Price incl. VAT
11
Bushing A-Arm Long
5434551
5436973
$9,44 Unit Price incl. VAT
12
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
