1
Engine displacement
550
2
Year
2014
3
Trim
sportsman-x2-550-eps-a14tn5eaaead
4
Parts Catalog
FRONT BRAKE CALIPER
5
Parts Diagram
Parts Catalog
FRONT BRAKE BRAKE LEVER AND MASTER CYLINDER
by
REAR BRAKE CALIPER

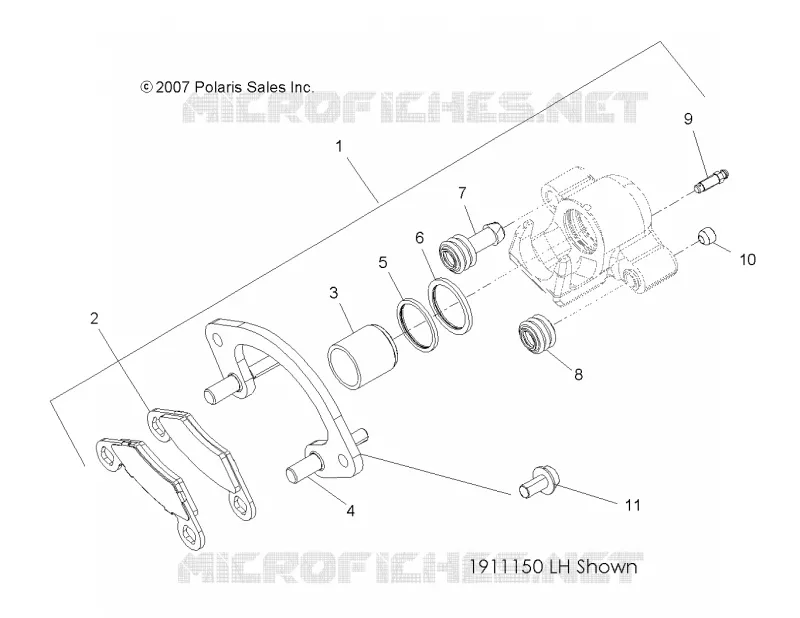

FRONT BRAKE CALIPER
1
1
2
3
4
5
6
7
8
9
10
11
1
2
3
3
4
4
5
6
7
7
8
9
10
11
1
ASM. CALIPER BRAKE FRONT LH [INCL. 1-10]
1911150
$509,24 Unit Price incl. VAT
1
ASM. CALIPER BRAKE FRONT RH [INCL. 1-10]
1911151
$509,24 Unit Price incl. VAT
2
KIT BRAKE PAD [INCL. 2 PADS]
2203628
2204088
$49,13 Unit Price incl. VAT
3
PISTON-BRAKE LONG Substituted by 1930665
5132294
1930665
$104,99 Unit Price incl. VAT
4
ASM. CALIPER MOUNT
1911225
$73,49 Unit Price incl. VAT
5
SQUARE RING-MOLDED (.094)
5410779
$19,94 Unit Price incl. VAT
6
SQUARE RING MOLDED (.103 X .134)
5410780
$19,94 Unit Price incl. VAT
7
BOOT-PIN BUSHING
5412505
$6,29 Unit Price incl. VAT
8
BOOT-PIN SEAL
5412506
$6,29 Unit Price incl. VAT
9
SCR-M7X1.0 BLEEDER OLIVE D
7081343
$10,49 Unit Price incl. VAT
10
SCR-M10X1.0X8 SOC SET-OD
7518863
$17,84 Unit Price incl. VAT
11
SCR-HXFL-M10X1.25X25 8.8 Z NY
7518760
$17,84 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
