1
Engine displacement
500
2
Year
1989
3
Trim
nor-500-n890764
4
Parts Catalog
CYLINDER 500 AND 500 CLASSIC (4915411541035A)
5
Parts Diagram
Parts Catalog
CYLINDER 400 (4915411541034A)
by
MAGNETO 400 (4915411541040A)

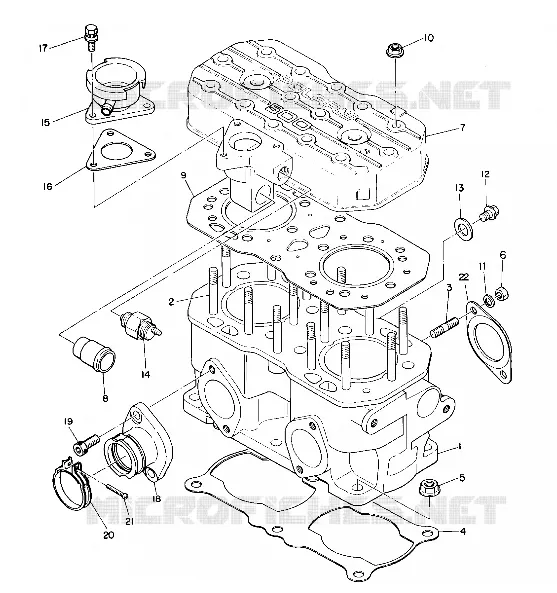

CYLINDER 500 AND 500 CLASSIC (4915411541035A)
1
CYLINDER (Incl. 2 3)
3083958
Not Available
2
STUD Substituted by 3083360
3083074
Not Available
3
STUD (10)
3080016
$9,23 Unit Price incl. VAT
4
GASKET CYLINDER Substituted by 3083959
3083469
$94,49 Unit Price incl. VAT
5
NUT FLANGE
3082911
7547013
$3,14 Unit Price incl. VAT
6
NUT(10)
3080285
Not Available
7
HEAD CYLINDER (Incl. 8)
3083960
$455,69 Unit Price incl. VAT
8
PIPE WATER (Water)
3083452
Not Available
9
GASKET HEAD Substituted by 3084332
3083961
Not Available
10
NUT-FLANGE(10)
3082910
Not Available
11
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
12
PLUG Substituted by 3084491
3083044
Not Available
13
GASKET-ALUM Substituted by 3084492
3082719
$7,34 Unit Price incl. VAT
14
SWITCH THERMAL(93 DEG.C.)
3083055
Not Available
15
NECK FILLER
3083398
Not Available
16
GASKET FILLER NECK
3083340
Not Available
17
BOLT&WASHER ASM.
3083361
Not Available
18
ADAPTER Substituted by 3084325
3083171
Not Available
19
BOLT SOCKET HEAD
3081330
$7,34 Unit Price incl. VAT
20
ASM. BAND ADAPTOR [INCL. 9]
3083166
7082340
$36,74 Unit Price incl. VAT
21
SCREW Substituted by 3081497
3083086
$4,19 Unit Price incl. VAT
22
GASKET EXHAUST Substituted by 3084439
3082510
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
