1
Engine displacement
440
2
Year
1997
3
Trim
440 L/C - 0972760
4
Parts Catalog

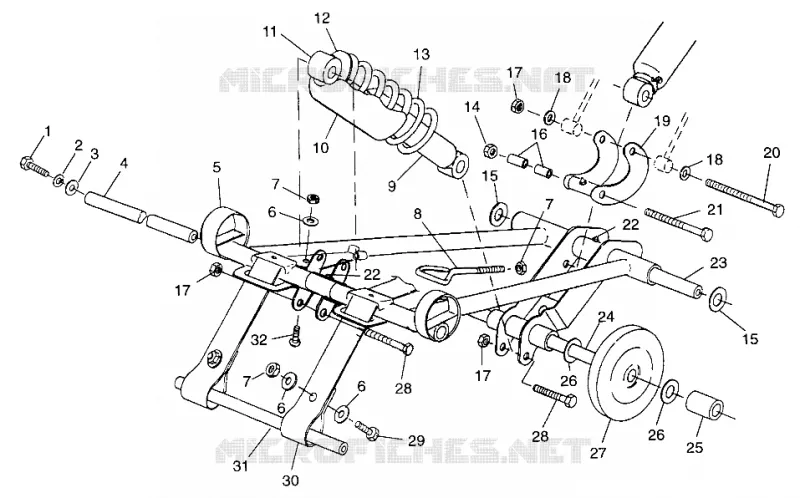

FRONT TORQUE ARM 440 LC 0972760 (4938353835B010)
5
Parts Diagram
Parts Catalog
RAIL MOUNTING (SUSPENSION) 440 LC 0972760 (4938353835B009)
by
REAR TORQUE ARM 440 LC 0972760 (4938353835B011)
FRONT TORQUE ARM 440 LC 0972760 (4938353835B010)
1
2
3
4
5
6
6
6
7
7
7
8
9
10
11
12
13
14
15
15
16
16
16
16
17
17
17
18
18
19
20
21
22
22
23
23
25
26
26
23
28
28
29
30
23
32
1
BOLT(10)
7515526
7517731
$2,09 Unit Price incl. VAT
2
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
3
WASHER
7555983
7555893
$1,56 Unit Price incl. VAT
4
SHAFT MTG REAR
5020570
Not Available
5
ARM F.TORQUE X-10 Substituted by 1541203-067
1541140067
Not Available
6
WASHER-.328X1.25X16GA FL-Y
7555716
$3,14 Unit Price incl. VAT
7
NUT FLANGE
7542321
$2,09 Unit Price incl. VAT
8
BOLT EYE
7010050
Not Available
9
RETAINER SPRING Substituted by 5245067
5241276067
5245067
$41,99 Unit Price incl. VAT
10
SHIELD SPRING
5430671
$47,24 Unit Price incl. VAT
11
SHOCK FR.TRACK Substituted by 7041743
7041430
Not Available
12
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
13
SPRING BLACK COMP.
7041253067
Not Available
14
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
15
WASHER FLAT
7555893
$1,56 Unit Price incl. VAT
16
BUSHING PIVOT TUBE
5020561
$2,61 Unit Price incl. VAT
16
SPACER
5333028
$2,61 Unit Price incl. VAT
17
Nut
7542403
Not Available
18
WASHER WAVE SPRING(10)
7555795
$2,09 Unit Price incl. VAT
19
ARM SHOCK
1540942067
Not Available
20
SCR-3/8-24X3 3/4 HX CP GR5-Y
7515472
$4,19 Unit Price incl. VAT
21
BOLT
7515438
$9,44 Unit Price incl. VAT
22
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
23
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
24
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
25
SPACER OUTER
5332784
Not Available
26
BUSHING-.781 X1.250X.060-Y
7556301
$6,29 Unit Price incl. VAT
27
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
28
SCREW
7515415
$2,09 Unit Price incl. VAT
29
SCR-5/16-18X1-HX/FLG-GR5-Y
7515307
$7,34 Unit Price incl. VAT
30
STRAP LIMITER FRONT
5411045
Not Available
31
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
32
SCR-RHCAR-5/16-18X0.75 GR5 ZY3
7512377
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
