1
Engine displacement
500
2
Year
1997
3
Trim
500 RMK - 0972964
4
Parts Catalog

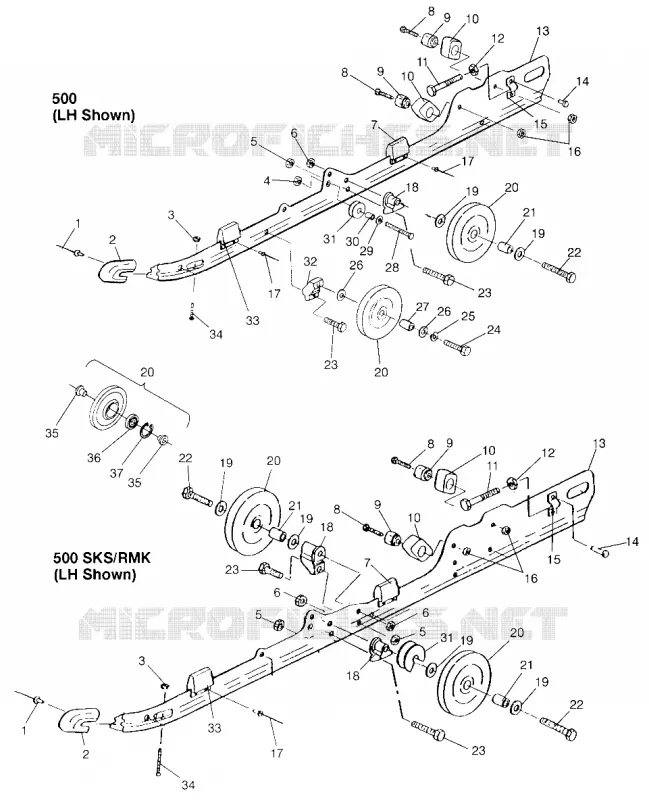

RAIL MOUNTING (SUSPENSION) 500 0972764, EUROPEAN 500 E972764, 500 SKS 0972 (4938393839C002)
5
Parts Diagram
Parts Catalog
SUSPENSION (SKS/RMK) 500 SKS 0972564, EUROPEAN 500 SKS E972564 AND 500 RMK (4938393839C001)
by
FRONT TORQUE ARM (500/RMK) 500 0972764, EUROPEAN 500 E972764 AND 500 RMK 09 (4938393839C004)
RAIL MOUNTING (SUSPENSION) 500 0972764, EUROPEAN 500 E972764, 500 SKS 0972 (4938393839C002)
1
RIVET
7621435
$2,09 Unit Price incl. VAT
2
COVER RAIL TIP Substituted by 5433005
5431421
Not Available
3
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
4
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
5
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
6
NUT NYLOCK(10)
7542525
$9,44 Unit Price incl. VAT
7
ANGLE REINFORCEMENT BUMPER
5222629
$26,24 Unit Price incl. VAT
7
BUMPER SUSPENSION
5810554
$15,74 Unit Price incl. VAT
8
BOLT
7515537
$15,74 Unit Price incl. VAT
9
MOUNT BUMPER
5131113
$52,49 Unit Price incl. VAT
10
BUMPER PIVOT ARM
5410925
$26,24 Unit Price incl. VAT
11
BOLT ADJUSTER(10)
7515455
$41,99 Unit Price incl. VAT
12
NUT
7542440
7542404
$3,14 Unit Price incl. VAT
13
RAIL ASM LH 133#
1540946
Not Available
13
RAIL ASM RH 133#
1540947
Not Available
13
RAIL RH 121 XTRA 10 (XLT) (Incl. 2 7 15 33)
1541147
Not Available
13
RAIL LH 121 XTRA 10 (XLT) (Incl. 2 7 15 33 )
1541146
$370,64 Unit Price incl. VAT
14
RIVET
7621501
$4,19 Unit Price incl. VAT
15
BLOCK IDLER BOLT ADJUSTING
5130530
$62,99 Unit Price incl. VAT
16
Nut
7542403
Not Available
17
RIVET
7621476
$2,09 Unit Price incl. VAT
18
SPACER BOGIE WHEEL
5630399
$20,99 Unit Price incl. VAT
19
WASHER-.438X1.375X.083 FL-B
7555852
$4,19 Unit Price incl. VAT
20
WHEEL IDLER
1543018
$115,49 Unit Price incl. VAT
21
SPACER WHEEL
5333116
$13,64 Unit Price incl. VAT
22
BOLT(10)
7512538
$11,54 Unit Price incl. VAT
23
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
24
SCREW
7512659
$13,64 Unit Price incl. VAT
25
WASHER SPLIT LOCK
7553201
$7,34 Unit Price incl. VAT
26
WASHER(10)
7555801
$7,34 Unit Price incl. VAT
27
SPACER
5332786
$13,64 Unit Price incl. VAT
28
BOLT Substituted by 7515491
7515433
$3,14 Unit Price incl. VAT
29
WASHER(10)
7555743
Not Available
30
SPACER
5332787
Not Available
31
ROLLER SPRING
5431366
$19,94 Unit Price incl. VAT
31
ROLLER SPRING
5432170
Not Available
32
BRACKET BOGIE WHEEL
5130570
$89,24 Unit Price incl. VAT
33
BUMPER SUSPENSION
5811097
Not Available
34
SCREW
7515175
$7,34 Unit Price incl. VAT
35
INSERT WHEEL
5431531
$19,94 Unit Price incl. VAT
36
BEARING
3514303
$20,99 Unit Price incl. VAT
37
RING RETAINING
7718407
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
