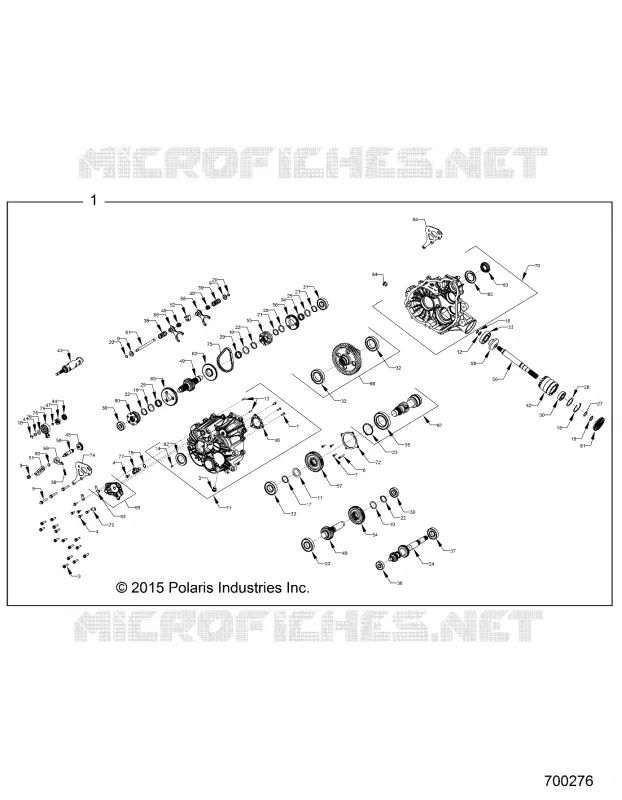

DRIVE TRAIN, MAIN GEARCASE INTERNALS FOR RZR XP 1000 EU / MD FROM 2016

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, MAIN GEARCASE INTERNALS -Z16VDE99FM (700583)

ASM. GEARCASE COMPLETE [NM]

1333470

$5 680,49 Unit Price incl. VAT

PLUG-SOCKET HEAD W/MAG M18X1.5

3234756

$57,74 Unit Price incl. VAT

SCREW HEX FLANGE HEAD M8 X 1.25 X 30

3234898

$17,84 Unit Price incl. VAT

SCREW HEX FLANGE HEAD M6 X 1 X 20

3235206

$13,64 Unit Price incl. VAT

SCREW HEX FLANGE M8 X 50

3235207

$19,94 Unit Price incl. VAT

SCREW SOCKET HEAD CAP M6 X 1.0 X 40

3235208

$20,99 Unit Price incl. VAT

SCREW SOCKET HEAD CAP M6 X 1.0 X 18

3235332

$7,34 Unit Price incl. VAT

NUT LOCK HEX FLANGE NYLON M8 X 1.25

3235210

$14,69 Unit Price incl. VAT

WASHER CUP

3234091

$17,84 Unit Price incl. VAT

WASHER-32.3X42X1.5(115288)

3235211

$19,94 Unit Price incl. VAT

WASHER-35.6X57X1.5(115289)

3235212

$25,19 Unit Price incl. VAT

WASHER-17.3X25X1.5(115290)

3235213

$31,49 Unit Price incl. VAT

PIN DOWEL 6 X 20

3234330

$13,64 Unit Price incl. VAT

PIN SPRING SLOTTED 6 X 12

7043746

$15,74 Unit Price incl. VAT

RING RETAINING BASIC EXTERNAL 0.984

3233106

$10,49 Unit Price incl. VAT

RING RETAINING BASIC EXTERNAL

3233834

$19,94 Unit Price incl. VAT

RING RETAINING SHAFT DIA. 1.375

3233364

$12,59 Unit Price incl. VAT

RING RETAINING EXTERNAL SHR-66

3234318

$5,76 Unit Price incl. VAT

RING RETAINING BASIC INTERNAL 2.047

3234269

$17,84 Unit Price incl. VAT

RING RETAINING BASIC EXTERNAL 0.428

3234090

$19,94 Unit Price incl. VAT

RING RETAINING

3234205

$20,99 Unit Price incl. VAT

RING RETAINING BASIC EXTERNAL MSR-32

3235214

$17,84 Unit Price incl. VAT

RING-RETAIN VSH-237(130298)

3235216

$19,94 Unit Price incl. VAT

SHAFT BOSS LOWER INPUT

3235763

$335,99 Unit Price incl. VAT

WASHER THRUST 1.187 X 1.500 X .0600

3233378

$17,84 Unit Price incl. VAT

WASHER THRUST 0.446 X 0.88 X 0.025

3234642

$19,94 Unit Price incl. VAT

SHIM 1.180 OD X 0.995 ID

3234272

$68,24 Unit Price incl. VAT

SHIM 2.040 OD X 1.63 ID

3234273

$26,24 Unit Price incl. VAT

BEARING NEEDLE CAGE ASSY

3233014

$74,54 Unit Price incl. VAT

BEARING

3233019

$54,59 Unit Price incl. VAT

BEARING BALL 6305 C3 25 X 62 X 17

3233020

$80,84 Unit Price incl. VAT

BEARING BALL 6010 C3 50 X 80 X 10

3233268

$88,19 Unit Price incl. VAT

BEARING BALL 6207 C3 35MMX72MMX17MM

3234065

$80,84 Unit Price incl. VAT

BEARING-NEEDLE 30X35X13-CAGED

3233384

$54,59 Unit Price incl. VAT

BEARING BALL 6012 C3 60 X 95 X 18

3235218

$101,84 Unit Price incl. VAT

BEARING BALL 6303 17 X 47 X 14

3234652

$27,29 Unit Price incl. VAT

BEARING BALL 6206RSH2 STD 30 X 62 X 16

3235496

$54,59 Unit Price incl. VAT

SPRING COMPRESSION 0.36 O.D. X 1.125

3233830

$19,94 Unit Price incl. VAT

SPRING COMPRESSION .92 O.D. X 2.000

3234078

$47,24 Unit Price incl. VAT

SPRING COMPRESSION 0.46 I.D. X 0.73

3234089

$52,49 Unit Price incl. VAT

WASHER-SPRING 210393

3235327

$17,84 Unit Price incl. VAT

TUBE SNORKEL MACHINED

3234278

$188,99 Unit Price incl. VAT

DRUM-SHIFT MACH.(255289)

3235463

$519,74 Unit Price incl. VAT

GEAR SECTOR 16T

3233839

$68,24 Unit Price incl. VAT

GEAR-SECTOR 31T

3233832

$68,24 Unit Price incl. VAT

PLATE PARK 12 FACE

3235456

$73,49 Unit Price incl. VAT

DETENT STAR

3235603

$73,49 Unit Price incl. VAT

SHAFT-IDLER 29T(285803)

3235223

$204,74 Unit Price incl. VAT

SHAFT REVERS E 29T

3235224

$272,99 Unit Price incl. VAT

SHAFT-FRONT OUTPUT(285914)

3235394

$246,74 Unit Price incl. VAT

BELLCRANK 92 DEGREE

3235227

$52,49 Unit Price incl. VAT

COLLAR SHIFT

3234073

$57,74 Unit Price incl. VAT

TUBE VENT 90 -1/4 INCH HOSE

3234230

$19,94 Unit Price incl. VAT

GEAR-44T STAGE2(352842)

3235229

$173,24 Unit Price incl. VAT

ENGAGEMENT DOG 6-FACE(352857)

3235233

$241,49 Unit Price incl. VAT

GEAR-53T(352858)

3235234

$157,49 Unit Price incl. VAT

GEAR-46T STAGE 3(352872)

3235236

$204,74 Unit Price incl. VAT

GEAR-13T FRONT OUTPUT(352957)

3235237

$246,74 Unit Price incl. VAT

SHAFT-SHIFT(352973)

3235238

$68,24 Unit Price incl. VAT

SHIFT DOG PARK/LOW (353357)

3235457

$272,99 Unit Price incl. VAT

RAIL-SHIFT SHAFT(353622)

3235542

$52,49 Unit Price incl. VAT

SPROCKET-48T 6-FACE REVERSE

3235755

$152,24 Unit Price incl. VAT

GEAR LOW 64T

3235774

$152,24 Unit Price incl. VAT

WELDMENT REAR MOUNT BRACKET

3235558

$83,99 Unit Price incl. VAT

SUBASSEMBLY SECTOR COVER

3235713

$209,99 Unit Price incl. VAT

SUBASSEMBLY OUTPUT (INCLUDES BEARINGS)

3235335

$645,74 Unit Price incl. VAT

SUBASM. SHAFT

3235336

$703,49 Unit Price incl. VAT

SUBASSEMBLY SHIFT FORK [INCLUDES ALL HARDWARE]

3235454

$167,99 Unit Price incl. VAT

SUBASSEMBLY PAWL DETENT ROLLER

3235452

$68,24 Unit Price incl. VAT

SUBASSEMBLY LH CASE

3235514

$1 007,99 Unit Price incl. VAT

SUBASSEMBLY RH

3235765

$965,99 Unit Price incl. VAT

COVER-BEARING CNTR DR.

3235241

$89,24 Unit Price incl. VAT

BRACKET WIRE HARNESS

3235350

$16,79 Unit Price incl. VAT

BRACKET REAR MOUNT

3235559

$73,49 Unit Price incl. VAT

CHAIN SILENT TYPE 101 .25P X .40W X 58L

3234737

$314,99 Unit Price incl. VAT

SWITCH ROTARY 2 PIN RESISTIVE

7661999

$220,49 Unit Price incl. VAT

SENSOR-SPEED TRANS

4013908

4082135

$204,74 Unit Price incl. VAT

O-RING

3234302

$13,64 Unit Price incl. VAT

O-RING -012 VITON

3233836

$12,59 Unit Price incl. VAT

O-RING -014 VITON

3233828

$12,59 Unit Price incl. VAT

SEAL TRIPLE LIP VITON 25 X 80 X 10

3235658

$104,99 Unit Price incl. VAT

SEAL TRIPLE LIP VITON HELIX 40X70X7

3235052

$57,74 Unit Price incl. VAT

SEAL TRIPLE LIP VITON HELIX 30 X 47

3235495

$73,49 Unit Price incl. VAT

PLUG SOCKET HEAD

3234755

$52,49 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.

Other Parts for RZR XP 1000 EU / MD

POLARIS RZR XP 1000 EU / MD 2016

RZR XP 1000 EU / MD

Model : RZR XP 1000 EU / MD

Engine capacity : 1000

Year : 2016
