1
Engine displacement
550
2
Year
2010
3
Trim
SPORTSMAN X2 550 - A10TN55AL/AX
4
Parts Catalog
BRAKE LINES
5

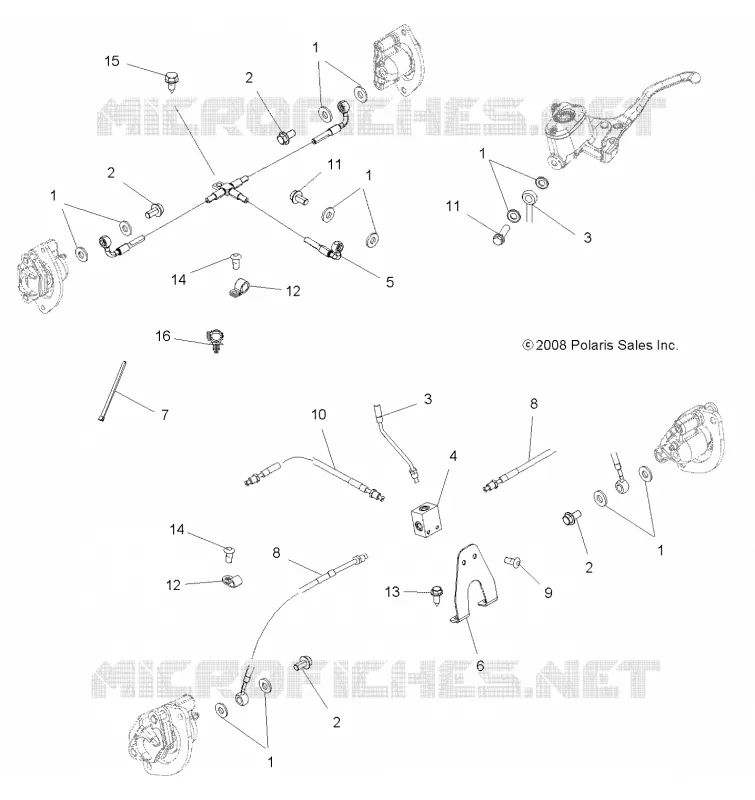

Parts Diagram
Parts Catalog
TAILGATE BRACKETS
by
CHASSIS, MAIN FRAME
BRAKE LINES
1
1
1
1
1
1
2
2
2
2
3
3
4
5
6
7
8
8
9
10
11
11
12
12
13
14
14
15
16
1
2
3
3
3
3
4
5
6
6
6
6
7
8
9
10
11
11
12
13
14
15
16
1
SEAL-STAT-0-3/8 70EP
5413212
$9,44 Unit Price incl. VAT
2
BOLT-BANJO 10MMX1.00-6G
1910499
$10,49 Unit Price incl. VAT
3
LINE BRAKE POD TO JB
1911393
$152,24 Unit Price incl. VAT
4
FITTING CROSS
7052372
$110,24 Unit Price incl. VAT
5
LINE BRAKE REAR 2-UP
1911424
$451,49 Unit Price incl. VAT
6
Bracket Junction Block
5252667
$73,49 Unit Price incl. VAT
7
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
8
Line Brake Caliper Front
1911383
$141,74 Unit Price incl. VAT
9
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
10
Line Brake JB to FT MC
1911384
Not Available
11
BOLT-BANJO 10MM X 1.25-6G
1910958
$14,69 Unit Price incl. VAT
12
CLAMP-HOSE .375DIA VINYL COAT
7081472
$7,34 Unit Price incl. VAT
13
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
14
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
15
SCR-TFHFL M6X1.0X15 CHS ZOD
7518513
$9,44 Unit Price incl. VAT
16
CLIP ROUTING .472 B.D. HINGED
7670116
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
