1
Engine displacement
1000
2
Year
2019
3
Trim
RZR XP 4 1000 HIGH LIFTER
4
Parts Catalog
FLOOR
5

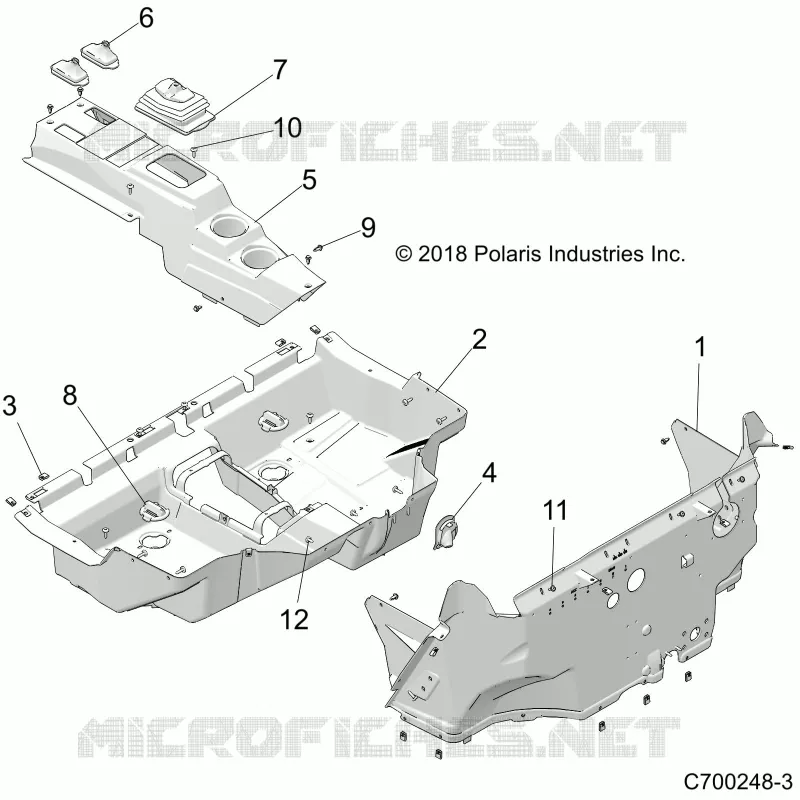

Parts Diagram
Parts Catalog
DOORS, REAR
by
REAR FLOOR
FLOOR
1
ASM-FIREWALL MAIN ROUTERED BLK [INCL. 11 QTY OF 3]
2636842070
$388,49 Unit Price incl. VAT
2
ASM-FLOOR MAIN BLK [INCL. 8 OF 3]
2637566070
$577,49 Unit Price incl. VAT
3
NUT-M6-1.0 U-TYPE (2.5-3.8)
7547674
$2,09 Unit Price incl. VAT
4
BOOT STEERING
5415042
$47,24 Unit Price incl. VAT
5
ASM-CONSOLE WARNDECAL BLK [INCL. WARNING DECALS]
2637084070
$230,99 Unit Price incl. VAT
5
ASM-CONSOLE WARNDECAL MD BLK [INCL WARNING DECAL][LK][LE]
2637428070
$209,99 Unit Price incl. VAT
6
BOOT SEAT BELT BLACK
5450254070
$20,99 Unit Price incl. VAT
7
BOOT SHIFTER
5415700
$62,99 Unit Price incl. VAT
8
PLUG DRAIN FLOOR
5414694
5419292
$20,99 Unit Price incl. VAT
9
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
10
SCR-TXTH-M6X1.0X25 ZFB
7519650
$7,34 Unit Price incl. VAT
11
SCR-10-24X3/4 PH/TX/TRI-SEMS Y
7518196
$2,09 Unit Price incl. VAT
12
SCR-M6X1X16 TR/TX-M
7518936
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
