1
Engine displacement
500
2
Year
1999
3
Trim
WORKER 500 - A99CH50EB
4
Parts Catalog

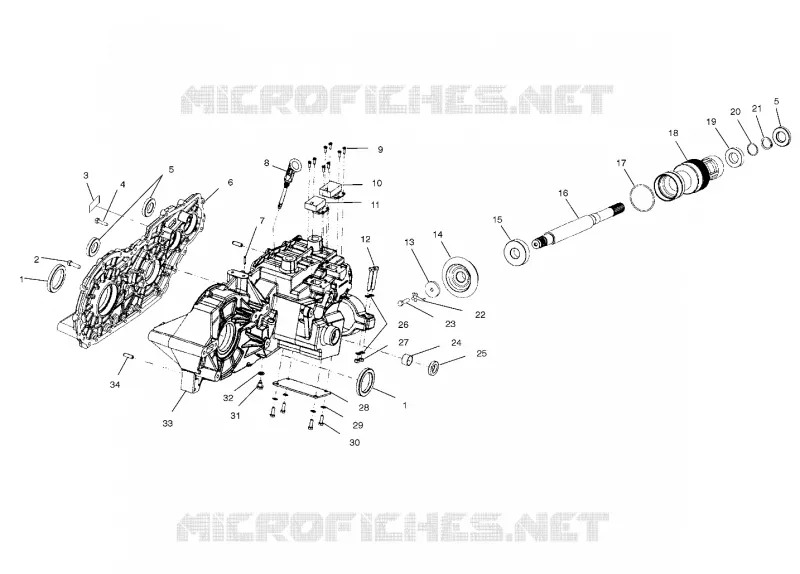

GEARCASE (CASES AND SNORKEL)
5
Parts Diagram
Parts Catalog
FRONT HOUSING
by
GEARCASE (INTERNAL COMPONENTS)
GEARCASE (CASES AND SNORKEL)
-
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
1
SEAL
3233256
3233878
$57,74 Unit Price incl. VAT
2
SCREW
3233252
$9,44 Unit Price incl. VAT
3
DECAL-SWITCH
3233636
Not Available
4
SCREW
3233026
$12,59 Unit Price incl. VAT
5
SEAL
3233248
3233788
$57,74 Unit Price incl. VAT
6
GEARCASE-LH
3233671
Not Available
7
VENT
3233037
Not Available
8
DIPSTICK
3233475
Not Available
9
SCREW TAP
3233616
3233749
$10,49 Unit Price incl. VAT
10
SWITCH ITW 2 POSITION
3233617
Not Available
11
SWITCH-H/R ITW
3233635
$262,49 Unit Price incl. VAT
12
BOLT
3233442
$3,98 Unit Price incl. VAT
13
WASHER
3233352
$3,14 Unit Price incl. VAT
14
GEAR 31T SNORKEL
3233476
Not Available
15
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
16
SHAFT SNORKEL
3233446
Not Available
17
O-RING
3233302
Not Available
18
SNORKEL
3233303
Not Available
19
Bearing Ball
3233305
$54,59 Unit Price incl. VAT
20
SPACER (1.180 x .995 x .040)
3233355
Not Available
20
SPACER (1.180 x .995 x .005)
3233356
Not Available
20
SPACER
3233357
$36,74 Unit Price incl. VAT
20
SPACER (1.180 x .995 x .010)
3233353
$4,08 Unit Price incl. VAT
20
SPACER (1.180 x .995 x .025)
3233354
$4,08 Unit Price incl. VAT
21
RING RETAINING BASIC EXT 0.938
3233306
$9,44 Unit Price incl. VAT
22
BOLT LOCK SNORKEL GEAR
3233444
$4,19 Unit Price incl. VAT
23
BOLT
3233351
$3,66 Unit Price incl. VAT
24
BUSHING
3233292
$57,74 Unit Price incl. VAT
25
SEAL
3233293
Not Available
26
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
27
NUT FLEXLOCK
3233291
$5,24 Unit Price incl. VAT
28
PLATE COVER
3233294
$18,57 Unit Price incl. VAT
29
WASHER LOCK
3233295
$3,66 Unit Price incl. VAT
30
SCREW
3233296
Not Available
31
PLUG DRAIN Substituted by 3233777
3233253
$52,49 Unit Price incl. VAT
32
PLUG WASHER
3233254
$14,69 Unit Price incl. VAT
33
GEARCASE-RH Substituted by 3233748
3233672
Not Available
34
PIN DOWEL
3233247
$13,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
