1
Engine displacement
400
2
Year
1998
3
Trim
xplorer-400l-w98cc38c
4
Parts Catalog

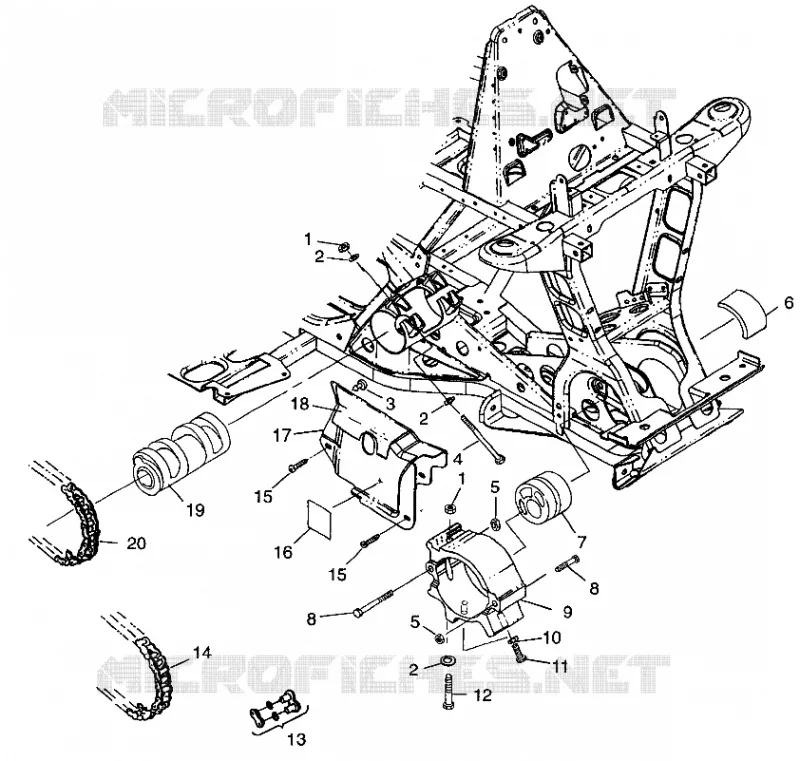

FRONT DRIVE XPLORER 400L W98CC38C (4945414541B002)
5
Parts Diagram
Parts Catalog
AIR BOX XPLORER 400L W98CC38C (4945414541B001)
by
FRONT TIGHTENER XPLORER 400L W98CC38C (4945414541B003)
FRONT DRIVE XPLORER 400L W98CC38C (4945414541B002)
1
1
2
2
2
3
4
5
5
6
7
8
8
9
10
11
12
13
14
15
15
16
17
18
7
20
1
2
3
3
4
5
6
7
8
9
10
11
12
12
13
13
13
13
14
15
16
17
18
7
20
1
NUT LOCK (10)
7542503
$18,89 Unit Price incl. VAT
2
WASHER-.453X1.0X.078-Y
7555883
$7,34 Unit Price incl. VAT
3
CLIP-XMAS TREE .945 X .228
7670101
$4,19 Unit Price incl. VAT
4
BOLT(10)
7512583
Not Available
5
NUT
7542449
$7,34 Unit Price incl. VAT
6
SPACER F.ECCENTRIC
5811519
Not Available
8
SCREW
7517303
Not Available
9
CLAMP FR.ECCENTRIC
5131379
Not Available
10
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
11
BOLT(10)
7515522
$7,34 Unit Price incl. VAT
12
SCREW
7517304
Not Available
13
CONNECTOR LINK
3225024
$47,24 Unit Price incl. VAT
14
CHAIN DRIVE Substituted by 3224056-064
3224041
$194,24 Unit Price incl. VAT
15
SCREW(10)
7512252
Not Available
16
DECAL FR.CHAIN TENSION
7074956
Not Available
17
GUARD FR.CHAIN
5432572
Not Available
18
FOIL CHAINGUARD
5811502
Not Available
19
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
20
CHAIN DRIVE Substituted by 3224056-070
3224044
$209,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
