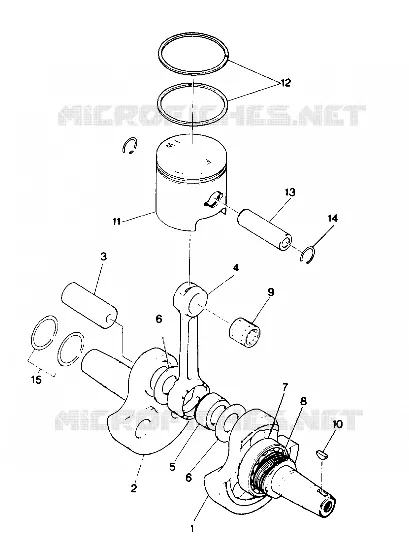

CRANKSHAFT AND PISTON ASSEMBLY (4913511351039A) FOR TRAIL BOSS 4X4 - W878027 FROM 1987

CRANKSHAFT AND PISTON ASSEMBLY (4913511351039A)

-

CRANKSHAFT Substituted by 3084582 (Incl. 1-8)

3083810

Not Available

1

CRANKSHAFT #1

3083811

Not Available

2

CRANKSHAFT #2

3083802

Not Available

3

CRANK PIN PTO

3082796

Not Available

4

ROD CONNECTING

3082790

Not Available

5

BEARING LGE.END

3083803

Not Available

6

SPACER

3083804

$36,74 Unit Price incl. VAT

7

BEARING BALL

3083805

Not Available

8

GEAR CRANKSHAFT Substituted by 3083745

3083414

Not Available

9

BEARING SMALL END

3083626

Not Available

10

KEY WOODRUFF

3081543

$26,24 Unit Price incl. VAT

11

PISTON .020 Substituted by 3083944

3083679

Not Available

11

PISTON Substituted by 3083942

3083771

Not Available

11

PISTON .010 Substituted by 3083943

3083677

Not Available

12

RING .020 Substituted by 3083717

3083680

$40,94 Unit Price incl. VAT

12

RING .010 O/S (0.10 Oversize)

3083678

Not Available

12

RING PISTON

3083546

Not Available

13

PIN PISTON

3083512

$26,45 Unit Price incl. VAT

14

CLIP PISTON PIN(10) Substituted by 3083839

3083628

$7,34 Unit Price incl. VAT

15

SPACER #1

3083629

Not Available

15

SPACER #3

3083630

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
