1
Engine displacement
700
2
Year
2002
3
Trim
700 CLASSIC BUILT BEFORE 1/1/01
4
Parts Catalog
CYLINDER
5
Parts Diagram
Parts Catalog
CHAINCASE
by
DECALS

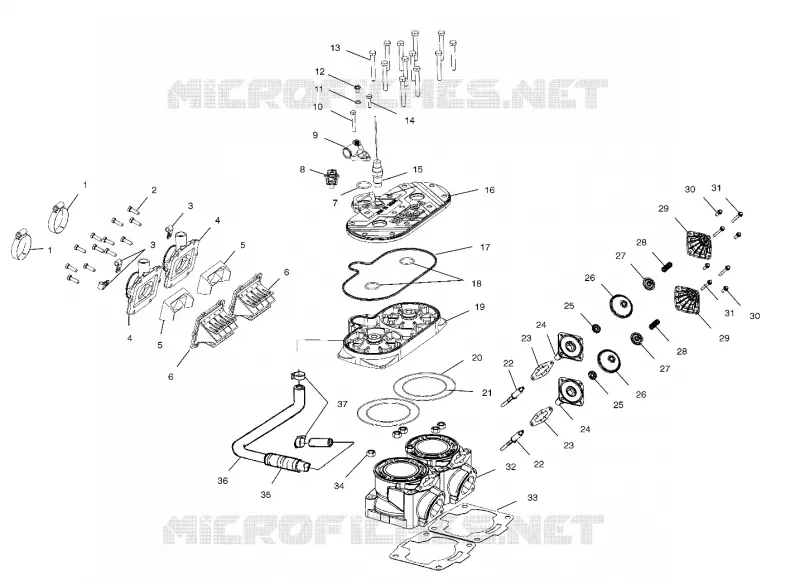

CYLINDER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
1
2
3
3
4
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
33
34
35
36
37
1
CLAMP HOSE
7080681
$17,84 Unit Price incl. VAT
2
SCR-M6X1.0X22.0 HX/FL-Y/D
7517398
$6,29 Unit Price incl. VAT
3
CLAMP-HOSE .312DIA VINYL COAT
7080683
$4,19 Unit Price incl. VAT
4
ADAPTER CARB 40MM SNO
1253327
$167,99 Unit Price incl. VAT
5
STUFFER-REED BLOCK NOK
5433151
Not Available
6
VALVE REED
1201825
Not Available
7
O-RING
5411521
$36,74 Unit Price incl. VAT
8
THERMOSTAT-120°F W/O BYPASS
7052258
7052433
$89,24 Unit Price incl. VAT
9
COVER-THERMOSTAT M6 BLEED LG
5630992
Not Available
10
SCREW-M6X1.0X20-HX/FL-Y/D
7516822
$4,19 Unit Price incl. VAT
11
WASHER-FLAT 6.15X12X1MM-AL
7555998
$2,09 Unit Price incl. VAT
12
SCREW
7517679
$25,19 Unit Price incl. VAT
13
SCREW M8X1.25X60(10)
7517534
$8,39 Unit Price incl. VAT
14
SCR-M6X1.00X40-HX/FL-Y/D [A15B1 B7]
7516818
$10,49 Unit Price incl. VAT
15
SENSOR-THERMISTOR TEMP VARRES Substituted by 4010614
4010251
$73,49 Unit Price incl. VAT
16
Cover Head
5631201093
Not Available
17
SEAL RUBBER MLDD HEAD
5411294
Not Available
18
O-RING(10)
5410917
$1,56 Unit Price incl. VAT
19
HEAD-CYL 81MM TWIN SNOW EV
3021210
Not Available
20
O-RING
5410931
5412232
$11,54 Unit Price incl. VAT
21
O-RING-3.489X3.629X.07 HI-TMP
5410932
$36,74 Unit Price incl. VAT
22
VALVE GUILLOTINE 3.5 500EV ASM.
1201959
$230,99 Unit Price incl. VAT
23
Gasket
5812241
5815584
$11,54 Unit Price incl. VAT
24
Asm. Base
1202216
Not Available
25
WASHER-BELLOWS EXH VALVE DOM
5132950
5135163
$8,39 Unit Price incl. VAT
26
BELLOWS-EXHAUST VALVE DOM
5412056
5414495
$89,24 Unit Price incl. VAT
27
CAP EXH VALVE
5631152
5631687
$52,49 Unit Price incl. VAT
28
SPRING-COMP GEN3.5EV PRPL/WHT
704178607
$47,24 Unit Price incl. VAT
29
HOUSING-BELLOWS EXH VALVE DOM
5434175
1202640
$27,29 Unit Price incl. VAT
30
SCR-M6X1.0X16.0 HX/FL-Y/D
7516820
$10,49 Unit Price incl. VAT
31
SCR-M6X1.0X50.0 HX/FL-Y/D
7517932
$7,34 Unit Price incl. VAT
32
Cylinder
3021203
Not Available
33
GASKET CYL.BASE
5811538
Not Available
34
NUT-M10X1.25-HX/FL
7547013
$3,14 Unit Price incl. VAT
35
CONDUIT FLEX(.75#ID)
552139896
$9,23 Unit Price incl. VAT
36
HOSE BYPASS
5411536
Not Available
37
CLAMP-3 TONG .810-.970(10)
7080810
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
