1
Engine displacement
1000
2
Year
2019
3
Trim
RANGER 1000 CREW NORTHSTAR RIDE COMMAND 49/50S
4
Parts Catalog

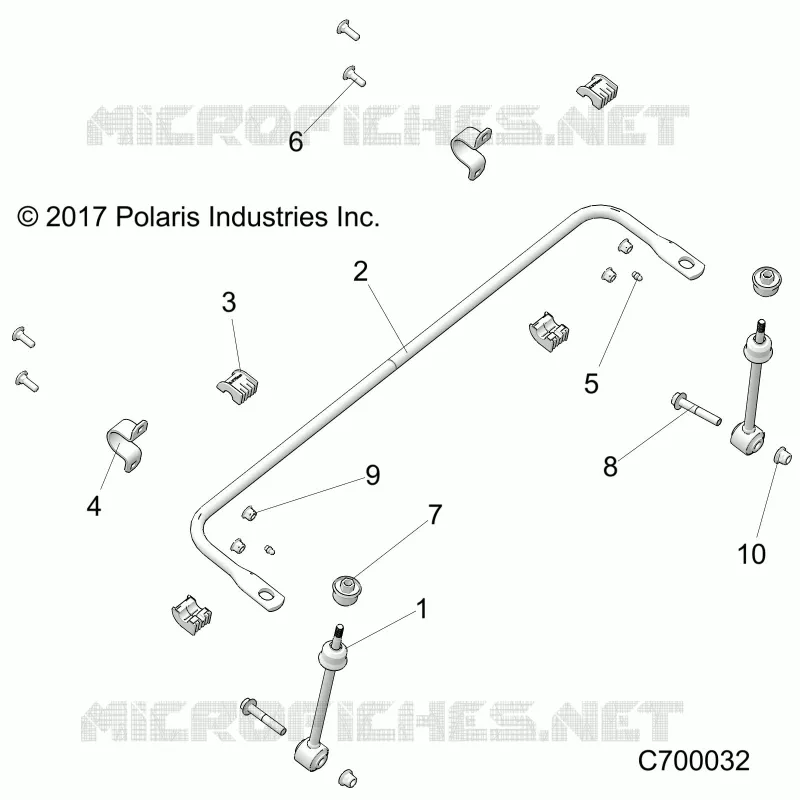

FRONT SUSPENSION STABILIZER BAR- R19RSW99AS/A9/AD/BS/B9/BD (C700032)
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION SHOCK MOUNTING
by
REAR SUSPENSION CARRIER
FRONT SUSPENSION STABILIZER BAR- R19RSW99AS/A9/AD/BS/B9/BD (C700032)
1
2
3
4
5
6
7
8
9
10
1
LINKAGE-BAR TORSION
5140916
$136,49 Unit Price incl. VAT
2
BAR-STABILZER FRONT M.BLK
5340150458
$241,49 Unit Price incl. VAT
3
BUSHING-STABILIZER
5452817
5465925
$8,91 Unit Price incl. VAT
4
BRACKET-BUSHING
5255357
5270849
$52,49 Unit Price incl. VAT
5
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
6
SCR-RHCAR-M8X1.25X25 10.9 ZB3
7520298
$12,59 Unit Price incl. VAT
7
BUSHING-LNKG TORBAR DURO80
5416013
$9,44 Unit Price incl. VAT
8
SCR-HXFL-M10X1.25X60 10.9 ZOD
7519306
$10,49 Unit Price incl. VAT
9
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
10
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
