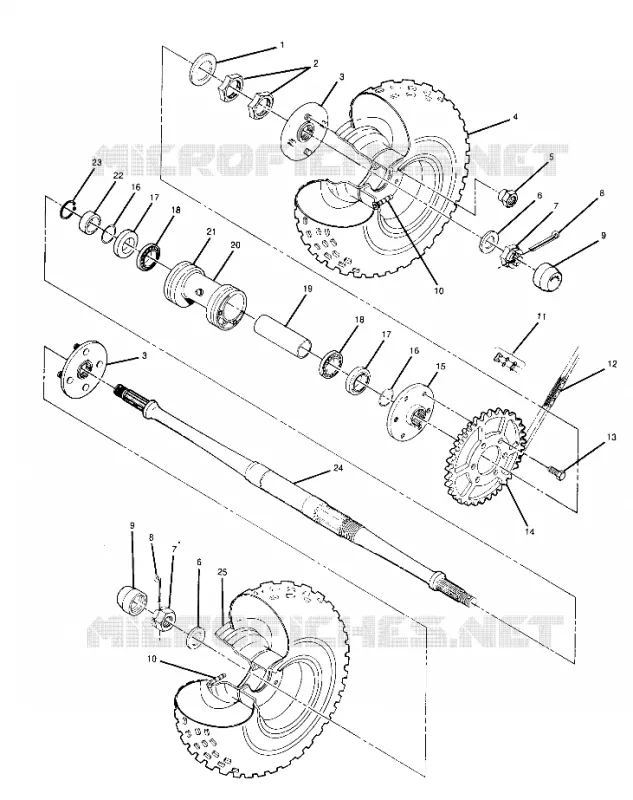

REAR WHEEL DRIVE ASSEMBLY (4914891489017A) FOR TRAIL BOSS 250 R/ES

FRONT BRAKE 1988 TRAIL BOSS UPDATE-4/14/88 (4914891489016A)

AIR BOX (4914891489019A)

WASHER(10)

7555764

Not Available

CARBURETOR

3130424

Not Available

Nut Jam

5020468

$68,24 Unit Price incl. VAT

TOP MIX CHAMBER (Incl. 3)

3130060

Not Available

SPRING THROTTLE

3130354

$62,99 Unit Price incl. VAT

HUB REAR Substituted by 1520102-067

1520102

Not Available

TIRE REAR

5410465

Not Available

PLATE THROTTLE

3130002

$47,24 Unit Price incl. VAT

Nut

7542714

$3,14 Unit Price incl. VAT

E RING(10) Substituted by 3130508

3130003

3130508

$12,59 Unit Price incl. VAT

Washer Flat

7555745

Not Available

JET NEEDLE Substituted by 3130155

3130356

3130155

$52,49 Unit Price incl. VAT

WASHER

3130355

$13,64 Unit Price incl. VAT

NUT CASTLE(10)

7543005

Not Available

VALVE THROTTLE (2.0)

3130420

Not Available

PIN-COTTER 1/8X1 1/2-Y

7661404

$9,44 Unit Price incl. VAT

JET NEEDLE(0-4) 169 (169)

3130409

$83,99 Unit Price incl. VAT

COVER DUST HUB Substituted by 5411164

5410404

5413427

$52,49 Unit Price incl. VAT

CAP PLUNGER

3130359

$31,49 Unit Price incl. VAT

VALVE-RIM

1525017

$12,59 Unit Price incl. VAT

SPRING PLUNGER

3130006

3131764

$18,89 Unit Price incl. VAT

CONNECTOR LINK

3225024

$47,24 Unit Price incl. VAT

CHAIN DRIVE 88P Substituted by 3224056-088 (Includes Connector)

3224042

3221193-088

$272,99 Unit Price incl. VAT

PLUNGER ASM. Substituted by 3130328

3130440

3130328

$68,24 Unit Price incl. VAT

SPRING THROTTLE ADJUSTER

3130010

$18,89 Unit Price incl. VAT

BOLT(10)

7515488

Not Available

SPROCKET 42T Substituted by 3222070

3223009

Not Available

SCREW THROTTLE STOP

3130324

$36,74 Unit Price incl. VAT

HUB SPROCKET WELD Substituted by 1520170

1011559

Not Available

PACKING NEEDLE VALVE

3130017

$7,34 Unit Price incl. VAT

O RING 1 5/16(10)

5410415

Not Available

SCREW AIR

3130011

$36,74 Unit Price incl. VAT

SPRING AIR ADJUST

3130012

$18,89 Unit Price incl. VAT

SEAL REAR AXLE

3610013

Not Available

JET IDLER H30 Substituted by 3130065 (No. 30}

3130331

$18,89 Unit Price incl. VAT

BEARING BALL

3515501

$47,24 Unit Price incl. VAT

WASHER

3130014

$3,14 Unit Price incl. VAT

TUBE BEARING SPACER

5010204

Not Available

ASM. SCREW AND WASHER

3130025

$6,29 Unit Price incl. VAT

FITTING LUB W/BALL

7080306

$5,76 Unit Price incl. VAT

BOLT BANJO

3130321

$41,99 Unit Price incl. VAT

HOUSING AXLE

5130663

Not Available

O-RING

3130239

Not Available

SPACER BEARING

5010206

$68,24 Unit Price incl. VAT

Ring Retaining

7710405

$9,44 Unit Price incl. VAT

JET MAIN #145 Substituted by 3130112

3130351

Not Available

FLOAT ASM

3130021

$83,99 Unit Price incl. VAT

AXLE REAR

5020469

Not Available

RIM REAR PRIMED Substituted by 1520114

1520128

Not Available

CAP

3130237

$8,39 Unit Price incl. VAT

GASKET FLOAT CHAMBER

3130020

$31,49 Unit Price incl. VAT

VALVE NEEDLE

3130360

$89,24 Unit Price incl. VAT

ARM FLOAT

3130018

$52,49 Unit Price incl. VAT

PIN FLOAT Substituted by 3130361

3130235

3130361

$18,89 Unit Price incl. VAT

BOWL FLOAT (250)

3130441

$183,74 Unit Price incl. VAT

VENT ELBOW

3130442

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
