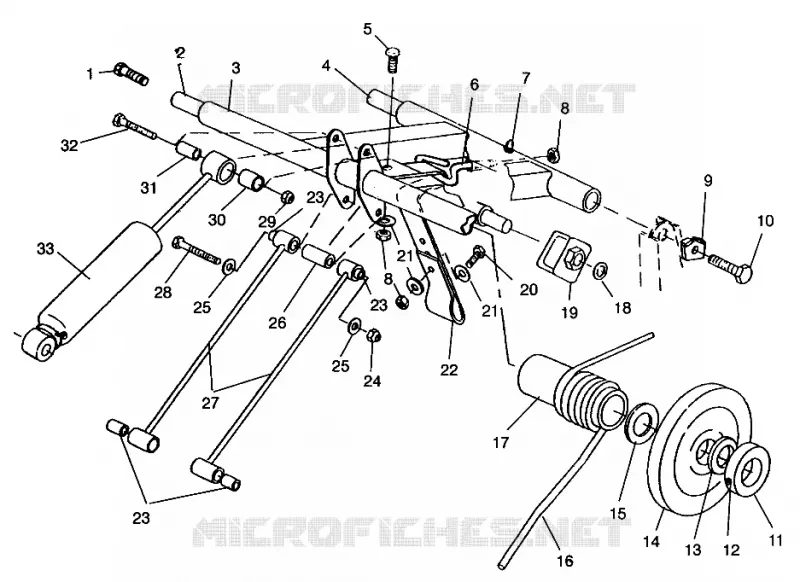

REAR TORQUE ARM TRAIL 0962761 (4931763176C007) FOR TRAIL TOURING - 0962262 FROM 1996

REAR TORQUE ARM TRAIL 0962761 (4931763176C007)

1

BOLT(10)

7515432

Not Available

2

SHAFT R.TORQUE UPPER

5020845

$115,49 Unit Price incl. VAT

3

ARM R.TORQUE BLK Substituted by 2200914 (X-10 Blk)

1541024067

Not Available

4

SHAFT LOW RR TORQUE

5020843

Not Available

5

SCR-RHCAR-5/16-18X0.75 GR5 ZY3

7512377

$9,44 Unit Price incl. VAT

6

BOLT EYE

7010050

Not Available

7

FITTING LUBRICATION

7080433

$2,09 Unit Price incl. VAT

8

NUT FLANGE

7542321

$2,09 Unit Price incl. VAT

9

LOCK BOLT MECHANICAL

5211649

Not Available

10

BOLT(10)

7515526

$2,09 Unit Price incl. VAT

11

COLLAR-BRG. LOCK

5010155

Not Available

12

SCREW SOCKET SET

7512257

$7,34 Unit Price incl. VAT

13

WASHER THRUST(10) Substituted by 7555871

7555862

$10,49 Unit Price incl. VAT

14

WHEEL CARRIER

1543023

Not Available

15

WASHER THRUST

7555787

$10,49 Unit Price incl. VAT

16

SPRING RH TORS(.421DIA) (.421) Med.

7041462067

$209,99 Unit Price incl. VAT

16

SPRING LH TORS(.406DIA) (.406) Std.

7041463067

Not Available

16

SPRING RH TORS(.406DIA) (.406) Std.

7041464067

Not Available

16

SPRING LH TORS(.421DIA) (.421) Med.

7041461067

Not Available

17

SLEEVE TORSION SPRING

5431923

$11,54 Unit Price incl. VAT

18

CLIP PUSH ON

7080394

$4,19 Unit Price incl. VAT

19

ROLLER SPRING ADJ.

5431168

Not Available

20

SCR-5/16-18X1-HX/FLG-GR5-Y

7515307

$7,34 Unit Price incl. VAT

21

WASHER-.328X1.25X16GA FL-Y

7555716

$3,14 Unit Price incl. VAT

22

STRAP LIMITER (RR QA)

5411061

Not Available

23

BUSHING PIVOT TUBE

5020561

$2,61 Unit Price incl. VAT

24

NUT FLEXLOC

7542411

$6,29 Unit Price incl. VAT

25

WASHER WAVE SPRING(10)

7555795

$2,09 Unit Price incl. VAT

26

SPACER

5333420

$19,20 Unit Price incl. VAT

27

ROD SHOCK

1541015067

Not Available

28

SCR-3/8-24X3 3/4 HX CP GR5-Y

7515472

$4,19 Unit Price incl. VAT

29

NUT FLEX-LOC(10)

7542303

$11,54 Unit Price incl. VAT

30

BUSHING

5430537

$7,34 Unit Price incl. VAT

31

BUSHING R.SHOCK

5333030

Not Available

32

SCR-HH-5/16-18X1.75 GR5 ZY3

7512329

$7,34 Unit Price incl. VAT

33

SHOCK GAS ADJ R.TRACK

7041441

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
