Parts Catalog
REAR BRAKE/FOOT PEDAL
5

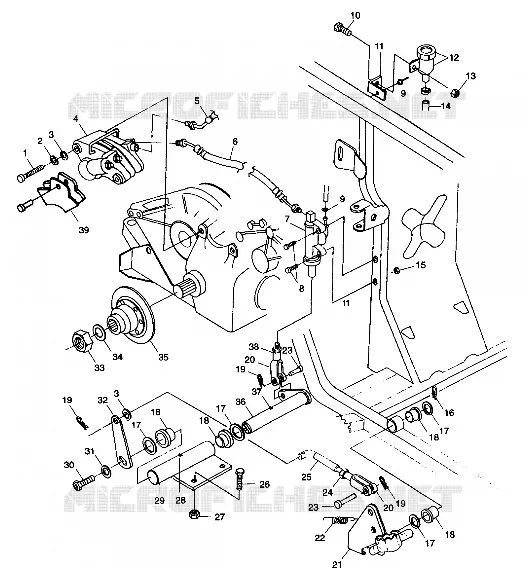

Parts Diagram
Parts Catalog
REAR SUSPENSION
by
REAR BRAKE/FOOT PEDAL
REAR BRAKE/FOOT PEDAL
1
BOLT(10)
7515497
$7,34 Unit Price incl. VAT
2
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
3
WASHER
7555806
$1,56 Unit Price incl. VAT
4
CALIPER ASM BRAKE WWOOD 4X4 Substituted by 1910366
1930818
$488,24 Unit Price incl. VAT
5
LINE R.BRAKE WWOOD
1930853
Not Available
6
LINE BRAKE CALIPER W/FTNGS.
1930851
Not Available
7
MASTER CYL.ASM R.BRAKE
1930819
Not Available
8
SCREW-1/4-20x3/4 BH TRX GR5-Z
7515177
$5,76 Unit Price incl. VAT
9
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
10
BOLT(10) Substituted by 7512240
7512111
$7,34 Unit Price incl. VAT
11
DESC NOT_AVAILABLE
5242677
Not Available
12
Reservoir Brake Rear
1930854
$68,24 Unit Price incl. VAT
13
NUT NYLOK FLANGED 1/4 [INTL]
7542153
$3,14 Unit Price incl. VAT
14
HOSE RESERVOIR 1/4#ID
1930855
Not Available
15
RIVNUT(10)
7542130
$11,01 Unit Price incl. VAT
16
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
17
WASHER-.510X.840X.031 Y
7555919
$7,34 Unit Price incl. VAT
18
BUSHING-PEDAL PIVOT
5431107
$16,79 Unit Price incl. VAT
19
PIN COTTER(10)
7661011
$9,44 Unit Price incl. VAT
20
CLEVIS THREADED
7080644
Not Available
21
BRAKE FOOT BLACK
1910255067
Not Available
22
SPRING EXHAUST(10)
7042031
7041687
$12,59 Unit Price incl. VAT
23
PIN-CLEVIS 1/4 X 3/4 -Y
7661843
$4,19 Unit Price incl. VAT
24
NUT(10)
7542129
$9,44 Unit Price incl. VAT
25
ROD BRAKELINK.WWOOD (Incl. 20 24 25)
1910254
Not Available
25
ROD BRAKE
5224805
Not Available
26
BOLT
7512539
$7,34 Unit Price incl. VAT
27
NUT NYLOCK(10)
7542525
$9,44 Unit Price incl. VAT
28
DESC NOT_AVAILABLE
5131765
Not Available
29
MT PIVOT RR BRAKE BLK
1040612067
Not Available
30
SCR-1/4-20X5/8 TXTR GR5 P-5-Y
7515148
$9,44 Unit Price incl. VAT
31
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
32
LEVER LINKAGE LONG
5211839
Not Available
33
NUT NYLOC
7547046
$10,49 Unit Price incl. VAT
34
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
35
DISC ASM BRAKE (Swed)
1910279
Not Available
35
DISC ASM BRAKE
1910188
Not Available
36
LINKAGE BRAKE
1910256
Not Available
37
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
38
PLUNGER BRAKE
5020941
Not Available
38
PLUNGER ASM R.BRAKE (Incl. 20 24 38)
1910258
Not Available
39
KIT BRAKEPAD WW REAR
2201093
Not Available
