1
Engine displacement
850
2
Year
2011
3
Trim
SPORTSMAN X2 850 - A11TN85AA
4
Parts Catalog

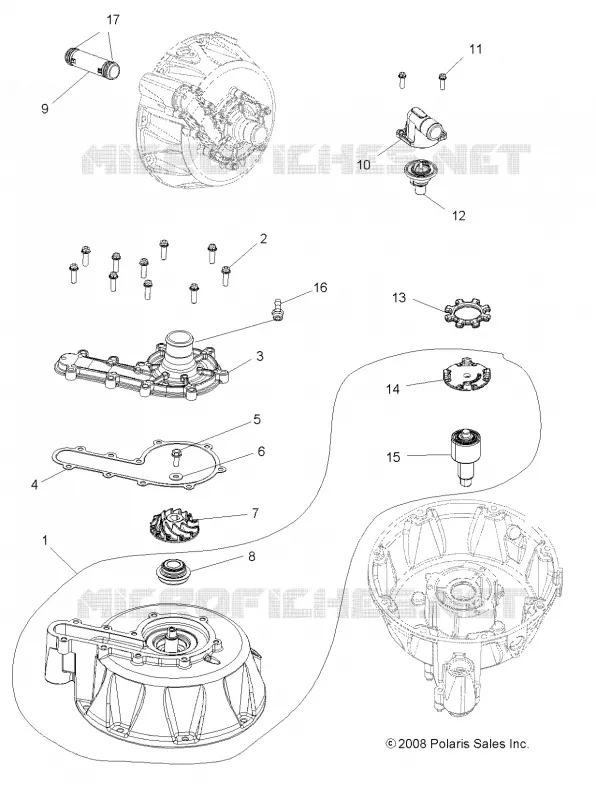

COOLING SYSTEM AND WATER PUMP
5
Parts Diagram
Parts Catalog
COOLING BYPASS
by
CRANKCASE
COOLING SYSTEM AND WATER PUMP
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Asm. Stator Cover w/Water Pump [Incl. 2-8 14 15 Retainer Stator Wire Stator Cover Stator Fitting]]
1204236
Not Available
1
Kit Cover Stator w/Water Pump [Incl. 8 14 15]
2203939
Not Available
2
SCREW
7518855
7527861
$5,24 Unit Price incl. VAT
3
COVER WATER PUMP W/BP [INCL. COVER FITTING GASKET]
5137326
5144074
$125,99 Unit Price incl. VAT
4
GASKET COVER
5412954
$57,74 Unit Price incl. VAT
5
BOLT
7518854
7527860
$5,24 Unit Price incl. VAT
6
WASHER FLAT
7556451
7556094
$9,44 Unit Price incl. VAT
7
IMPELLER WATER PUMP CAST
5632427
$78,74 Unit Price incl. VAT
8
SEAL
3610136
$131,24 Unit Price incl. VAT
9
TUBE WATER TRANSFER
5334925
$157,49 Unit Price incl. VAT
10
Cover Thermostat
5631954
5632606
$83,99 Unit Price incl. VAT
11
SCREW-HXFL-M6X1.0X20 8.8 ZY3
7518576
$6,29 Unit Price incl. VAT
12
Thermostat
7052445
7052561
$83,99 Unit Price incl. VAT
13
Coupler Insert
5413433
Not Available
14
Coupler Water Pump Bearing
5136306
Not Available
15
BEARING W/SHAFT
3514633
Not Available
16
FITTING
7052463
$17,84 Unit Price incl. VAT
17
O-RING .864X1.00X.07
5412955
$13,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
