1
Engine displacement
570
2
Year
2016
3
Trim
ace-570-efi-hd
4
Parts Catalog
REAR BODYWORK RACK AND FENDERS
5
Parts Diagram
Parts Catalog
HOOD AND FRONT BODY WORK
by
SEAT ASM.

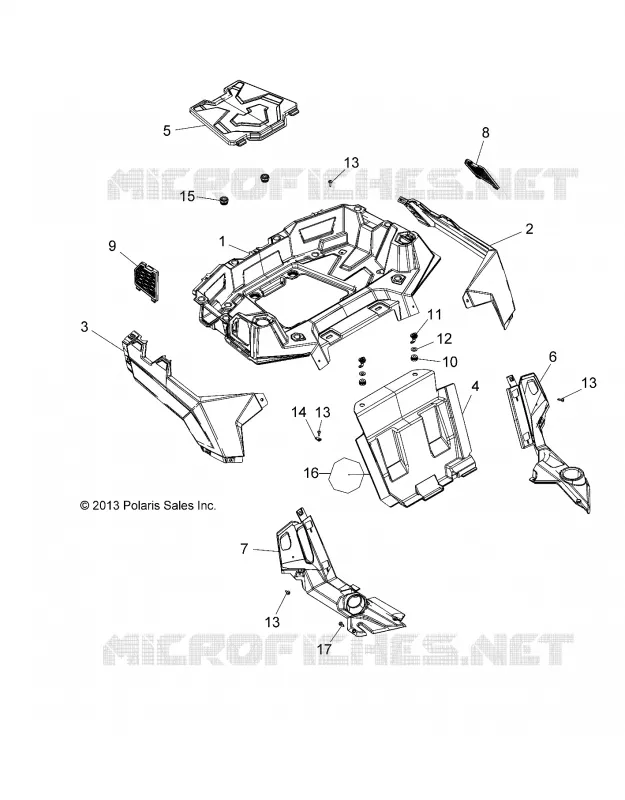

REAR BODYWORK RACK AND FENDERS
1
2
3
4
5
6
7
8
9
10
11
12
13
13
13
13
14
15
16
17
1
BOX CARGO REAR BLACK
5450078070
Not Available
2
FENDER-REAR LH S.GREEN HDPE [N1]
5450076498
Not Available
3
FENDER-REAR RH.S.GREEN HDPE [N1]
5450077498
$188,99 Unit Price incl. VAT
4
PANEL CLOSE OFF BLACK
5450079070
$209,99 Unit Price incl. VAT
5
BOX MAINT PANEL REMOVABLE BLACK
5450080070
$141,74 Unit Price incl. VAT
6
PANEL UNDERSEAT COVER LH BLACK
5450299070
$110,24 Unit Price incl. VAT
7
PANEL UNDERSEAT COVER RH BLACK
5450589070
$115,49 Unit Price incl. VAT
8
GRILL INTAKE COVER LH BLACK
5450392070
$83,99 Unit Price incl. VAT
9
GRILL INTAKE COVER RH BLACK
5450393070
$83,99 Unit Price incl. VAT
10
GROMMET-LATCH
5413428
$6,29 Unit Price incl. VAT
11
LATCH 1/4 TURN
7081730
$10,49 Unit Price incl. VAT
12
WASHER-.510X.840X.031 Y
7555919
$7,34 Unit Price incl. VAT
13
SCR-TXTH-M6X1.0X25 ZFB
7519650
$7,34 Unit Price incl. VAT
14
NUT-M6-1.0 U-TYPE (2.5-3.8)
7547674
$2,09 Unit Price incl. VAT
15
GROMMET
5412507
$12,59 Unit Price incl. VAT
16
FOIL TANK RES SUMP
5813858
$56,98 Unit Price incl. VAT
17
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
